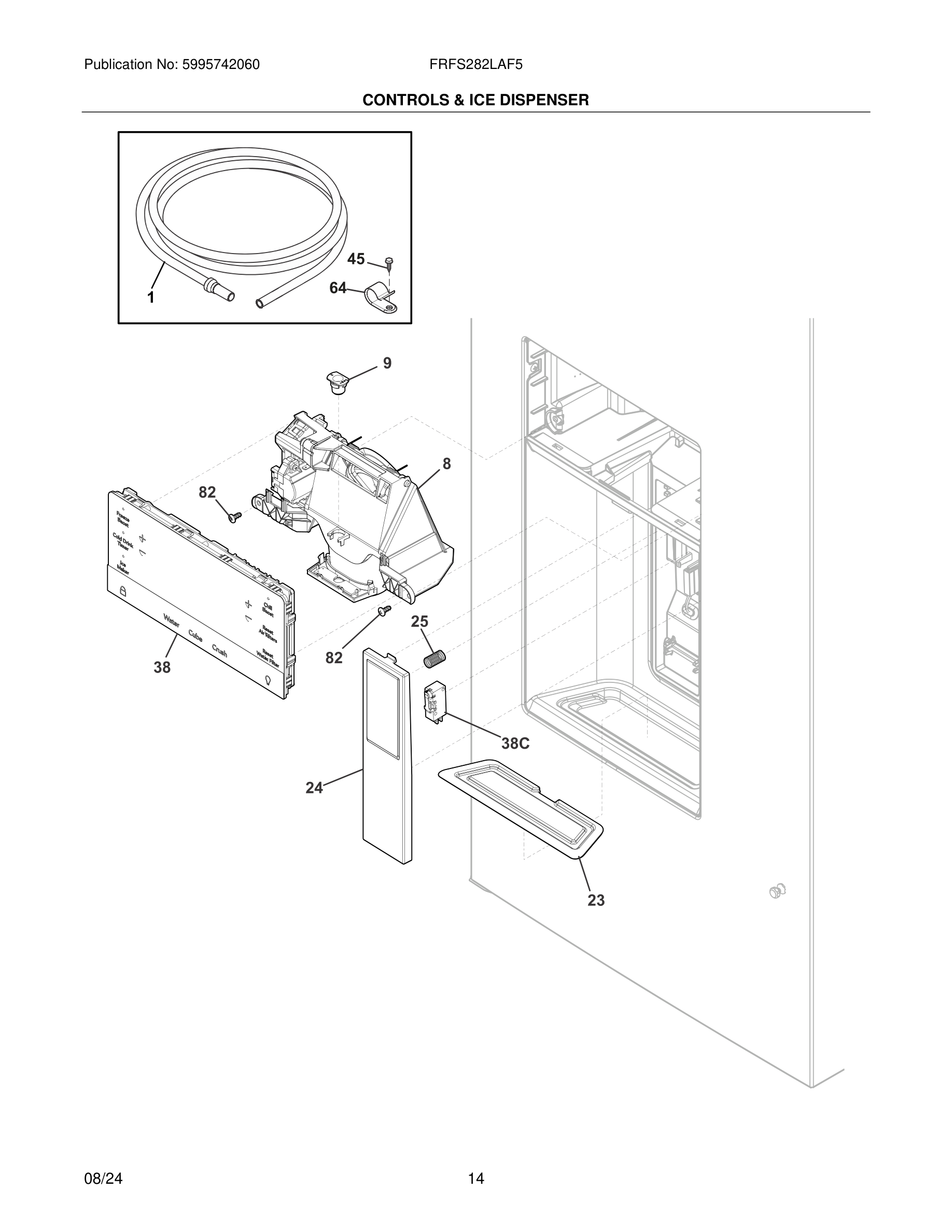

FRFS282LAF5 15 – CONTROLS & ICE DISPENSER

Products

Position	Product
*#	5304530940 Frigidaire Refrigerator Harness
*#	241510904 Frigidaire Refrigerator Dispenser Harness
1#	218976448 Frigidaire Water Line Hose
1*	242200102 Frigidaire Refrigerator Clip
1*	241806601 Frigidaire Refrigerator Water Connector
8#	5304533221 Frigidaire I&W Module Assembly
9	GUIDE-WATER TUBE, 9
23	5304527042 Frigidaire Drip Tray
24	5304530909 Frigidaire Actuator
25	5304519199 Frigidaire Refrigerator Spring
38C#	241870104 Frigidaire Switch
38#	5304530931 Frigidaire Refrigerator Assembly Control
45	5303307980 Frigidaire Oven Screw
64	240396801 Frigidaire Refrigerator Tube Clamp
82	241953902 Frigidaire Refrigerator Screw
