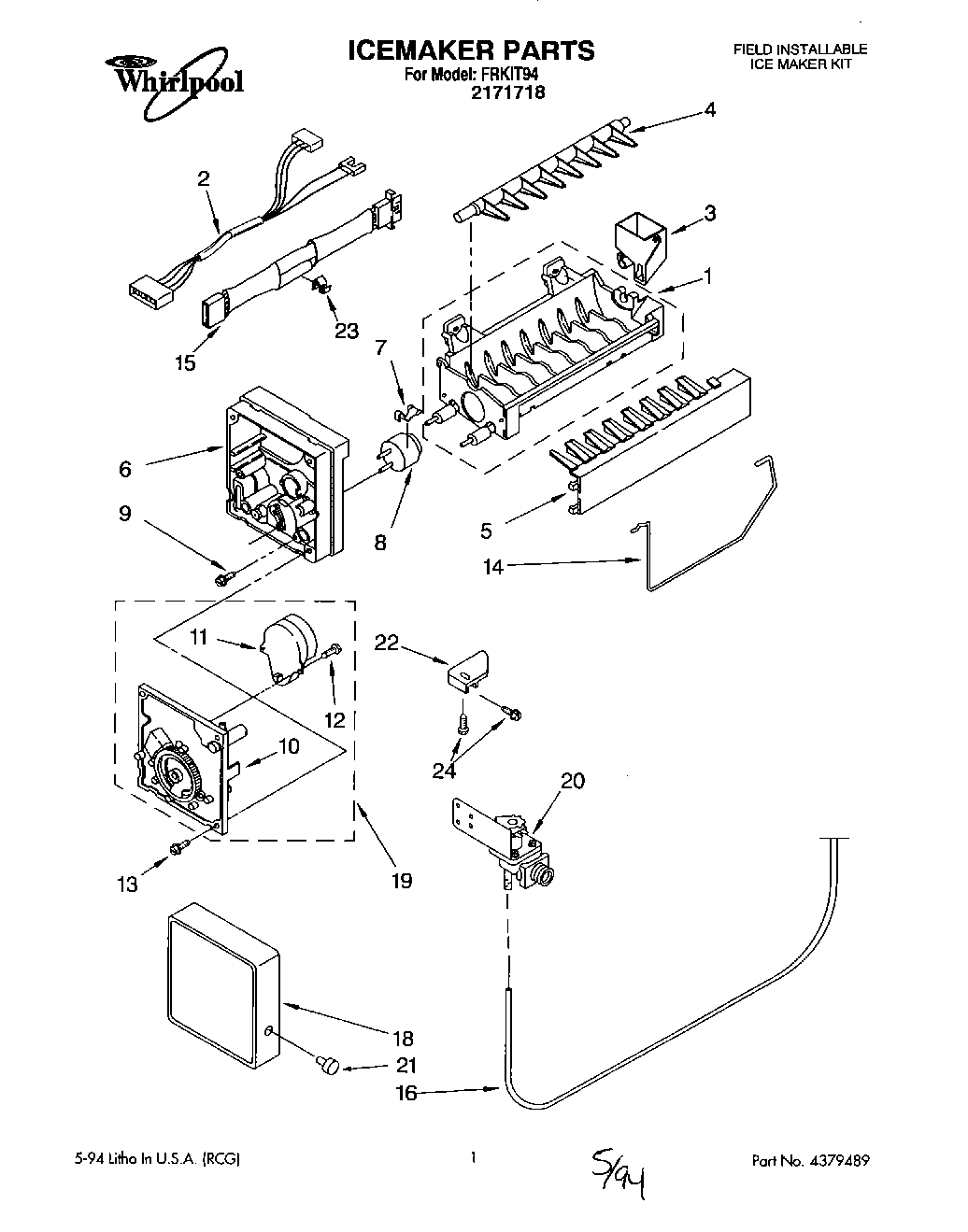

FRKIT94 01 – SECTION

Products

Position	Product
	Instruction Booklet
	Modular Icemaker Service Sheet
1	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2	Wiring Harness
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	Cement Alumilastic)
8	WP627985 Whirlpool Icemaker Cycling Thermostat
9	8533917 Whirlpool Refrigerator Screw
11	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
12	489136 Whirlpool Refrigerator Screw
13	WP681249 Whirlpool Screw Assembly
14	WP627792 Whirlpool Refrigerator Shut Off Arm
15	WP2187464 Whirlpool Refrigerator Wire Harness
16	Tube, Inlet
18	WPW10289690 Whirlpool Ice Maker Cover
20	Valve, Solenoid
21	Knob, Water
22	W11500948 Whirlpool Refrigerator Bracket
23	WP628379 Whirlpool Refrigerator Clip
24	Accessory Bag Assembly
24	PAN-ICE
24	WP489478 Whirlpool Refrigerator Screw
24	Trim Ice Cube Pan
