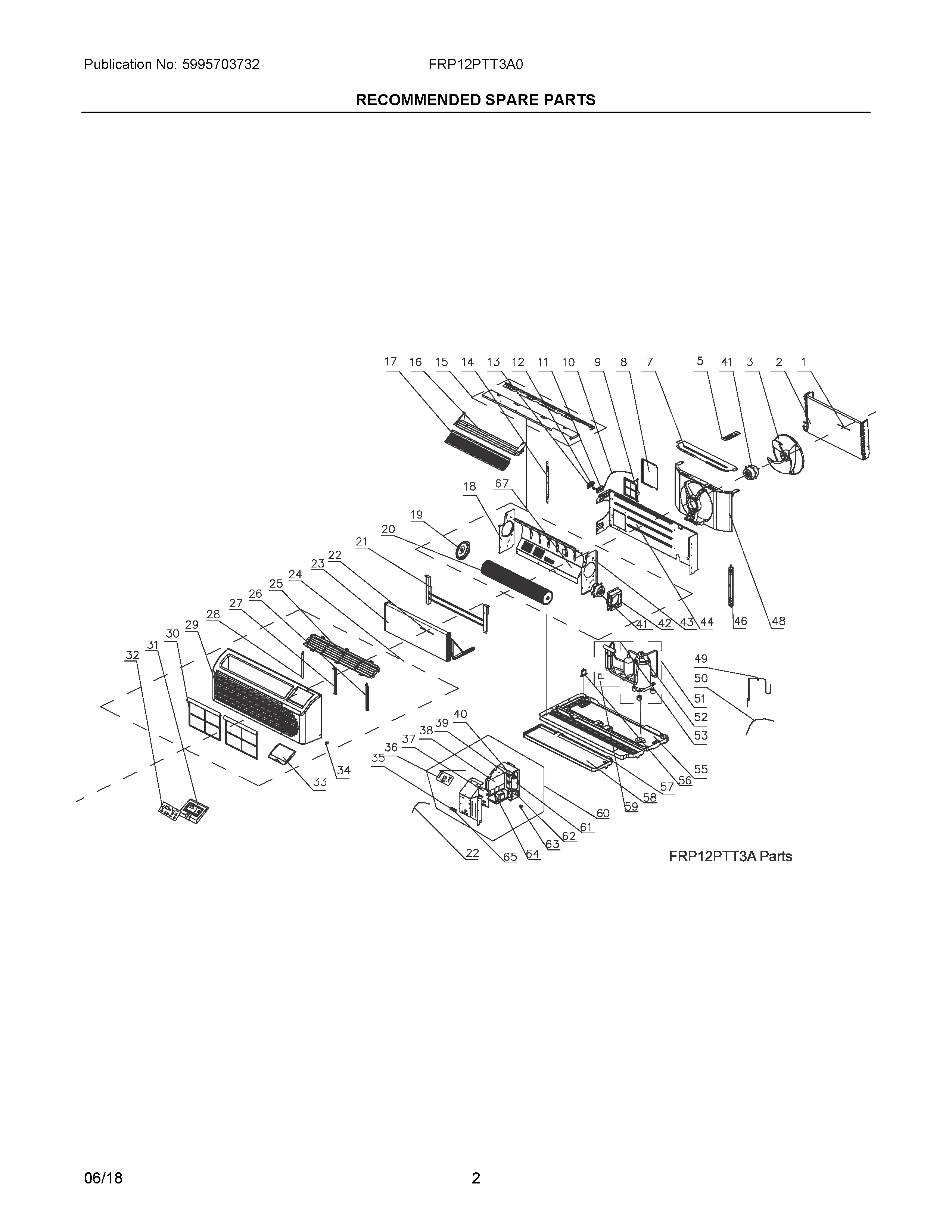

FRP12PTT3A0 02 – RECOMMENDED SPARE PARTS

FRP12PTT3A0 02 – RECOMMENDED SPARE PARTS

Written by

in

FRP12PTT3A0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
15304483971 Frigidaire Air Conditioner Sensor
2WCI 5304511516
35304483797 Frigidaire Air Conditioner Fan Blade
5SUPPORT, SHROUD/BULKHEAD, PLATE
7COVER, SHROUD, CONDENSER FAN
8DOOR, VENT COVER, AIR INLET
95304525606 Frigidaire Filter
10CONTROL ARM, LINKAGE, VENT DOOR
11COVER, LEVER, LOWER
12LEVER, HANDLE
13COVER, LEVER, UPPER
14SUPPORT, BULKHEAD, OUTER LEFT
15COVER, BLOWER ASSY, TOP PLATE
16DIFFUSER, AIR VENT, EVAP COVER
17GRILLE, EVAP DISCHARGE, REAR
18PANEL, BLOWER ASSY, LEFT SIDE
19HOUSING, BEARING BLOCK
205304483810 Frigidaire Air Conditioner Blower Wheel Assembly
215304485177 Frigidaire Air Conditioner Heater
225304483795 Frigidaire Air Conditioner Sensor
235304483981 Frigidaire Air Conditioner Evaporator
24WCI 5304511517
255304483944 Frigidaire Air Conditioner Grill
26TRACK 1, FILTER, RIGHT SIDE
27TRACK 2, FILTER, CENTER
28TRACK 3, FILTER, LEFT SIDE
295304483945 Frigidaire Air Conditioner Panel
305304525609 Frigidaire Air Conditioner Filter
31FRAME, CONTROL PANEL, LCD COVER
325304483948 Frigidaire CONTROL-ELECTRICAL
335304483961 Frigidaire Air Conditioner Cover
34CLIP, MOUNTING, FRONT PANEL
355304483970 Frigidaire Air Conditioner Terminal
365304483952 Frigidaire Air Conditioner PC Board
375304485180 Frigidaire Air Conditioner PC Board
385304483972 Frigidaire Air Conditioner PC Board
395304510668 Frigidaire Capacitor
405304508682 Frigidaire Air Conditioner Capacitor
41MOTOR, BLOWER, INSIDE
42BRACKET, MOTOR SUPPORT
43WCI 5304483808
44WCI 5304484089
46SUPPORT, BULKHEAD, OUTER RIGHT
48SHROUD, CONDENSER/FAN
49WCI 5304511518
505304485187 Frigidaire Power Cord
51WCI 5304511520
52WCI 5304511522
53WCI 5304511534
55WCI 5304483964
56VALVE, DRAIN
57WCI 5304483965
58WCI 5304483966
59COIL
60WCI 5304511535
61WCI 5304503727
625304459674 Frigidaire Air Conditioner Terminal Block
635304484110 Frigidaire Air Conditioner Heat Sink
64TRANSFORMER
655304483950 Frigidaire Air Conditioner Connector
67WCI 5304484567
