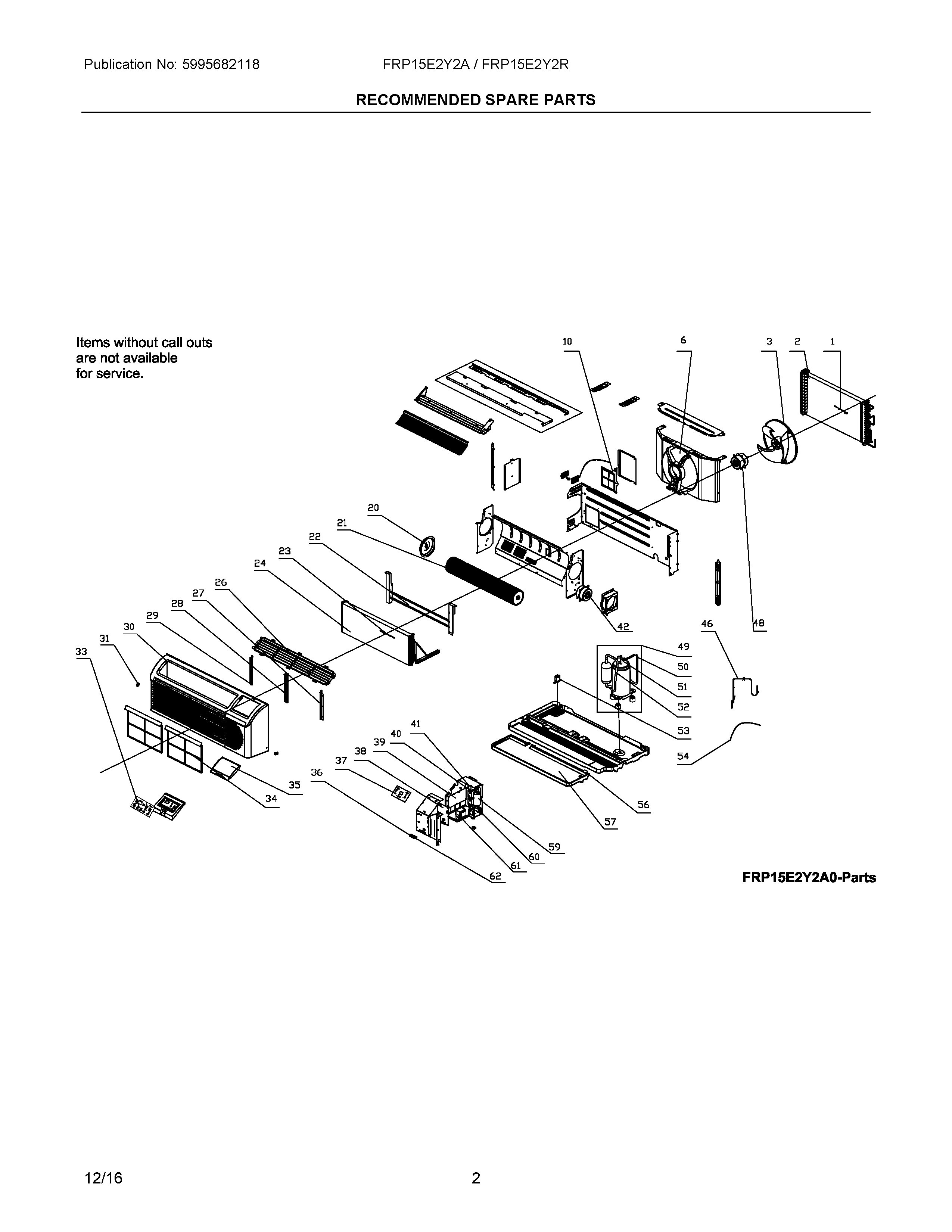

FRP15E2Y2A0 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	5304483971 Frigidaire Air Conditioner Sensor
2	WCI 5304503719
3	5304483797 Frigidaire Air Conditioner Fan Blade
6	SHROUD, CONDENSER/FAN
10	5304525606 Frigidaire Filter
20	HOUSING, BEARING BLOCK
21	5304483810 Frigidaire Air Conditioner Blower Wheel Assembly
22	HEATER, ELECTRIC
23	5304459793 Frigidaire Air Conditioner Thermistor
24	5304483981 Frigidaire Air Conditioner Evaporator
26	5304483944 Frigidaire Air Conditioner Grill
27	TRACK 1, FILTER, RIGHT SIDE
28	TRACK 2, FILTER, CENTER
29	TRACK 3, FILTER, LEFT SIDE
30	5304483945 Frigidaire Air Conditioner Panel
31	CLIP, MOUNTING, FRONT PANEL
33	5304483948 Frigidaire CONTROL-ELECTRICAL
34	5304525609 Frigidaire Air Conditioner Filter
35	5304483961 Frigidaire Air Conditioner Cover
36	5304483970 Frigidaire Air Conditioner Terminal
37	5304483952 Frigidaire Air Conditioner PC Board
38	5304483953 Frigidaire Air Conditioner PCB
39	5304483954 Frigidaire Air Conditioner PC Board
40	5304508681 Frigidaire Air Conditioner Capacitor
41	5304508682 Frigidaire Air Conditioner Capacitor
42	WCI 5304483960
46	WCI 5304484831
48	WCI 5304483888
49	WCI 5304484832
50	WCI 5304484833
51	WCI 5304484834
52	WCI 5304484835
53	VALVE, DRAIN
54	5304483963 Frigidaire Air Conditioner Power Cord
56	WCI 5304483965
57	WCI 5304483966
59	WCI 5304508683
60	5304459674 Frigidaire Air Conditioner Terminal Block
61	5304483969 Frigidaire TRANSFORMER
62	5304483950 Frigidaire Air Conditioner Connector
