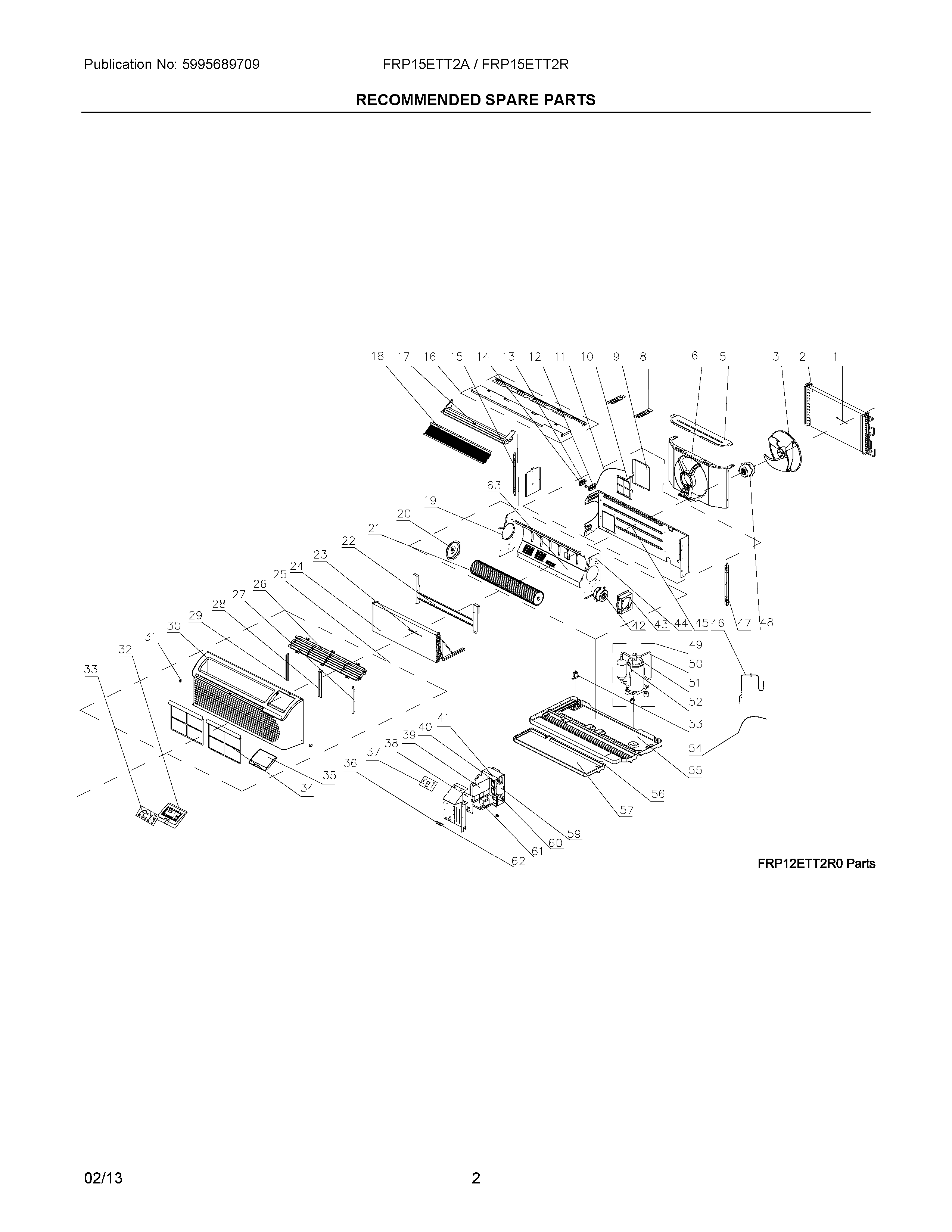

FRP15ETT2R0 02 – RECOMMENDED SPARE PARTS

FRP15ETT2R0 02 – RECOMMENDED SPARE PARTS

Written by

in

FRP15ETT2R0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
NI5304490403 Frigidaire Air Conditioner Filter Drier
15304483971 Frigidaire Air Conditioner Sensor
2CONDENSER
35304483797 Frigidaire Air Conditioner Fan Blade
5COVER, SHROUD, CONDENSER FAN
6SHROUD, CONDENSER/FAN
8SUPPORT, SHROUD/BULKHEAD, PLATE
9DOOR, VENT COVER, AIR INLET
105304525606 Frigidaire Filter
11CONTROL ARM, LINKAGE, VENT DOOR
12COVER, LEVER, LOWER
13LEVER, HANDLE
14COVER, LEVER, UPPER
15SUPPORT, BULKHEAD, OUTER LEFT
16COVER, BLOWER ASSY, TOP PLATE
17DIFFUSER, AIR VENT, EVAP COVER
18GRILLE, EVAP DISCHARGE, REAR
19PANEL, BLOWER ASSY, LEFT SIDE
20HOUSING, BEARING BLOCK
215304483810 Frigidaire Air Conditioner Blower Wheel Assembly
22HEATER, ELECTRIC
235304459793 Frigidaire Air Conditioner Thermistor
245304483981 Frigidaire Air Conditioner Evaporator
25FRONT ASSEMBLY, COMPLETE PANEL
265304483944 Frigidaire Air Conditioner Grill
27TRACK 1, FILTER, RIGHT SIDE
28TRACK 2, FILTER, CENTER
29TRACK 3, FILTER, LEFT SIDE
305304483945 Frigidaire Air Conditioner Panel
31CLIP, MOUNTING, FRONT PANEL
32FRAME, CONTROL PANEL, LCD COVER
335304483948 Frigidaire CONTROL-ELECTRICAL
345304525609 Frigidaire Air Conditioner Filter
355304483961 Frigidaire Air Conditioner Cover
365304483970 Frigidaire Air Conditioner Terminal
375304483952 Frigidaire Air Conditioner PC Board
38PC BOARD, PROCESSOR, LOW VOLTAGE
395304483954 Frigidaire Air Conditioner PC Board
40CAPACITOR, BLOWER FAN
41CAPACITOR, FAN MOTOR, CONDENSER
43BRACKET, MOTOR SUPPORT
44WCI 5304483808
45WCI 5304484089
46WCI 5304484831
47WCI 5304484815
48WCI 5304483960
48WCI 5304483888
49WCI 5304484832
50WCI 5304484833
51WCI 5304484834
52WCI 5304484835
53WCI 5304459477
54WCI 5304484836
55WCI 5304484837
56WCI 5304483965
57WCI 5304483966
59WCI 5304459757
605304459674 Frigidaire Air Conditioner Terminal Block
615304483969 Frigidaire TRANSFORMER
625304483950 Frigidaire Air Conditioner Connector
63WCI 5304484567
