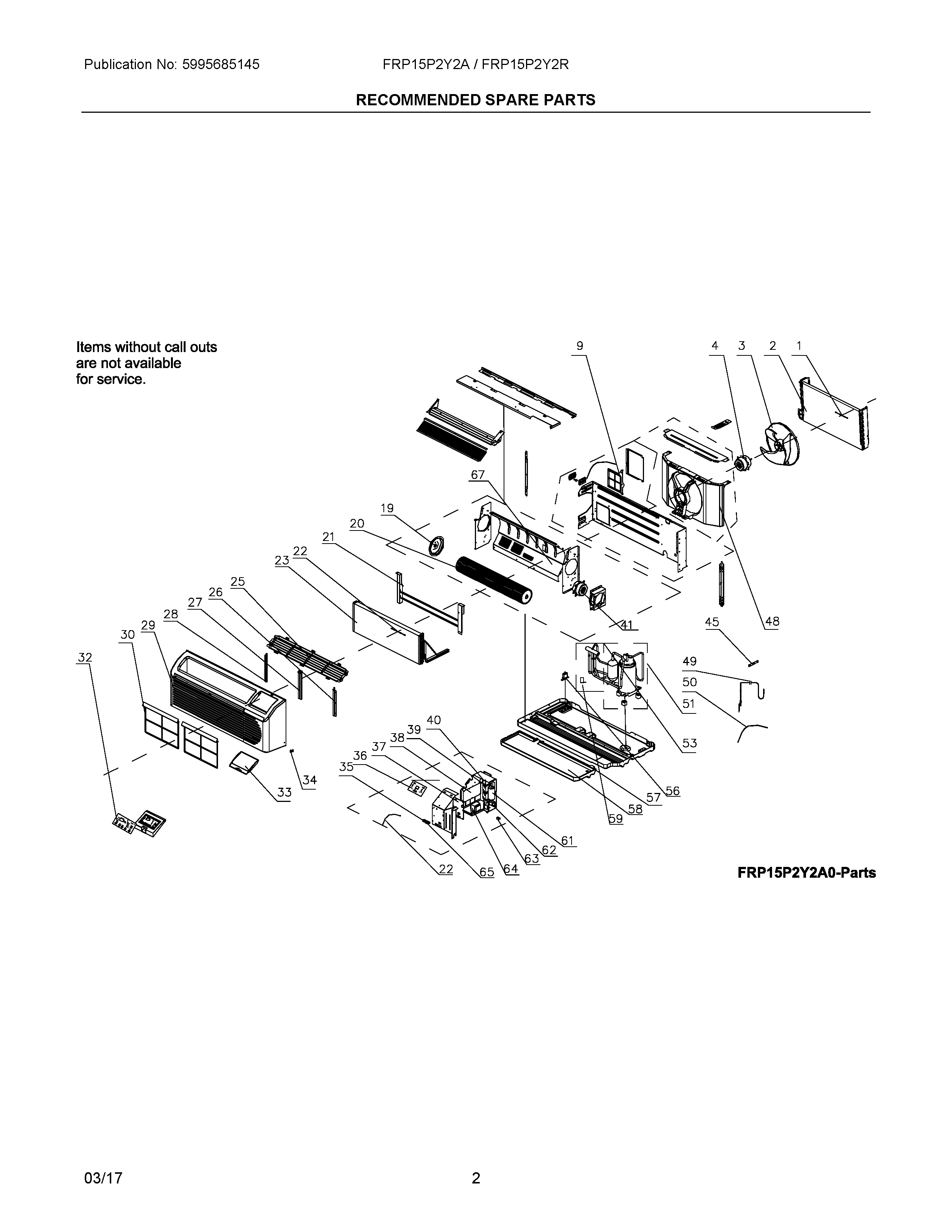

FRP15P2Y2A0 02 – RECOMMENDED SPARE PARTS

FRP15P2Y2A0 02 – RECOMMENDED SPARE PARTS

Written by

in

FRP15P2Y2A0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
15304483971 Frigidaire Air Conditioner Sensor
2WCI 5304503719
35304483797 Frigidaire Air Conditioner Fan Blade
45304503720 Frigidaire Air Conditioner Motor
95304525606 Frigidaire Filter
19HOUSING, BEARING BLOCK
205304483810 Frigidaire Air Conditioner Blower Wheel Assembly
21HEATER, ELECTRIC
225304483795 Frigidaire Air Conditioner Sensor
23EVAPORATOR
255304483944 Frigidaire Air Conditioner Grill
26TRACK 1, FILTER, RIGHT SIDE
27TRACK 2, FILTER, CENTER
28TRACK 3, FILTER, LEFT SIDE
295304483945 Frigidaire Air Conditioner Panel
305304525609 Frigidaire Air Conditioner Filter
325304483948 Frigidaire CONTROL-ELECTRICAL
335304483961 Frigidaire Air Conditioner Cover
34CLIP, MOUNTING, FRONT PANEL
355304483970 Frigidaire Air Conditioner Terminal
365304483952 Frigidaire Air Conditioner PC Board
375304483953 Frigidaire Air Conditioner PCB
385304483972 Frigidaire Air Conditioner PC Board
395304508681 Frigidaire Air Conditioner Capacitor
405304508682 Frigidaire Air Conditioner Capacitor
41WCI 5304483960
45VALVE, 1-WAY
48SHROUD, CONDENSER/FAN
49TUBE, CAPILLARY
505304483963 Frigidaire Air Conditioner Power Cord
51COMPRESSOR, WITH OVERLOAD
53VALVE ASSEMBLY, 4-WAY
56VALVE, DRAIN
57WCI 5304483965
58WCI 5304483966
59COIL, 4-WAY VALVE, MAGNETIC
61WCI 5304503727
625304459674 Frigidaire Air Conditioner Terminal Block
635304484110 Frigidaire Air Conditioner Heat Sink
645304483969 Frigidaire TRANSFORMER
655304483950 Frigidaire Air Conditioner Connector
67WCI 5304484567
