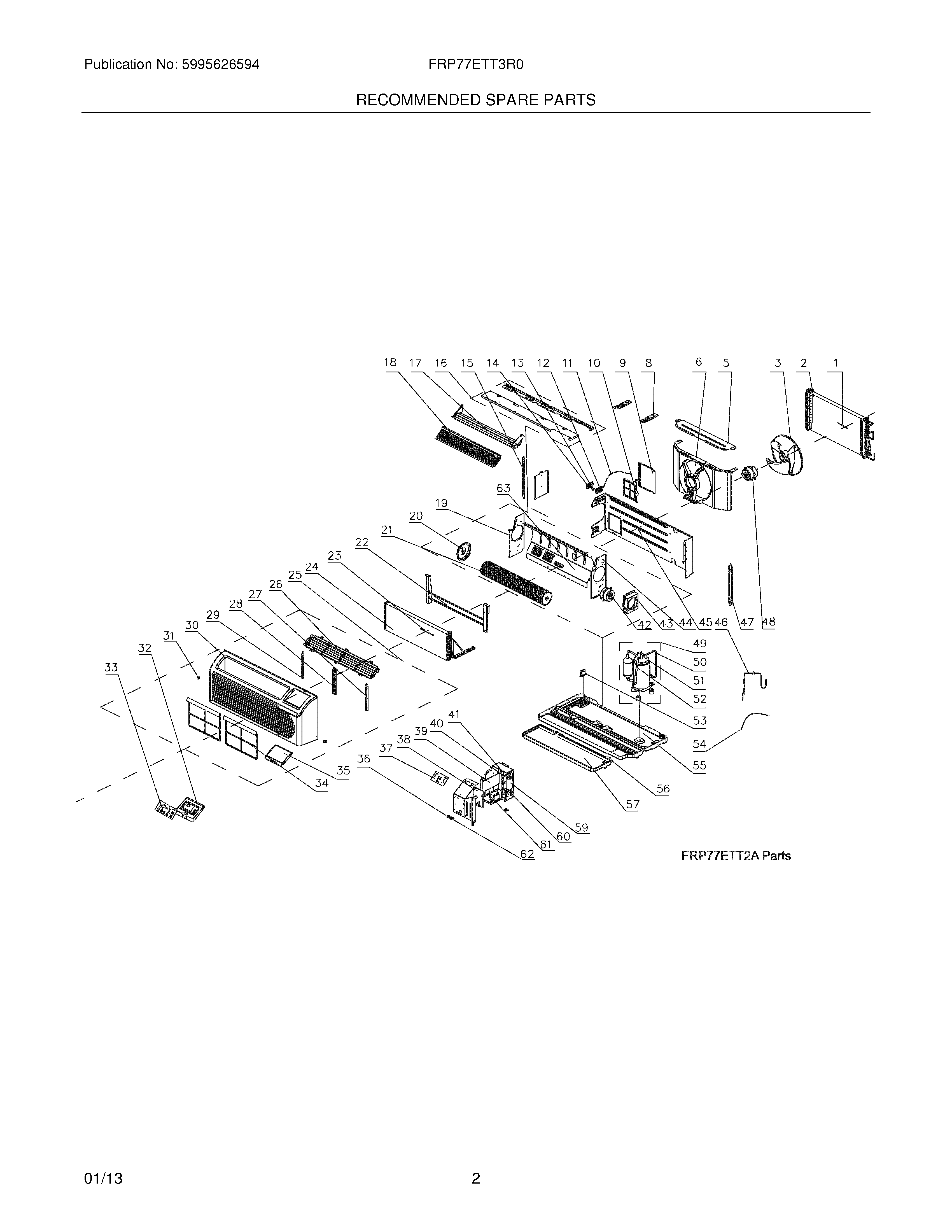

FRP77ETT3R0 03 – RECOMMENDED SPARE PARTS

FRP77ETT3R0 03 – RECOMMENDED SPARE PARTS

Written by

in

FRP77ETT3R0 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
NI5304490403 Frigidaire Air Conditioner Filter Drier
15304483971 Frigidaire Air Conditioner Sensor
2WCI 5304484811
35304483797 Frigidaire Air Conditioner Fan Blade
5COVER, SHROUD, CONDENSER FAN
6SHROUD, CONDENSER/FAN
8SUPPORT, SHROUD/BULKHEAD, PLATE
9DOOR, VENT COVER, AIR INLET
105304525606 Frigidaire Filter
11CONTROL ARM, LINKAGE, VENT DOOR
12COVER, LEVER, LOWER
13LEVER, HANDLE
14COVER, LEVER, UPPER
15SUPPORT, BULKHEAD, OUTER LEFT
16COVER, BLOWER ASSY, TOP PLATE
17DIFFUSER, AIR VENT, EVAP COVER
18GRILLE, EVAP DISCHARGE, REAR
19PANEL, BLOWER ASSY, LEFT SIDE
20HOUSING, BEARING BLOCK
215304483810 Frigidaire Air Conditioner Blower Wheel Assembly
225304485177 Frigidaire Air Conditioner Heater
235304459793 Frigidaire Air Conditioner Thermistor
24EVAPORATOR
25FRONT ASSEMBLY, COMPLETE PANEL
265304483944 Frigidaire Air Conditioner Grill
27TRACK 1, FILTER, RIGHT SIDE
28TRACK 2, FILTER, CENTER
29TRACK 3, FILTER, LEFT SIDE
30WCI 5304485179
31CLIP, MOUNTING, FRONT PANEL
32FRAME, CONTROL PANEL, LCD COVER
335304483948 Frigidaire CONTROL-ELECTRICAL
345304525609 Frigidaire Air Conditioner Filter
355304483961 Frigidaire Air Conditioner Cover
365304483970 Frigidaire Air Conditioner Terminal
375304483952 Frigidaire Air Conditioner PC Board
385304485180 Frigidaire Air Conditioner PC Board
395304483954 Frigidaire Air Conditioner PC Board
40CAPACITOR, BLOWER FAN
41WCI 5304485181
42WCI 5304485182
43BRACKET, MOTOR SUPPORT
44WCI 5304483808
45WCI 5304484089
46WCI 5304485183
47WCI 5304484815
48MOTOR, BLOWER, INSIDE
49WCI 5304485185
50WCI 5304484818
51WCI 5304485186
52WCI 5304484820
53WCI 5304459477
545304485187 Frigidaire Power Cord
55WCI 5304484821
56WCI 5304483965
57WCI 5304483966
59WCI 5304484822
605304459674 Frigidaire Air Conditioner Terminal Block
61TRANSFORMER
625304483950 Frigidaire Air Conditioner Connector
63WCI 5304484567
