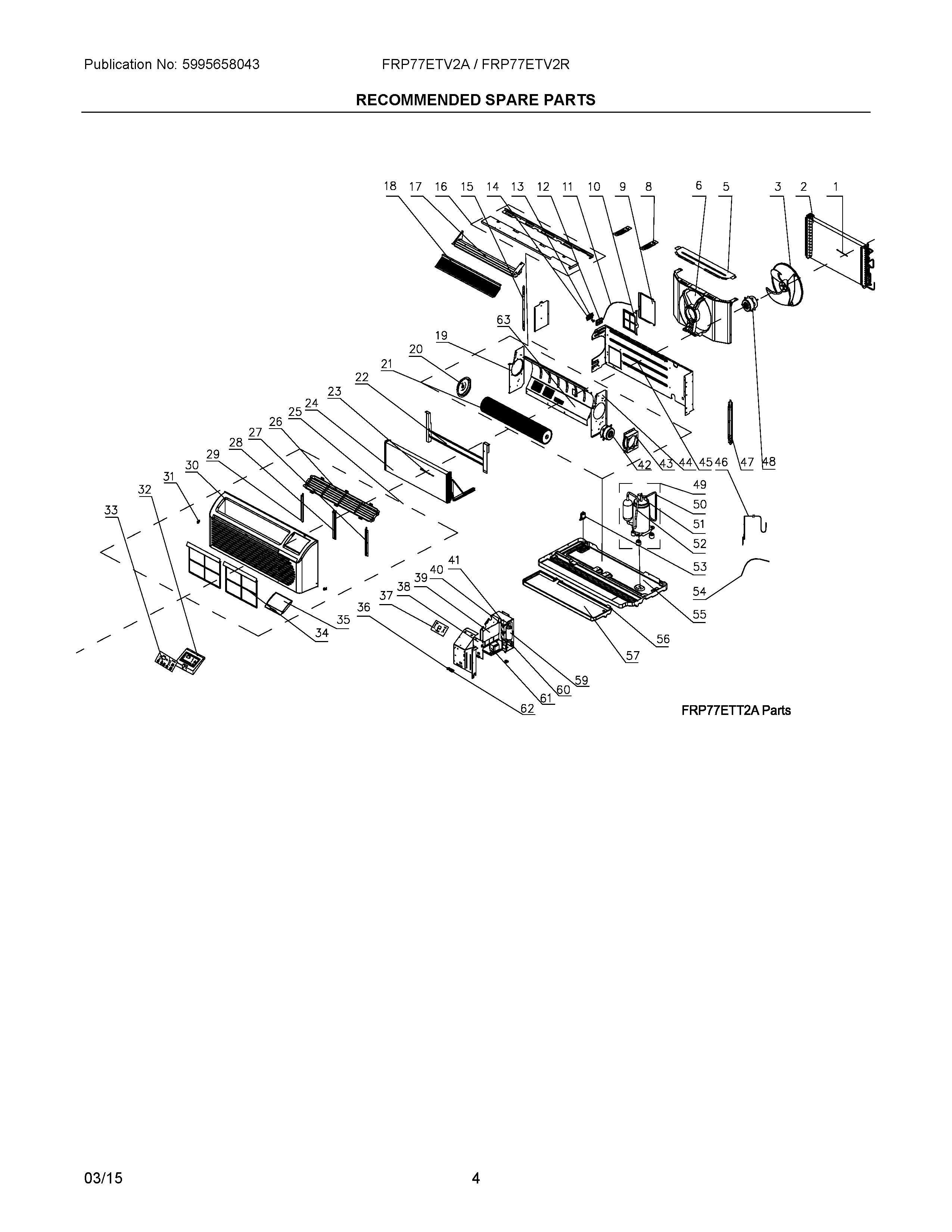

FRP77ETV2A0 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
NI	5304490403 Frigidaire Air Conditioner Filter Drier
1	5304483971 Frigidaire Air Conditioner Sensor
2	WCI 5304484845
3	5304483797 Frigidaire Air Conditioner Fan Blade
5	COVER, SHROUD, CONDENSER FAN
6	SHROUD, CONDENSER/FAN
8	SUPPORT, SHROUD/BULKHEAD, PLATE
9	DOOR, VENT COVER, AIR INLET
10	5304525606 Frigidaire Filter
11	CONTROL ARM, LINKAGE, VENT DOOR
12	COVER, LEVER, LOWER
13	LEVER, HANDLE
14	COVER, LEVER, UPPER
15	SUPPORT, BULKHEAD, OUTER LEFT
16	COVER, BLOWER ASSY, TOP PLATE
17	DIFFUSER, AIR VENT, EVAP COVER
18	GRILLE, EVAP DISCHARGE, REAR
19	PANEL, BLOWER ASSY, LEFT SIDE
20	HOUSING, BEARING BLOCK
21	5304483810 Frigidaire Air Conditioner Blower Wheel Assembly
22	HEATER, ELECTRIC
23	5304459793 Frigidaire Air Conditioner Thermistor
24	EVAPORATOR
25	FRONT ASSEMBLY, COMPLETE PANEL
26	5304483944 Frigidaire Air Conditioner Grill
27	TRACK 1, FILTER, RIGHT SIDE
28	TRACK 2, FILTER, CENTER
29	TRACK 3, FILTER, LEFT SIDE
30	5304483945 Frigidaire Air Conditioner Panel
31	CLIP, MOUNTING, FRONT PANEL
32	FRAME, CONTROL PANEL, LCD COVER
33	5304483948 Frigidaire CONTROL-ELECTRICAL
34	5304525609 Frigidaire Air Conditioner Filter
35	5304483961 Frigidaire Air Conditioner Cover
36	5304483970 Frigidaire Air Conditioner Terminal
37	5304483952 Frigidaire Air Conditioner PC Board
38	5304483953 Frigidaire Air Conditioner PCB
39	5304483954 Frigidaire Air Conditioner PC Board
40	CAPACITOR, BLOWER FAN
41	WCI 5304483983
42	MOTOR, BLOWER, INSIDE
43	BRACKET, MOTOR SUPPORT
44	WCI 5304483808
45	WCI 5304484089
46	WCI 5304484814
47	WCI 5304484815
48	WCI 5304483984
49	WCI 5304484817
50	WCI 5304484818
51	WCI 5304484819
52	WCI 5304484820
53	WCI 5304459477
54	5304483963 Frigidaire Air Conditioner Power Cord
55	WCI 5304484821
56	WCI 5304483965
57	WCI 5304483966
59	WCI 5304484822
60	5304459674 Frigidaire Air Conditioner Terminal Block
61	5304483969 Frigidaire TRANSFORMER
62	5304483950 Frigidaire Air Conditioner Connector
63	WCI 5304484567
