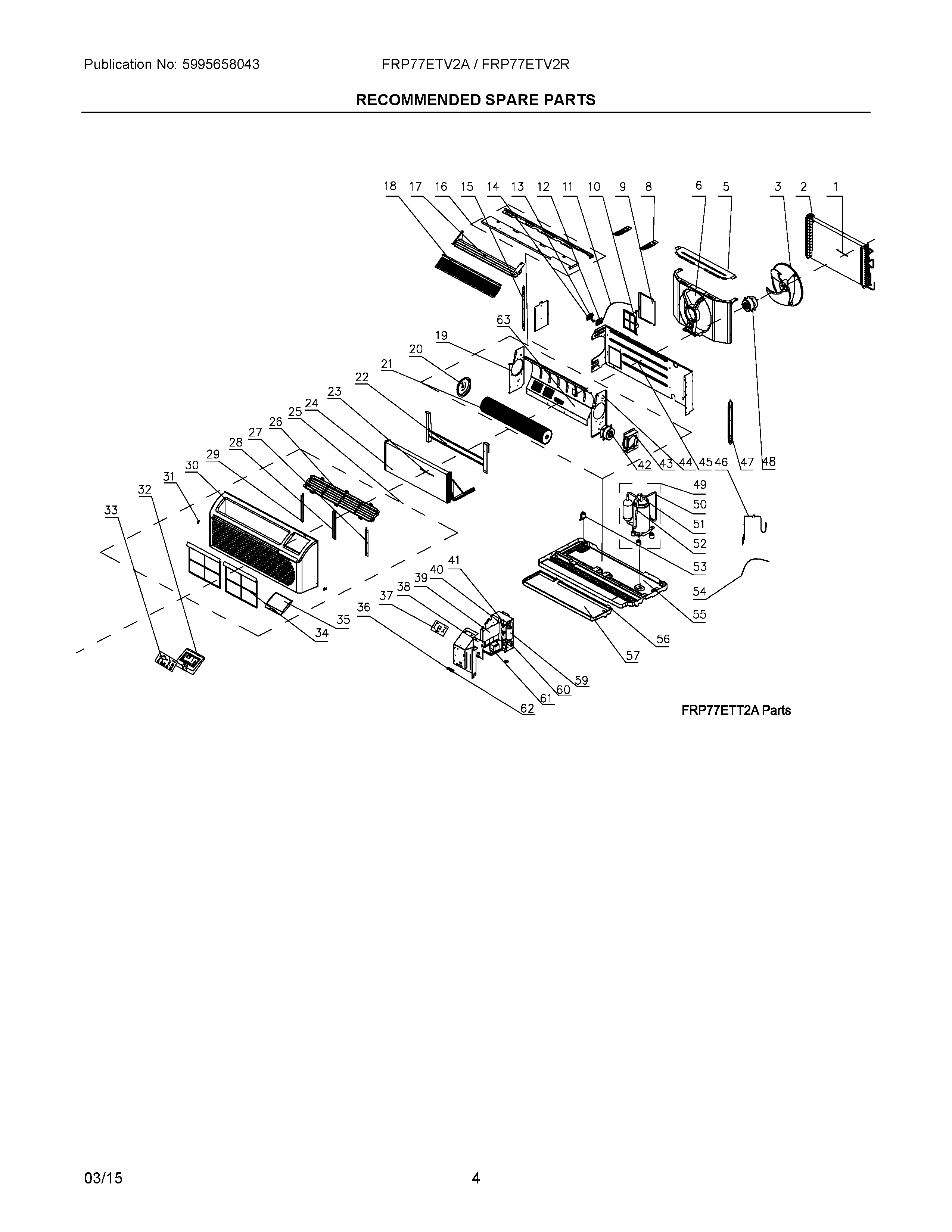

FRP77ETV2R0 02 – RECOMMENDED SPARE PARTS

FRP77ETV2R0 02 – RECOMMENDED SPARE PARTS

Written by

in

FRP77ETV2R0 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
NI5304490403 Frigidaire Air Conditioner Filter Drier
15304483971 Frigidaire Air Conditioner Sensor
2WCI 5304484811
35304483797 Frigidaire Air Conditioner Fan Blade
5COVER, SHROUD, CONDENSER FAN
6SHROUD, CONDENSER/FAN
8SUPPORT, SHROUD/BULKHEAD, PLATE
9DOOR, VENT COVER, AIR INLET
105304525606 Frigidaire Filter
11CONTROL ARM, LINKAGE, VENT DOOR
12COVER, LEVER, LOWER
13LEVER, HANDLE
14COVER, LEVER, UPPER
15SUPPORT, BULKHEAD, OUTER LEFT
16COVER, BLOWER ASSY, TOP PLATE
17DIFFUSER, AIR VENT, EVAP COVER
18GRILLE, EVAP DISCHARGE, REAR
19PANEL, BLOWER ASSY, LEFT SIDE
20HOUSING, BEARING BLOCK
215304483810 Frigidaire Air Conditioner Blower Wheel Assembly
22HEATER, ELECTRIC
235304483795 Frigidaire Air Conditioner Sensor
24EVAPORATOR
25FRONT ASSEMBLY, COMPLETE PANEL
265304483944 Frigidaire Air Conditioner Grill
27TRACK 1, FILTER, RIGHT SIDE
28TRACK 2, FILTER, CENTER
29TRACK 3, FILTER, LEFT SIDE
305304483945 Frigidaire Air Conditioner Panel
31CLIP, MOUNTING, FRONT PANEL
32WCI 5304500777
335304483948 Frigidaire CONTROL-ELECTRICAL
345304525609 Frigidaire Air Conditioner Filter
355304483961 Frigidaire Air Conditioner Cover
365304483970 Frigidaire Air Conditioner Terminal
375304483952 Frigidaire Air Conditioner PC Board
385304483953 Frigidaire Air Conditioner PCB
395304483954 Frigidaire Air Conditioner PC Board
40CAPACITOR, BLOWER FAN
41WCI 5304483983
42MOTOR, BLOWER, INSIDE
43BRACKET, MOTOR SUPPORT
44WCI 5304483808
45WCI 5304484089
46WCI 5304501158
47SUPPORT, BULKHEAD, OUTER RIGHT
48WCI 5304500809
49WCI 5304500779
50WCI 5304500780
51WCI 5304500781
52WCI 5304500782
53VALVE, DRAIN
545304483963 Frigidaire Air Conditioner Power Cord
55WCI 5304483964
56WCI 5304483965
57WCI 5304483966
59WCI 5304484822
605304459674 Frigidaire Air Conditioner Terminal Block
615304483969 Frigidaire TRANSFORMER
625304483950 Frigidaire Air Conditioner Connector
63WCI 5304484567
