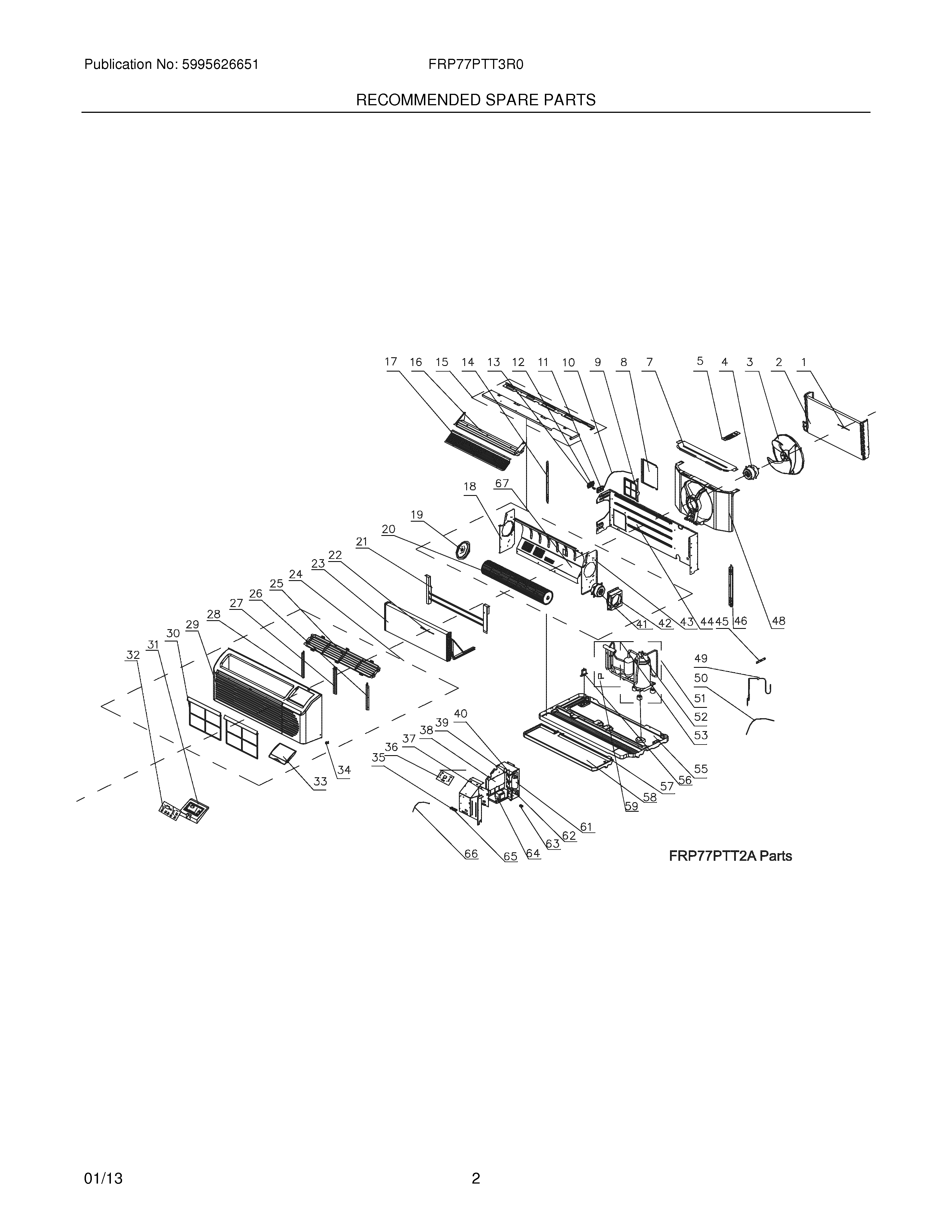

FRP77PTT3R0 03 – RECOMMENDED SPARE PARTS

FRP77PTT3R0 03 – RECOMMENDED SPARE PARTS

Written by

in

FRP77PTT3R0 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
NI5304490403 Frigidaire Air Conditioner Filter Drier
15304483971 Frigidaire Air Conditioner Sensor
2WCI 5304484823
35304483797 Frigidaire Air Conditioner Fan Blade
4WCI 5304485182
5SUPPORT, SHROUD/BULKHEAD, PLATE
7COVER, SHROUD, CONDENSER FAN
8DOOR, VENT COVER, AIR INLET
95304525606 Frigidaire Filter
10CONTROL ARM, LINKAGE, VENT DOOR
11COVER, LEVER, LOWER
12LEVER, HANDLE
13COVER, LEVER, UPPER
14SUPPORT, BULKHEAD, OUTER LEFT
15COVER, BLOWER ASSY, TOP PLATE
16DIFFUSER, AIR VENT, EVAP COVER
17GRILLE, EVAP DISCHARGE, REAR
18PANEL, BLOWER ASSY, LEFT SIDE
19HOUSING, BEARING BLOCK
205304483810 Frigidaire Air Conditioner Blower Wheel Assembly
215304485177 Frigidaire Air Conditioner Heater
225304459793 Frigidaire Air Conditioner Thermistor
23EVAPORATOR
24FRONT ASSEMBLY, COMPLETE PANEL
255304483944 Frigidaire Air Conditioner Grill
26TRACK 1, FILTER, RIGHT SIDE
27TRACK 2, FILTER, CENTER
28TRACK 3, FILTER, LEFT SIDE
29WCI 5304485179
305304525609 Frigidaire Air Conditioner Filter
31FRAME, CONTROL PANEL, LCD COVER
325304483948 Frigidaire CONTROL-ELECTRICAL
335304483961 Frigidaire Air Conditioner Cover
34CLIP, MOUNTING, FRONT PANEL
355304483970 Frigidaire Air Conditioner Terminal
365304483952 Frigidaire Air Conditioner PC Board
375304485180 Frigidaire Air Conditioner PC Board
385304483972 Frigidaire Air Conditioner PC Board
39CAPACITOR, BLOWER FAN
40WCI 5304485181
41WCI 5304485189
42BRACKET, MOTOR SUPPORT
43WCI 5304483808
44WCI 5304484089
45VALVE, 1-WAY
46WCI 5304484815
48SHROUD, CONDENSER/FAN
49WCI 5304485190
505304485187 Frigidaire Power Cord
51WCI 5304485185
52WCI 5304485186
53WCI 5304484826
55WCI 5304484821
56WCI 5304459477
57WCI 5304483965
58WCI 5304483966
59COIL
61WCI 5304484822
625304459674 Frigidaire Air Conditioner Terminal Block
635304484110 Frigidaire Air Conditioner Heat Sink
64TRANSFORMER
655304483950 Frigidaire Air Conditioner Connector
665304483795 Frigidaire Air Conditioner Sensor
67WCI 5304484567
