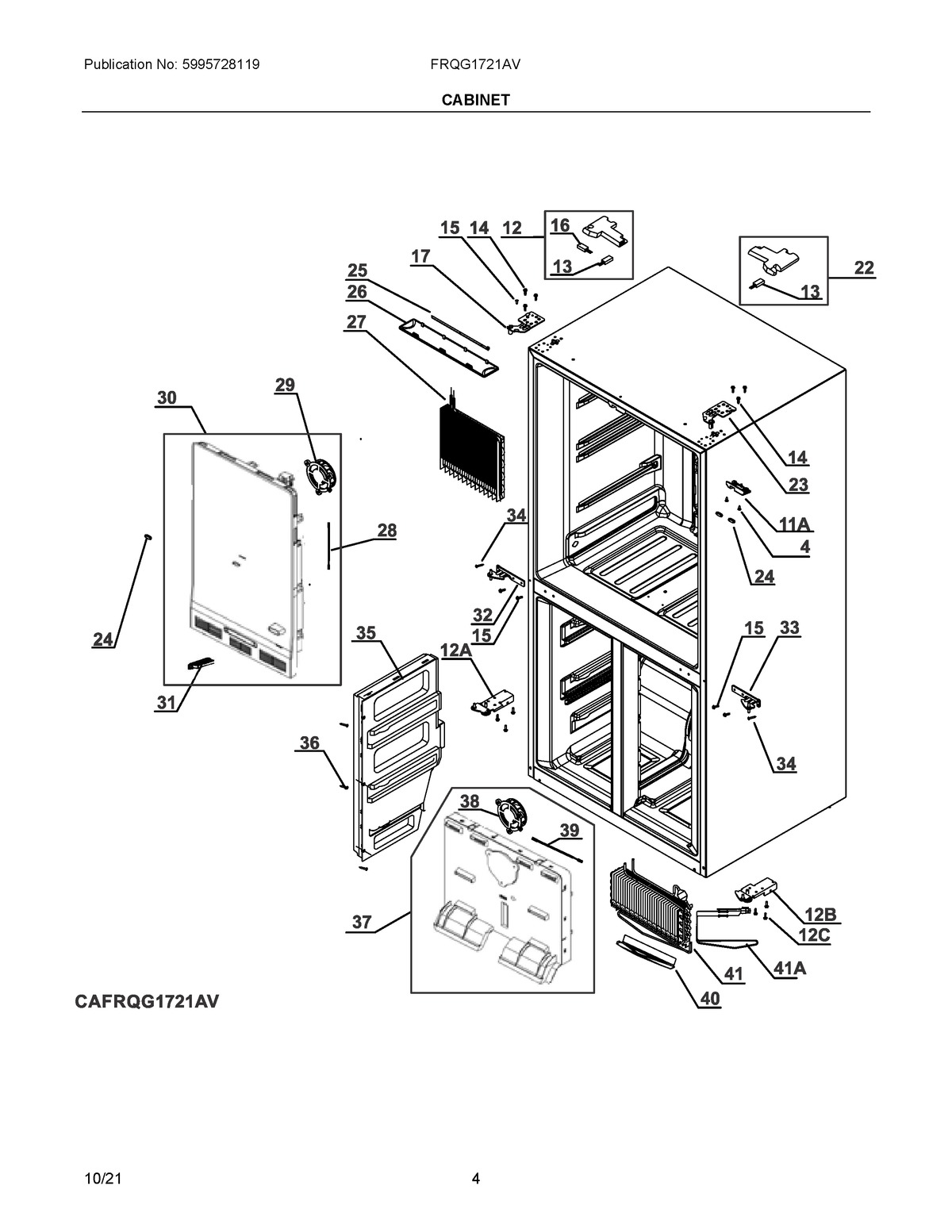

FRQG1721AV 03 – CABINET

Products

Position	Product
NIA	5304515161 Frigidaire Refrigerator Defrost Sensor
4	SCREW, (4)
11A	GUIDE, MULLION
12C	5304492672 Frigidaire Refrigerator M Screw
12	COVER ASSEMBLY, UPPER HINGE, LH, W/SWITCH-SENSOR
12B	5304513756 Frigidaire Hinge
12A	5304513755 Frigidaire Hinge Assembly
13	5304513757 Frigidaire Switch
14	5304513758 Frigidaire Screw
15	5304492671 Frigidaire Screw
16	5304513759 Frigidaire Refrigerator Sensor
17	5304513760 Frigidaire Refrigerator Hinge
22	COVER ASSEMBLY, UPPER HINGE, RH, W/REED SWITCH
23	5304513762 Frigidaire Hinge
24	CAP, SCREW, (3)
25	5304513764 Frigidaire Refrigerator Lamp
26	COVER, LED LAMP
27	5304513766 Frigidaire Refrigerator Evaporator
28	5304513767 Frigidaire Refrigerator Sensor
29	5304513768 Frigidaire Refrigerator Motor
30	5304522460 Frigidaire Air Duct
31	5304513774 Frigidaire Deodorizer
32	5304513775 Frigidaire Refrigerator Hinge
33	5304513776 Frigidaire Hinge Assembly
34	5304513777 Frigidaire Screw
35	DIVIDER ASSEMBLY, FREEZER COMPT.
36	SCREW, TAPPING, (15)
37	AIR DUCT, ASSEMBLY, FREEZER, W/MOTOR-SENSOR
38	5304513783 Frigidaire Refrigerator Motor
39	BOARD ASSEMBLY
40	DRIP TRAY, DEFROST, FREEZER
41A	5304513787 Frigidaire Refrigerator Heater
41	5304513786 Frigidaire Refrigerator Evaporator
