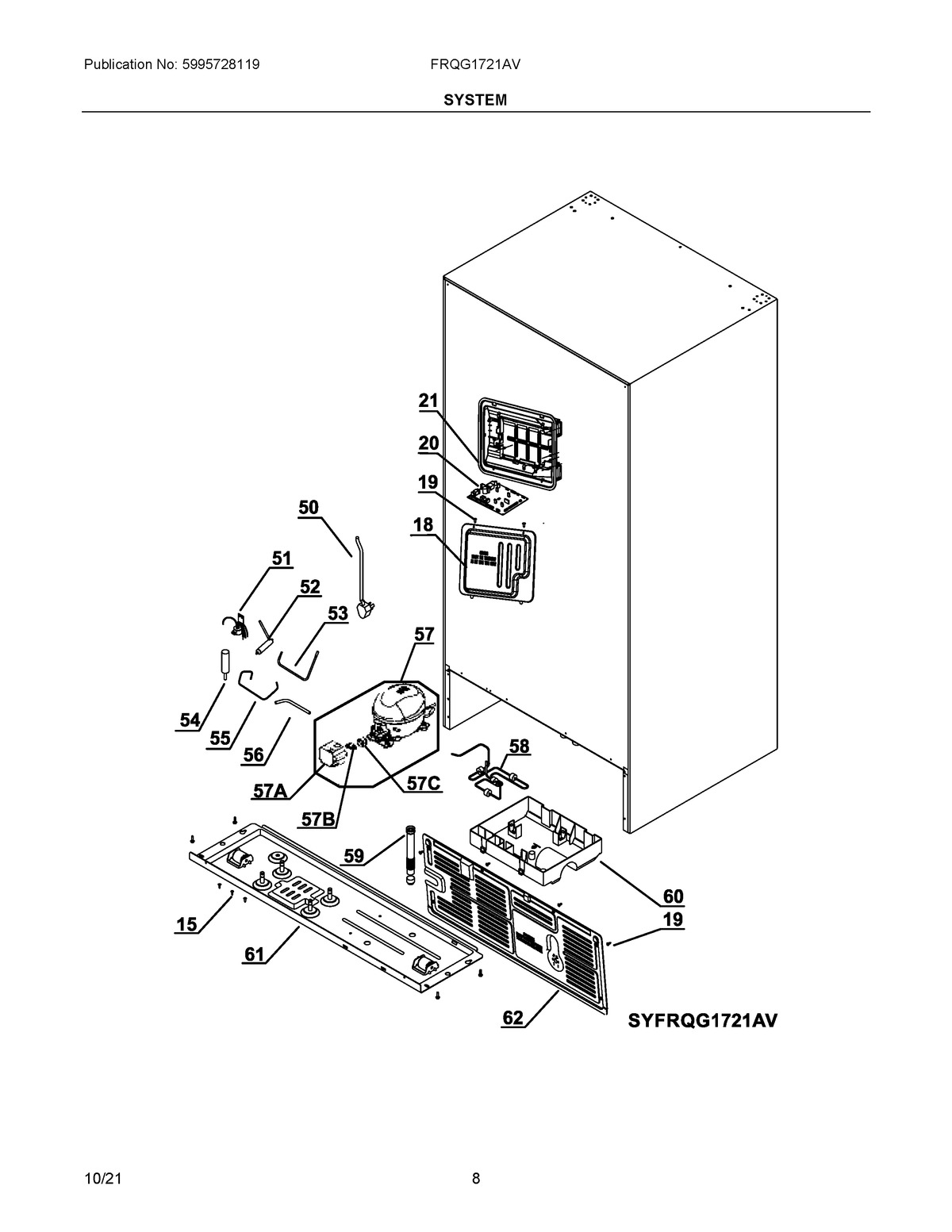

FRQG1721AV 05 – SYSTEM

FRQG1721AV 05 – SYSTEM

Written by

in

FRQG1721AV 05 – SYSTEM

Products

PositionProduct
155304492671 Frigidaire Screw
18COVER, CONTROL BOX
19SCREW, TAPPING, (20)
205304513797 Frigidaire Refrigerator Board Assembly
21BOX, MOUNTING, MAIN CONTROL
505304513799 Frigidaire Refrigerator Cord
515304513800 Frigidaire Refrigerator Valve
525304529360 Frigidaire Dryer
53SUCTION TUBE, CONNECTION
545304470340 Frigidaire Refrigerator Capacitor
55TUBE, CONNECTOR
56TUBE, PROCESSING
575304529365 Frigidaire Compressor
57A5304515286 Frigidaire Appliance Cover
57C5304508629 Frigidaire Compressor Start Relay
57B5304519893 Frigidaire Refrigerator Overload
58TUBING, HOT GAS, DRAIN TRAY
59TUBE, DRAIN
60TRAY, DRAIN
615304513810 Frigidaire Refrigerator Base Assembly
625304513811 Frigidaire Cover
