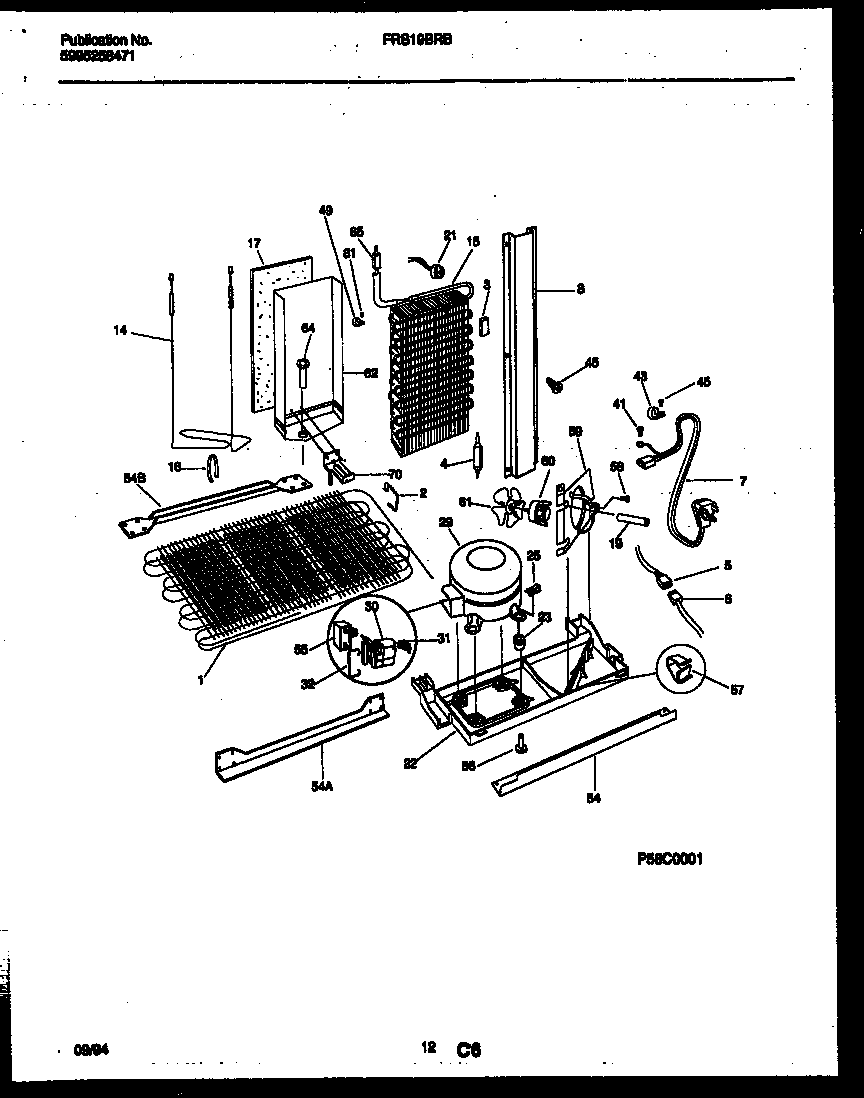

FRS19BRBD0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*11146	WCI 5303917166
1A	SPACER-COND TUBE,BLACK
1B	SPACER TUBE
1	WCI 5303289025
2	WCI 5303289029
3	WCI 215226501
3A	BLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5B	WCI 215454900
5	WCI 215458800
5A	HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
6	WCI 215501600
7	WCI 215459201
8	WCI 5303289033
14	218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15A	TUBE-INLET (NOT ILLUSTRATED)
15	WCI 215289603
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5303289042
19	TUBE-RUBBER
21	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22	WCI 5303289030
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 215014200
29	WCI 5303925125
30	WCI 216008900
31	WCI 5303274700
32	WCI 215012000
41	5308000039 Frigidaire Refrigerator Screw
43B	5308000133 Frigidaire Refrigerator Clamp
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455651 Frigidaire Refrigerator Screw
45A	5304455852 Frigidaire Refrigerator Screw
49	WCI 215506900
54A	WCI 5303289311
54B	WCI 5303289292
54	WCI 5303289027
55	5304464438 Frigidaire Compressor Run Capacitor
56	WCI 215014100
57	WCI 215073800
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 5303289031
60	WCI 215501901
61B	WCI 215004800
61A	WCI 215004700
61	WCI 5303289032
62	WCI 215048200
64	241957901 Frigidaire Refrigerator Tube-Drain
65	WCI 5303289301
70	WCI 5303289041
81	5304455650 Frigidaire Refrigerator Screw
