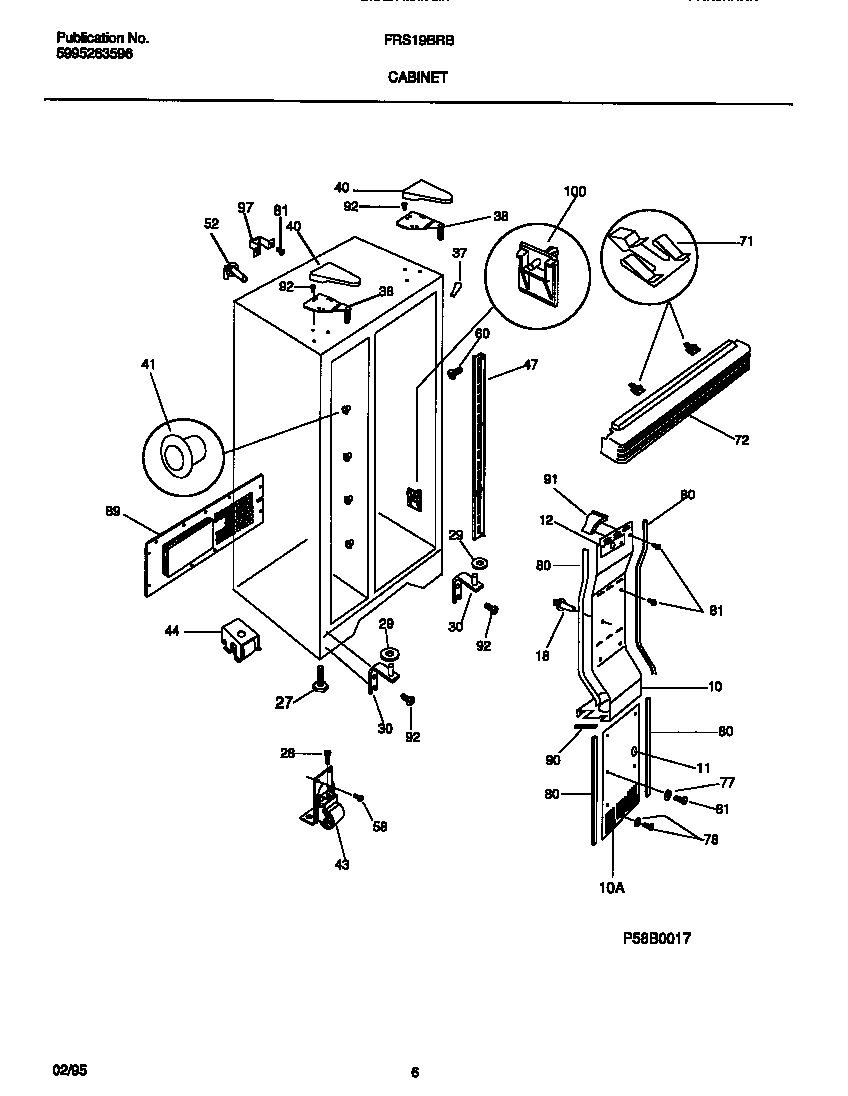

FRS19BRBD1 04 – CABINET

FRS19BRBD1 04 – CABINET

Written by

in

FRS19BRBD1 04 – CABINET

Products

PositionProduct
*66166PLUG, BUTTON, CABINET LINER (NI)
*66165TOUCH, UP PAINT, ALMOND (NI)
*66167WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 5303289035
10WCI 5303289038
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
18SUPPORT-AIR DUCT CVR,1.83“ LONG
27Screw-leveling,(2)
28WCI 5303289062
29WCI 215314300
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30TAPPING PLATE, LH (NOT ILLUSTRATED)
37TRIM-CABINET CORNER, ALMOND
38BRACKET, UPPER HINGE, W/CLOSER, WHITE
40WCI 5303288946
415304509705 Frigidaire Refrigerator Grommet
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43WCI 5303289059
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
47WCI 5303288974
52PLUG-WTR INLET TUBE
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
71SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71WCI 215003300
72WCI 215362918
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218154003
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 215175300
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
100SUPPORT-PAN COVER
