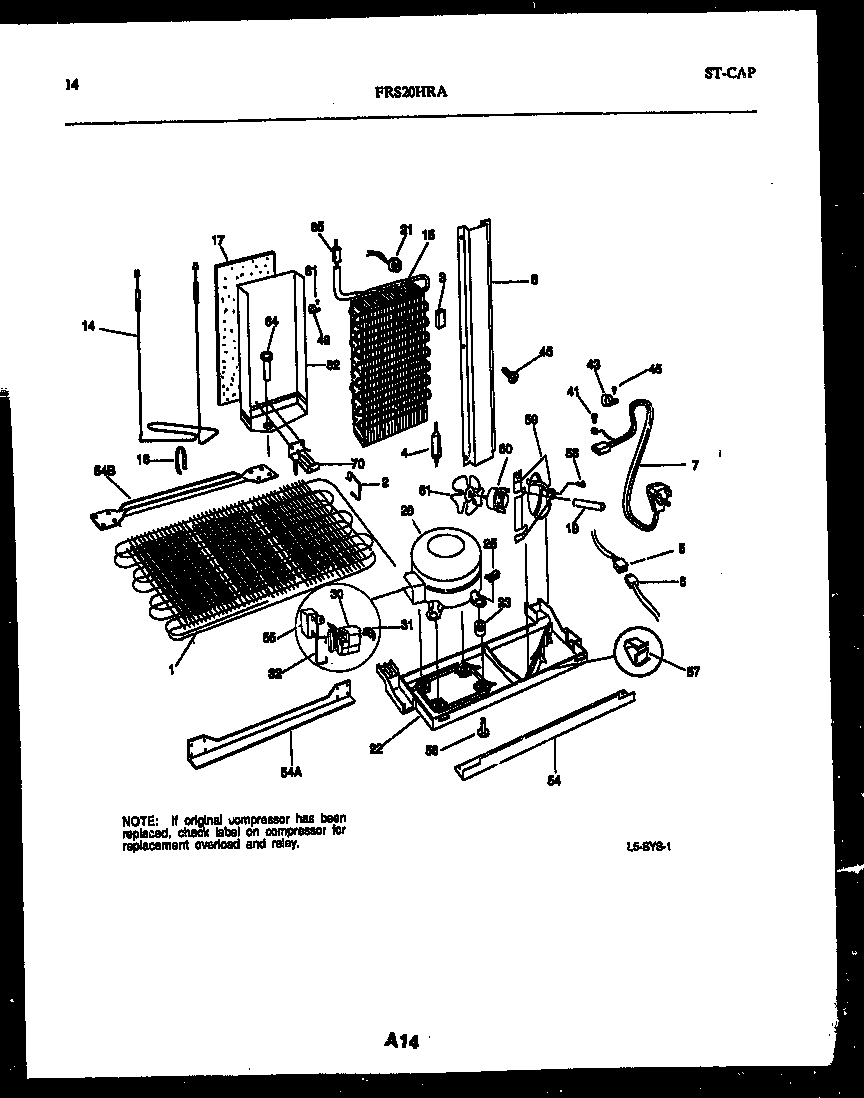

FRS20HRAD0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

FRS20HRAD0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

FRS20HRAD0 08 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1ASPACER TUBE
1ASPACER-COND TUBE,BLACK
1WCI 5303289025
2WCI 5303289029
3ABLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
3WCI 215226501
45303305677 Frigidaire Replacement Filter Dryer Filters
5AHARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
5BHARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
5WCI 215225400
6WCI 215226800
7CORD-ELECTRIC POWER
8WCI 5303289033
14WCI 5303289039
15WCI 215289601
15ATUBE-INLET (NOT ILLUSTRATED)
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19TUBE-RUBBER
21WCI 215095200
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29WCI 5303917192
30WCI 216008900
31WCI 5303272819
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
43B5308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215324700
