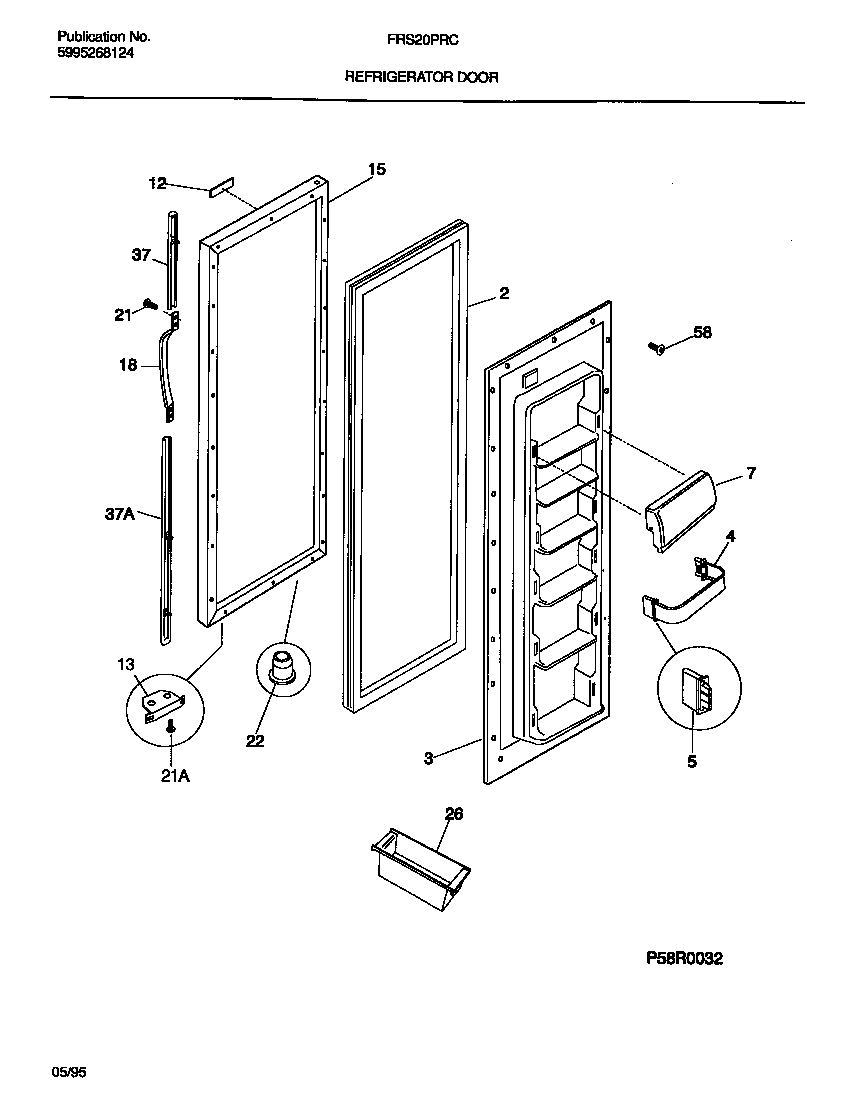

FRS20PRCW0 03 – REFRIGERATOR DOOR

FRS20PRCW0 03 – REFRIGERATOR DOOR

Written by

in

FRS20PRCW0 03 – REFRIGERATOR DOOR

Products

PositionProduct
*58521INSULATION
2WCI 215734312
3WCI 5303288953
4WCI 215004102
5WCI 5303288950
7WCI 5303310467
12WCI 218364004
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 215008601
13WCI 5303289522
15WCI 218097701
18WCI 215826401
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
37TRIM-HANDLE, 14.12“, WHITE, UPPER, W/CHROME BAND, AND SN
37ATRIM-HANDLE, 29.84“, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS
585304455651 Frigidaire Refrigerator Screw
