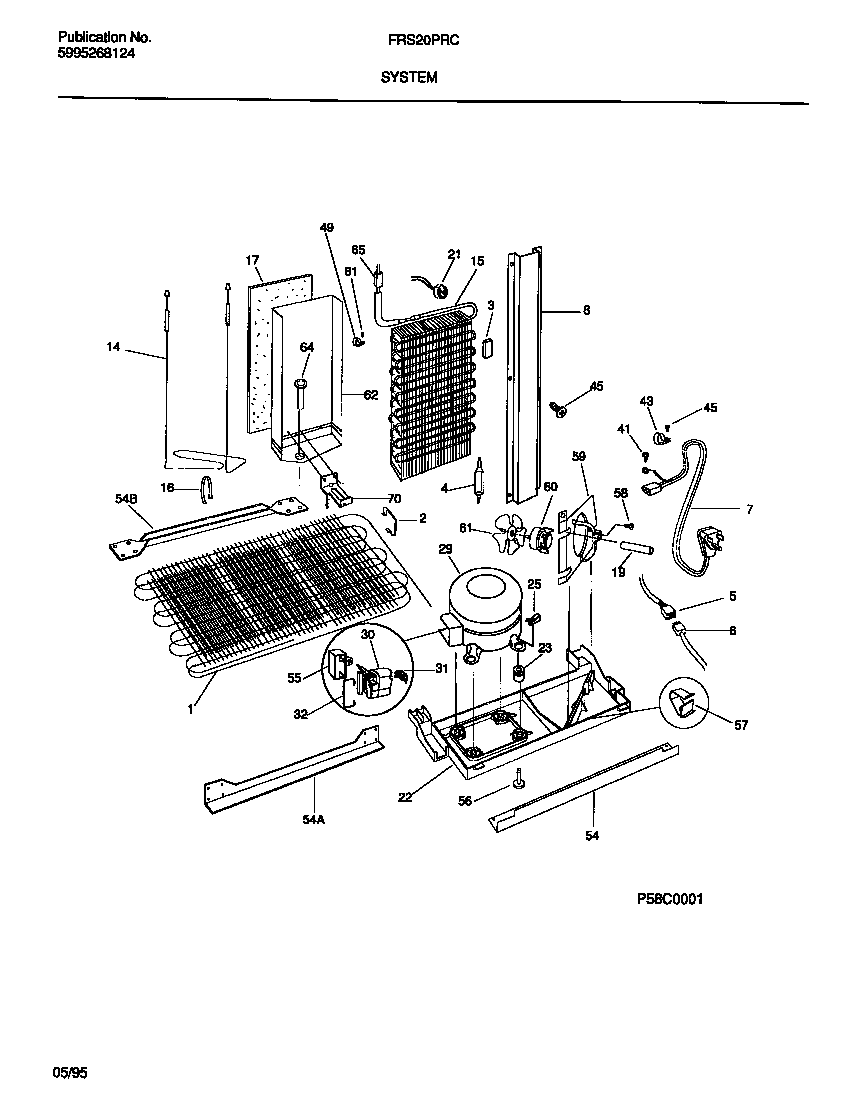

FRS20PRCW0 07 – SYSTEM

FRS20PRCW0 07 – SYSTEM

Written by

in

FRS20PRCW0 07 – SYSTEM

Products

PositionProduct
*58528WCI 5303917166
1AWCI 5303289025
1BSPACER-COND TUBE,BLACK
1CSPACER TUBE
2WCI 5303289029
3BBLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
3AWCI 215226501
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 215616900
6AHARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
6BHARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
7WCI 215459201
8WCI 5303289033
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15AWCI 215289603
15BTUBE-INLET (NOT ILLUSTRATED)
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19TUBE-RUBBER
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29COMPRESSOR W/O ELECTRICALS
30WCI 216008900
31WCI 5303274700
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
43A5303001199 Frigidaire Refrigerator Wiring Harness Clamp
43C5308000133 Frigidaire Refrigerator Clamp
45C5304455852 Frigidaire Refrigerator Screw
45A5304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54AWCI 5303289311
54BWCI 5303289292
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 215014100
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61BWCI 215004700
61AWCI 5303289032
61CGROMMET, SILENCER (NOT ILLUSTRATED)
62WCI 215048200
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
