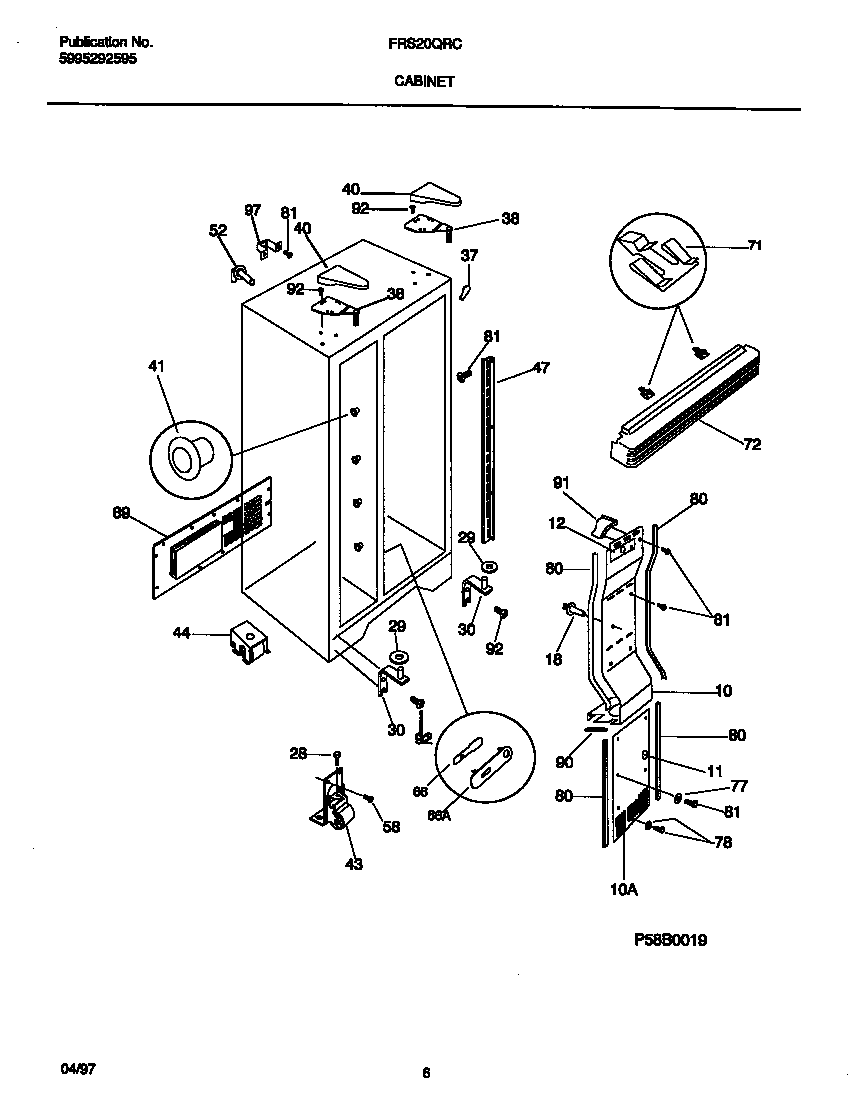

FRS20QRCD2 04 – CABINET

FRS20QRCD2 04 – CABINET

Written by

in

FRS20QRCD2 04 – CABINET

Products

PositionProduct
*49483TOUCH, UP PAINT, ALMOND (NI)
*49485PLUG, BUTTON, CABINET LINER (NI)
*49482WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 5303289038
10WCI 5303289035
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
18AWCI 5303289043
28WCI 5303289062
29BWCI 215314300
29AWCI 215003200
30DWCI 218730900
30BWCI 218730800
30CWCI 218730700
30ABRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38WCI 218215209
40WCI 5303288946
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41A5304509705 Frigidaire Refrigerator Grommet
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43AWCI 218615300
44WCI 218738300
47WCI 218659500
52ATUBE-WATER,ICE MOLD FILL ,ELBOW
52BPLUG-WTR INLET TUBE
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359608
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218154003
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
