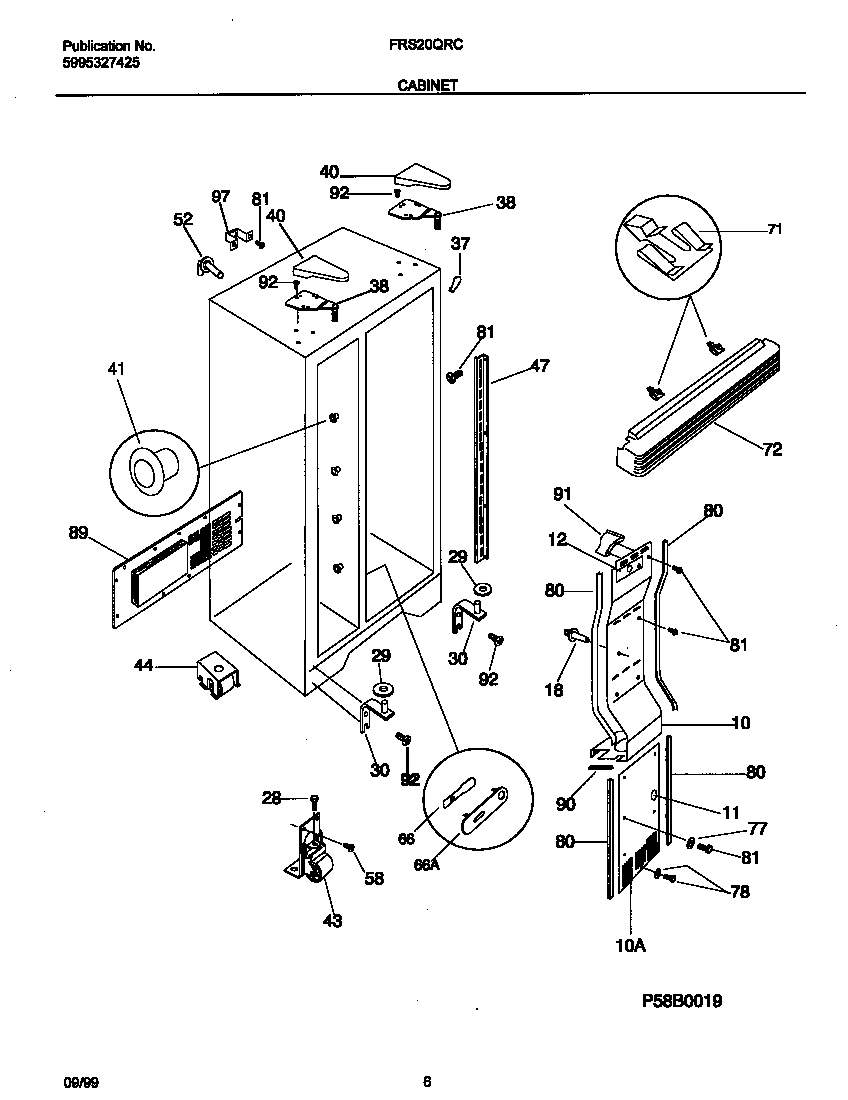

FRS20QRCD6 04 – CABINET

FRS20QRCD6 04 – CABINET

Written by

in

FRS20QRCD6 04 – CABINET

Products

PositionProduct
*72290SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*72291PLUG-WTR INLET TUBE
*72287WCI 218730800
*72286WCI 218730700
*72285SUPPORT-AIR DUCT CVR,1.83“ LONG
*72294PLUG, BUTTON, CABINET LINER (NI)
*72292TOUCH, UP PAINT, ALMOND (NI)
*722895304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*72288WCI 218730900
10WCI 5303289038
10WCI 218751300
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
28WCI 5303289062
29BWCI 215314301
29AWCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38WCI 218215221
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359608
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80AWCI 218154003
80BWCI 218249802
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90AWCI 215022602
90BWCI 5303322647
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
