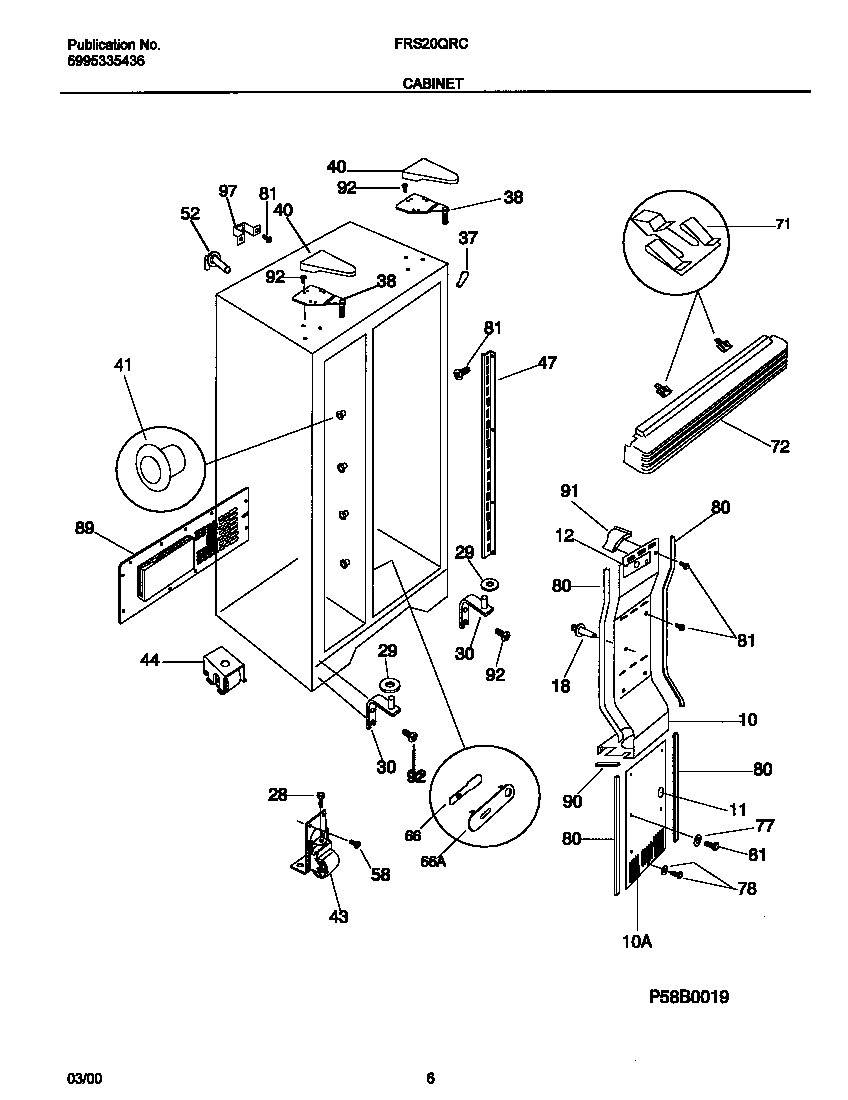

FRS20QRCD7 04 – CABINET

Products

Position	Product
*21773	WCI 5303322647
*21771	PLUG-WTR INLET TUBE
*21766	SUPPORT-AIR DUCT CVR,1.83“ LONG
*21768	WCI 218979701
*21765	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*21776	PLUG, BUTTON, CABINET LINER (NI)
*21775	TOUCH, UP PAINT, ALMOND (NI)
*21772	WCI 218554800
*21769	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*21767	WCI 218979601
*21770	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
10B	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10A	WCI 218751301
10	WCI 218748902
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18	WCI 5303289043
19	TUBE-RUBBER
28	WCI 5303289062
29B	WCI 215314301
29A	WCI 215003200
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37	WCI 5303321082
38	WCI 218215249
40	WCI 5303318774
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
44	WCI 218738300
47	WCI 218659500
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 218171301
66	WCI 215050201
71	218515401 Frigidaire Refrigerator Clip
72	WCI 218359608
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
89	WCI 5303288947
90	WCI 215022602
91	WCI 218769900
92	241710601 Frigidaire Refrigerator Screw
97	WCI 5303289299
