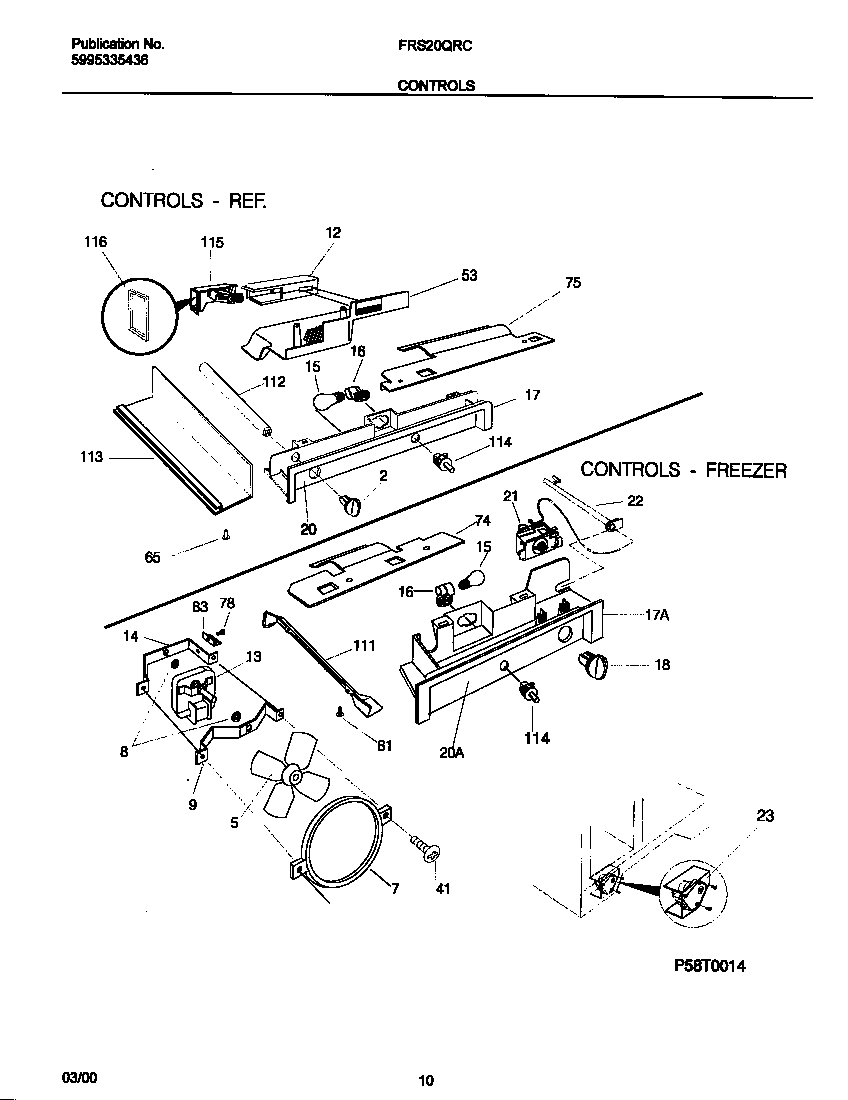

FRS20QRCD7 06 – CONTROLS

FRS20QRCD7 06 – CONTROLS

Written by

in

FRS20QRCD7 06 – CONTROLS

Products

PositionProduct
*217835304455649 Frigidaire Refrigerator Screw
*217855304455651 Frigidaire Refrigerator Screw
*21781WCI 218731102
*21780WCI 5303001260
*21784SHIELD-DEFROST TIMR,BTM
*21786NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*21782COVER-DEFROST TIMER, TOP
*21779215474201 Frigidaire Refrigerator Washer
*21787SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
2WCI 5303308569
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 218718402
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BWCI 215980800
17AWCI 5303289056
17WCI 5303289049
18WCI 5303308568
20WCI 5303308567
20WCI 5303308566
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
53WCI 215809501
65WCI 5303001361
74WCI 218465001
75WCI 218465101
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
112WCI 215277101
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011504
116WCI 215011400
