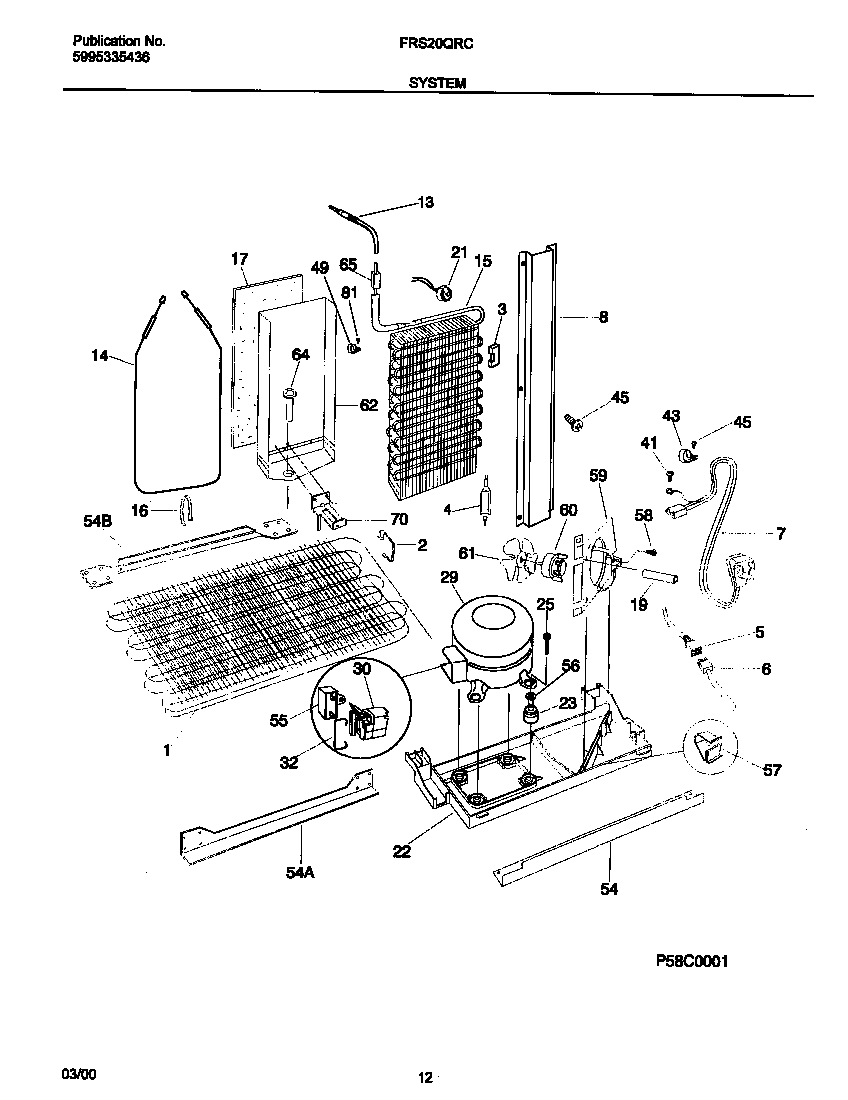

FRS20QRCD7 07 – SYSTEM

FRS20QRCD7 07 – SYSTEM

Written by

in

FRS20QRCD7 07 – SYSTEM

Products

PositionProduct
*21792HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
*217965308000133 Frigidaire Refrigerator Clamp
*21791HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
*217945304455852 Frigidaire Refrigerator Screw
*21797WCI 218769200
*21800WCI 5303917166
*21798WCI 215004700
*21790WCI 5304406721
*21789SPACER TUBE
*21799GROMMET, SILENCER (NOT ILLUSTRATED)
*21788SPACER-COND TUBE,BLACK
*21793TUBE-INLET (NOT ILLUSTRATED)
1WCI 218787700
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218965301
6WCI 218965901
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289311
54WCI 5303289292
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048201
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
