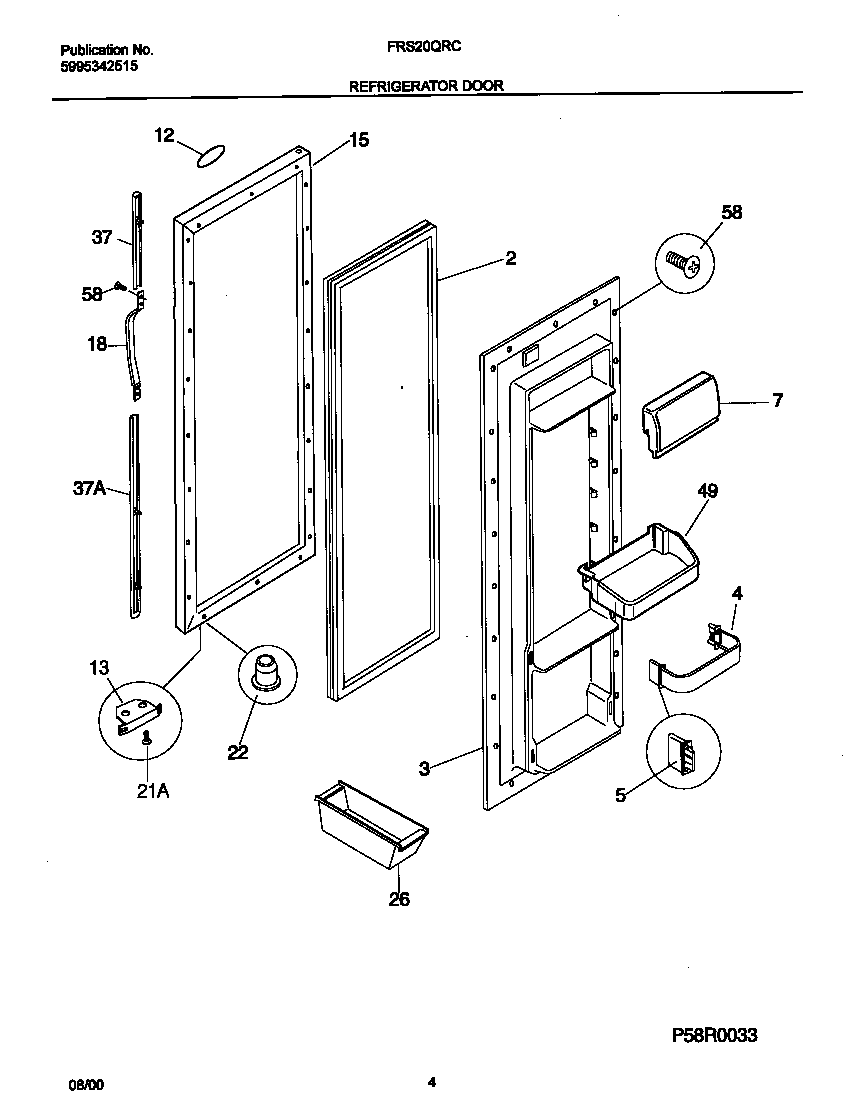

FRS20QRCD9 03 – REFRIGERATOR DOOR

FRS20QRCD9 03 – REFRIGERATOR DOOR

Written by

in

FRS20QRCD9 03 – REFRIGERATOR DOOR

Products

PositionProduct
*06204INSULATION
*06201WCI 215008602
*06203TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
2WCI 215734312
3WCI 215379101
4WCI 218807013
5WCI 5303288950
7WCI 5303308563
12WCI 218364005
13WCI 5303289522
15WCI 5303918184
18WCI 218762704
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
37BWCI 218676001
37AWCI 215782300
37WCI 215867073
37WCI 215867074
49215441502 Frigidaire Refrigerator Door Bin
58218781101 Frigidaire Handle Screw
