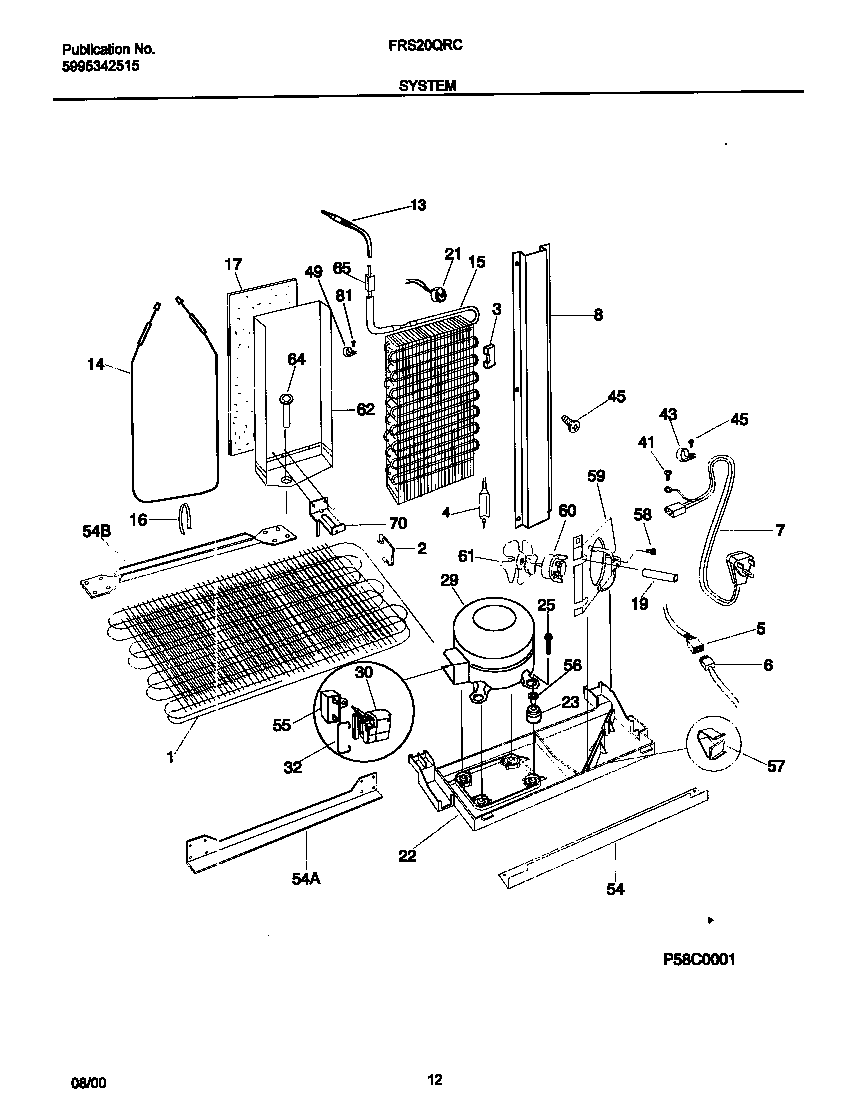

FRS20QRCD9 07 – SYSTEM

FRS20QRCD9 07 – SYSTEM

Written by

in

FRS20QRCD9 07 – SYSTEM

Products

PositionProduct
*06232HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
*06240WCI 5303917166
*06229SPACER TUBE
*06228SPACER-COND TUBE,BLACK
*062365304455651 Frigidaire Refrigerator Screw
*06233HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
*06237WCI 215732700
*06230WCI 5304406721
*06231WCI 218679605
*06238WCI 215004700
*06239WCI 215004800
*062355308000133 Frigidaire Refrigerator Clamp
1WCI 218787700
2WCI 5303289029
3WCI 218679608
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218965301
6WCI 218965901
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169804 Frigidaire Refrigerator Defrost Heater
15WCI 218955801
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415968
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
45WCI 218769200
49218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54WCI 5303289292
54WCI 5303289027
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048202
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
