FRS20QRCW0 03 – REFRIGERATOR DOOR

FRS20QRCW0 03 – REFRIGERATOR DOOR

Written by

in

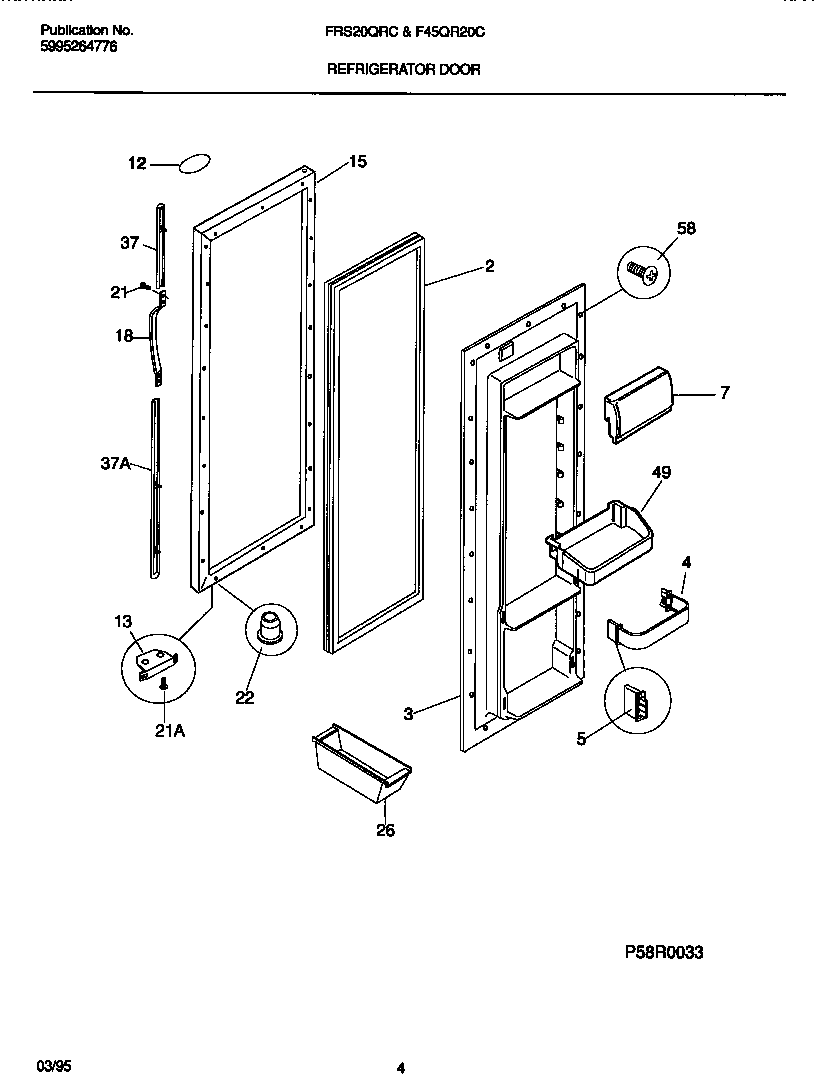

FRS20QRCW0 03 – REFRIGERATOR DOOR

Products

PositionProduct
*82401INSULATION
2WCI 215734312
3WCI 215379101
4WCI 215004102
5WCI 5303288950
7WCI 5303308563
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 215008601
12WCI 218364004
13WCI 5303289522
15WCI 218097701
18WCI 215826401
21WCI 215218600
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
37TRIM-HANDLE, 14.12“, WHITE, UPPER, W/CHROME BAND, AND SN
37TRIM-HANDLE, 29.84“, WHITE, LOWER, W/CHROME BAND, AND SNAP LOCKS
49215441502 Frigidaire Refrigerator Door Bin
585304455651 Frigidaire Refrigerator Screw
