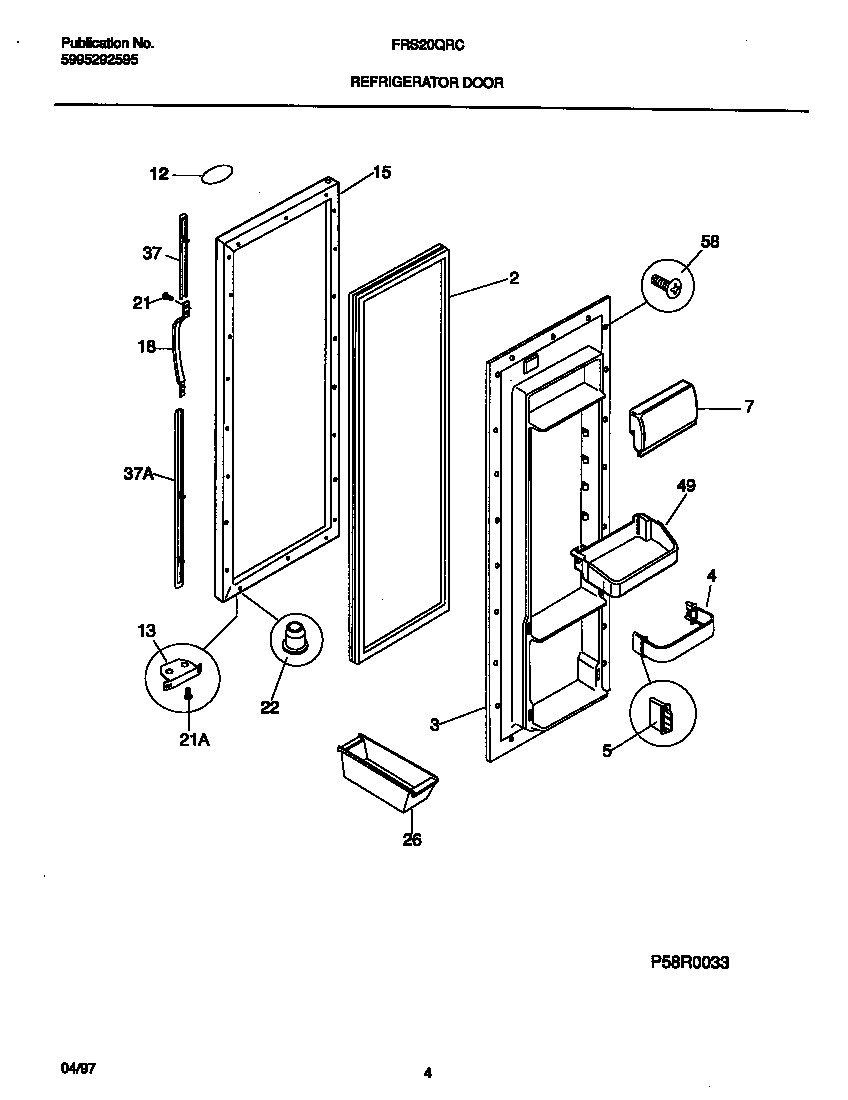

FRS20QRCW3 03 – REFRIGERATOR DOOR

FRS20QRCW3 03 – REFRIGERATOR DOOR

Written by

in

FRS20QRCW3 03 – REFRIGERATOR DOOR

Products

PositionProduct
*49481INSULATION
2WCI 215734312
3WCI 215379101
4WCI 215004102
5WCI 5303288950
7WCI 5303308563
12WCI 218364004
12WCI 215008601
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5303289522
15WCI 5303917893
18297311201 Frigidaire Freezer Door Handle
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
37WCI 215867055
37WCI 215867053
37CWCI 218676001
37BWCI 215940700
37AWCI 215782300
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
