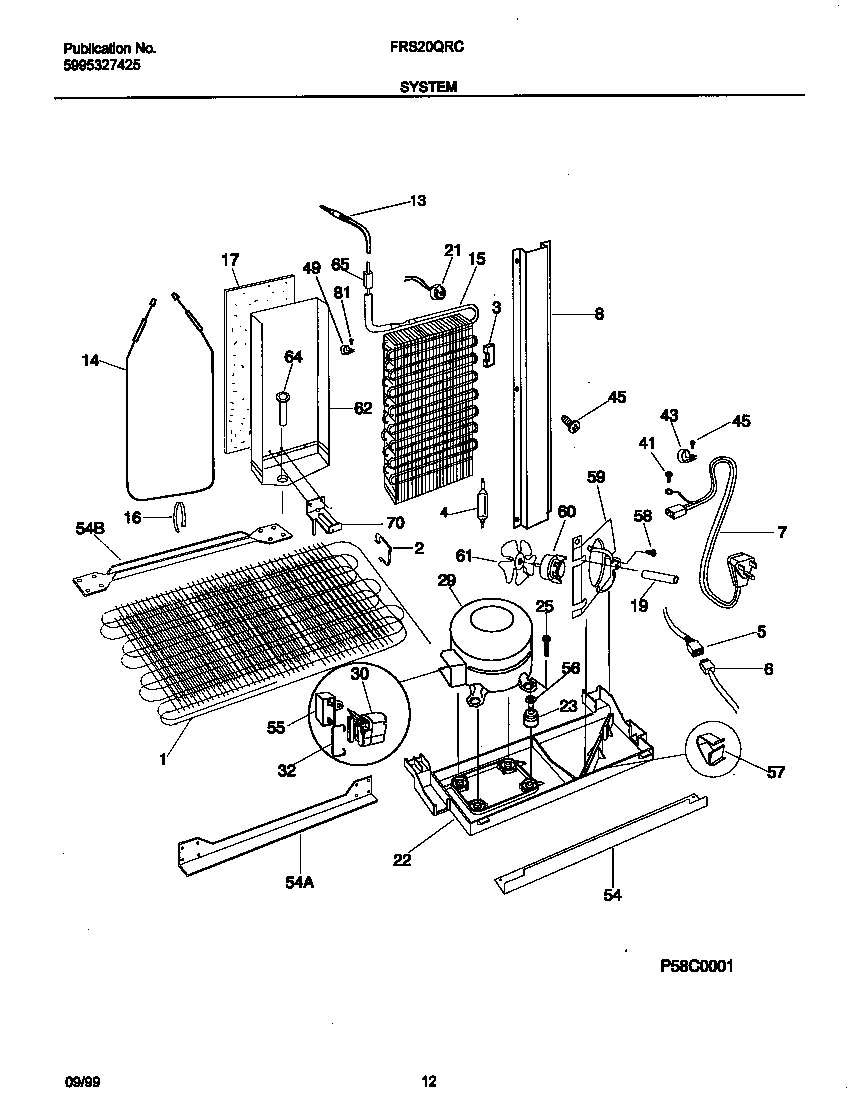

FRS20QRCW6 07 – SYSTEM

FRS20QRCW6 07 – SYSTEM

Written by

in

FRS20QRCW6 07 – SYSTEM

Products

PositionProduct
*72309TUBE-INLET (NOT ILLUSTRATED)
*72312WCI 218769200
*72314GROMMET, SILENCER (NOT ILLUSTRATED)
*72315WCI 5303917166
*72313WCI 215004700
*72307HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
*72308HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
*72306SPACER TUBE
*72305SPACER-COND TUBE,BLACK
*723115308000133 Frigidaire Refrigerator Clamp
1WCI 218787700
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 215458801
6WCI 215501601
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
305304491583 Frigidaire Freezer Compressor Start Relay & Overload Controller Kit
32CLAMP,ELEC CONT MTG ,COMPRESSOR
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289292
54WCI 5303289027
54WCI 5303289311
55WCI 218909902
56BWCI 218769300
56AWCI 215014100
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048201
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
