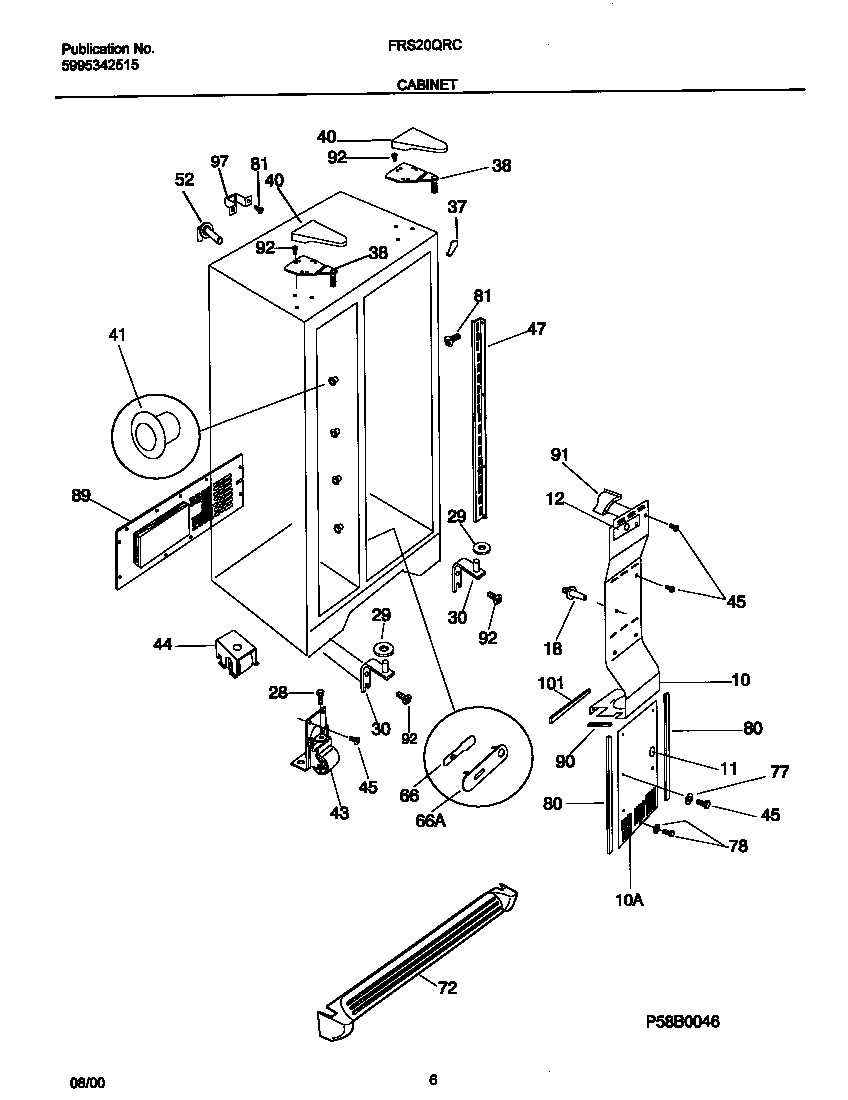

FRS20QRCW9 04 – CABINET

Products

Position	Product
*06214	WCI 5303322647
*06215	WCI 218902101
*06208	WCI 218979601
*06209	WCI 218979701
*06212	PLUG-WTR INLET TUBE
*06207	WCI 218871201
*06211	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*06206	SUPPORT-AIR DUCT CVR,1.83“ LONG
*06205	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*06218	PLUG, BUTTON, CABINET LINER (NI)
*06213	WCI 218554800
*06217	5303321319 Frigidaire Refrigerator White Touch Up Paint
*06210	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10A	WCI 218751303
10B	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10	WCI 218748902
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215314301
30	WCI 218993701
37	WCI 5303321081
38	WCI 218215241
40	WCI 5303318773
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 218659500
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 218171301
66	WCI 215050201
72	WCI 218359604
77	WASHER-NYLON,3/16 X 5/8 OD
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
89	WCI 5303288947
90	WCI 215022602
91	WCI 218769900
92	241710601 Frigidaire Refrigerator Screw
97	WCI 5303289299
101A	WCI 215305701
101B	WCI 218663103
