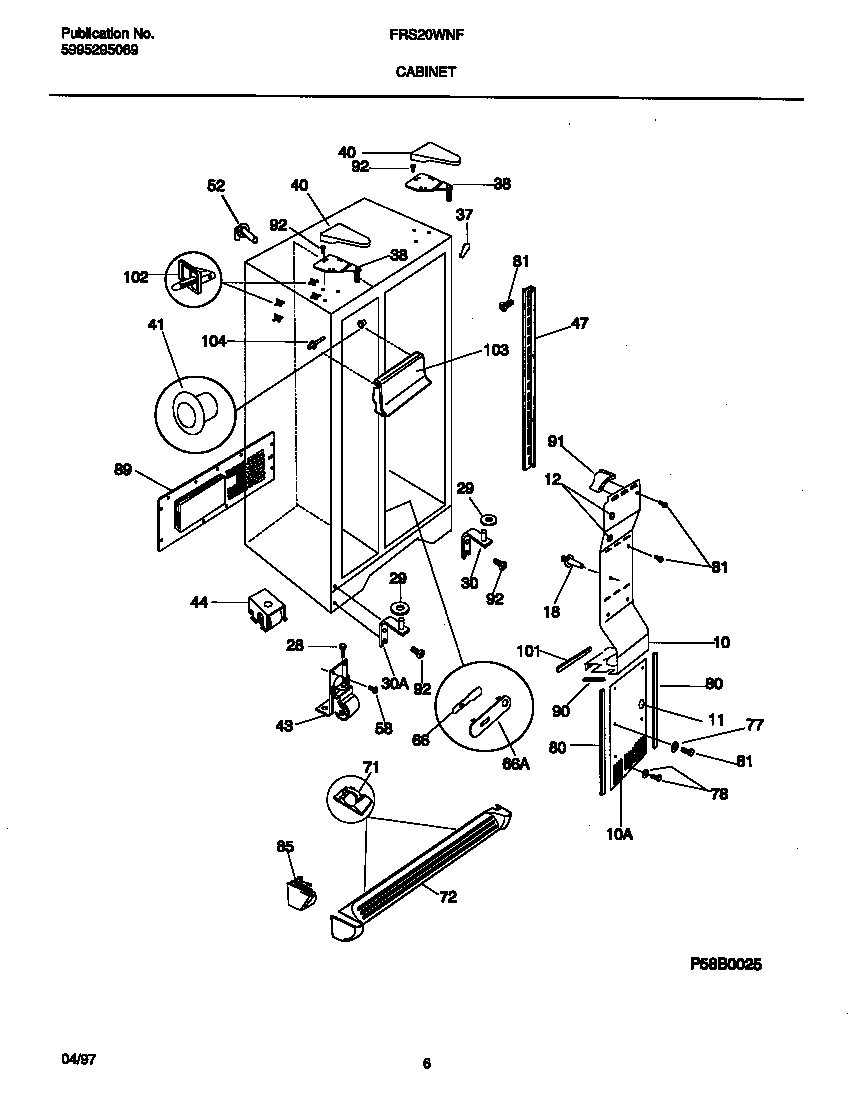

FRS20WNFW0 04 – CABINET

FRS20WNFW0 04 – CABINET

Written by

in

FRS20WNFW0 04 – CABINET

Products

PositionProduct
*683265303321319 Frigidaire Refrigerator White Touch Up Paint
*68324PLUG, BUTTON, CABINET LINER (NI)
*68323WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 218751300
10WCI 5303289038
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18BSUPPORT-AIR DUCT CVR,1.83“ LONG
18AWCI 5303289043
28WCI 5303289062
29BWCI 215314300
29CWCI 215598900
29AWCI 215003200
30BWCI 218730700
30WCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 218730800
37WCI 5303321081
38AWCI 218215213
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
40WCI 5303318773
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43BSCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43AWCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359613
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80BWCI 218154003
80AWCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359801
89WCI 5303288947
90AWCI 215022602
90BWCI 5303322647
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101WCI 215305701
102SUPPORT, MOTOR BRKT, & SHELF
103WCI 218748000
104BSCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104ASUPPORT-ICE ACCESS DR
