FRS20WRHD1 04 – CABINET

FRS20WRHD1 04 – CABINET

Written by

in

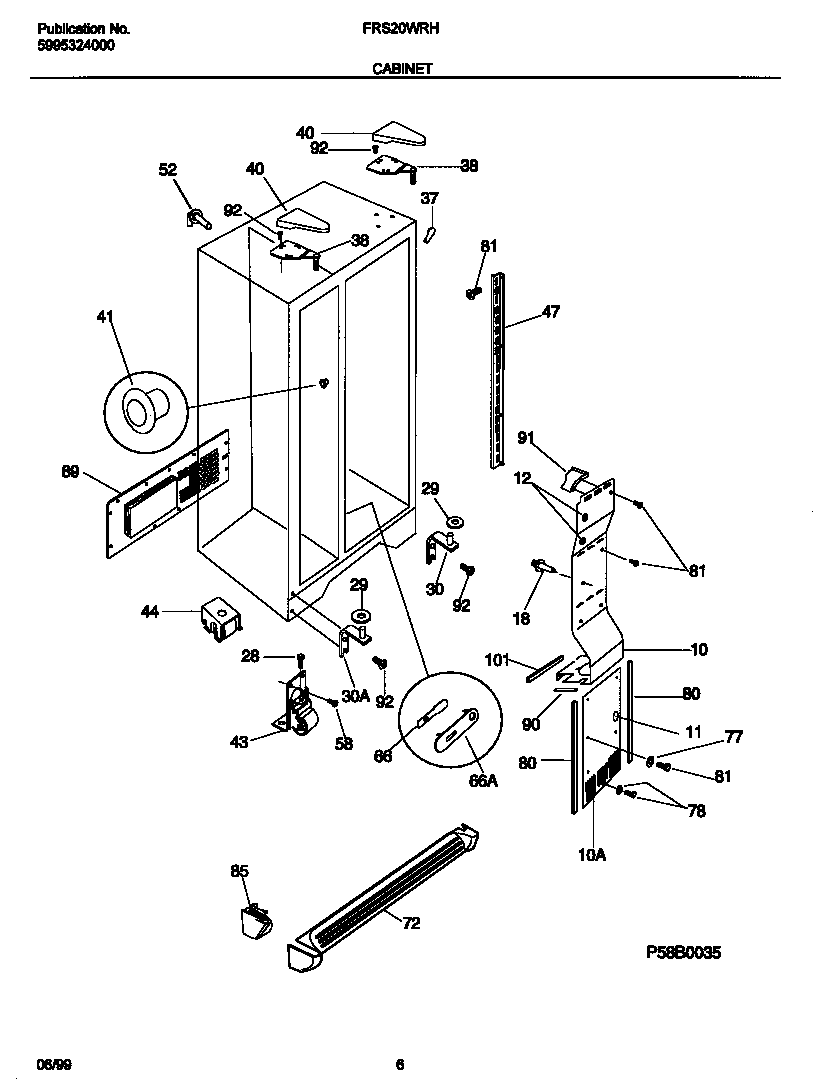

FRS20WRHD1 04 – CABINET

Products

PositionProduct
*25529WCI 5303322647
*25530WCI 218902101
*25525WCI 218871201
*25526WCI 218730800
*25528SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*25523SUPPORT-AIR DUCT CVR,1.83“ LONG
*25533PLUG, BUTTON, CABINET LINER (NI)
*25532TOUCH, UP PAINT, ALMOND (NI)
*25522WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*255275304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*25524WCI 215598900
10WCI 218748901
10WCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BWCI 218730700
30AWCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38BWCI 218215223
38AWCI 218215221
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359614
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359803
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101BWCI 218663103
101AWCI 215305701
