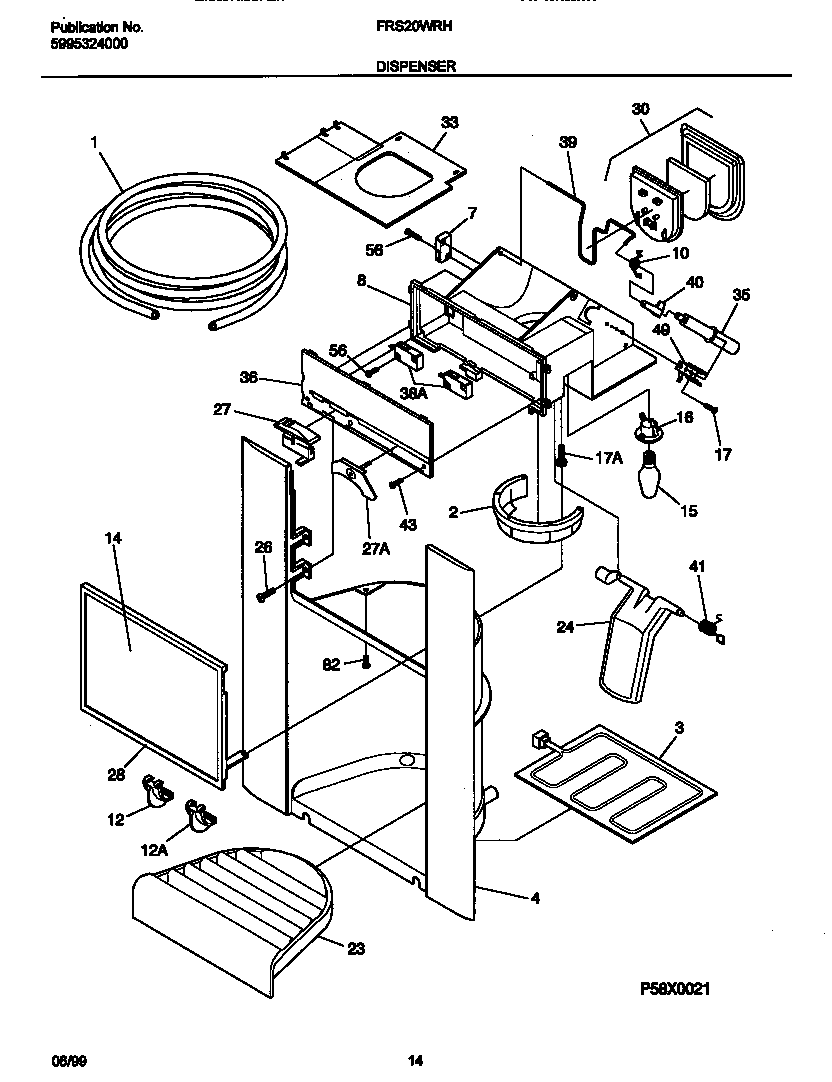

FRS20WRHD1 08 – ICE DISPENSER

Products

Position	Product
*25556	SHIELD-MICRO SWITCH (NOT ILLUSTRATED)
*25555	WCI 215294101
*25557	WCI 218863107
1	5308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2	WCI 218505302
3	WCI 215484300
4	WCI 218852402
7	WCI 218284800
8	WCI 218874901
10	WCI 218209800
12	WCI 218836202
12	WCI 218925501
12	WCI 218925402
14	WCI 218416187
15	WCI 218284900
16	240548901 Frigidaire Refrigerator P-1 Socket
17	WCI 215794400
17A	WCI 215840700
17B	WASHER-FLAT
23	WCI 5303297845
24	WCI 218921302
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 218432600
27	WCI 218814901
28	WCI 218906202
30	DOOR ASSY-ICE CHUTE, W/GASKET, INSUL
33	WCI 218870201
35	WCI 218740002
36	WCI 218835601
38	WCI 218479900
39	5304401778 Frigidaire Refrigerator Ice Door Wire
40	WCI 218284500
41	WCI 215765400
43	WCI 215760300
49	WCI 215794000
56	WCI 218434300
82	WCI 215296300
