FRS20WRHD4 07 – SYSTEM

FRS20WRHD4 07 – SYSTEM

Written by

in

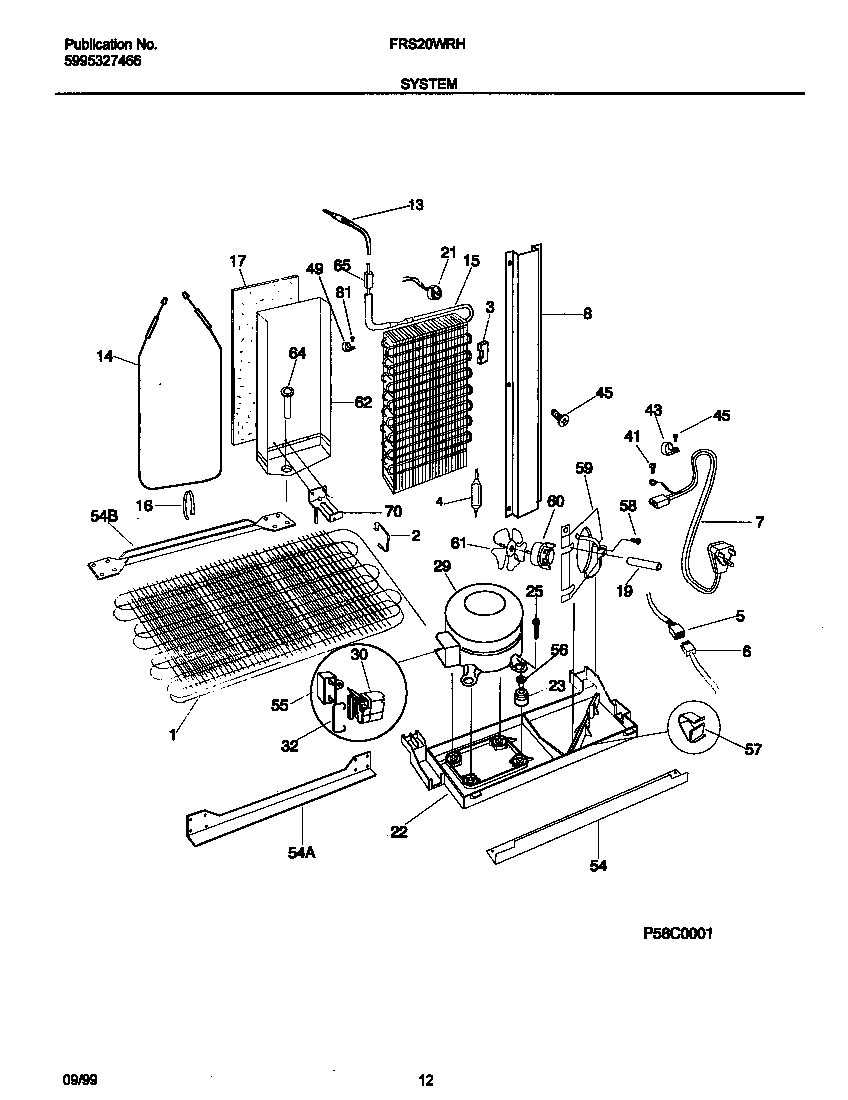

FRS20WRHD4 07 – SYSTEM

Products

PositionProduct
*00835WCI 215004800
*00826WIRING HARNESS,FRZR CONTROLS
*00832WCI 215732700
*00827TUBE-INLET (NOT ILLUSTRATED)
*00836WCI 5303917166
*00824SPACER TUBE
*00825WIRING HARNESS,REFR CONTROLS
*008285304500008 Frigidaire Oven Screw
*00823SPACER-COND TUBE,BLACK
*008305308000133 Frigidaire Refrigerator Clamp
*008315304455852 Frigidaire Refrigerator Screw
*00833WCI 218897001
*00834WCI 215004700
1WCI 218787700
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960001
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19WCI 218631200
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
305304491583 Frigidaire Freezer Compressor Start Relay & Overload Controller Kit
32CLAMP,ELEC CONT MTG ,COMPRESSOR
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
45WCI 218769200
49WCI 215506900
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
55WCI 218909902
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048201
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
