FRS20WRHD5 07 – SYSTEM

FRS20WRHD5 07 – SYSTEM

Written by

in

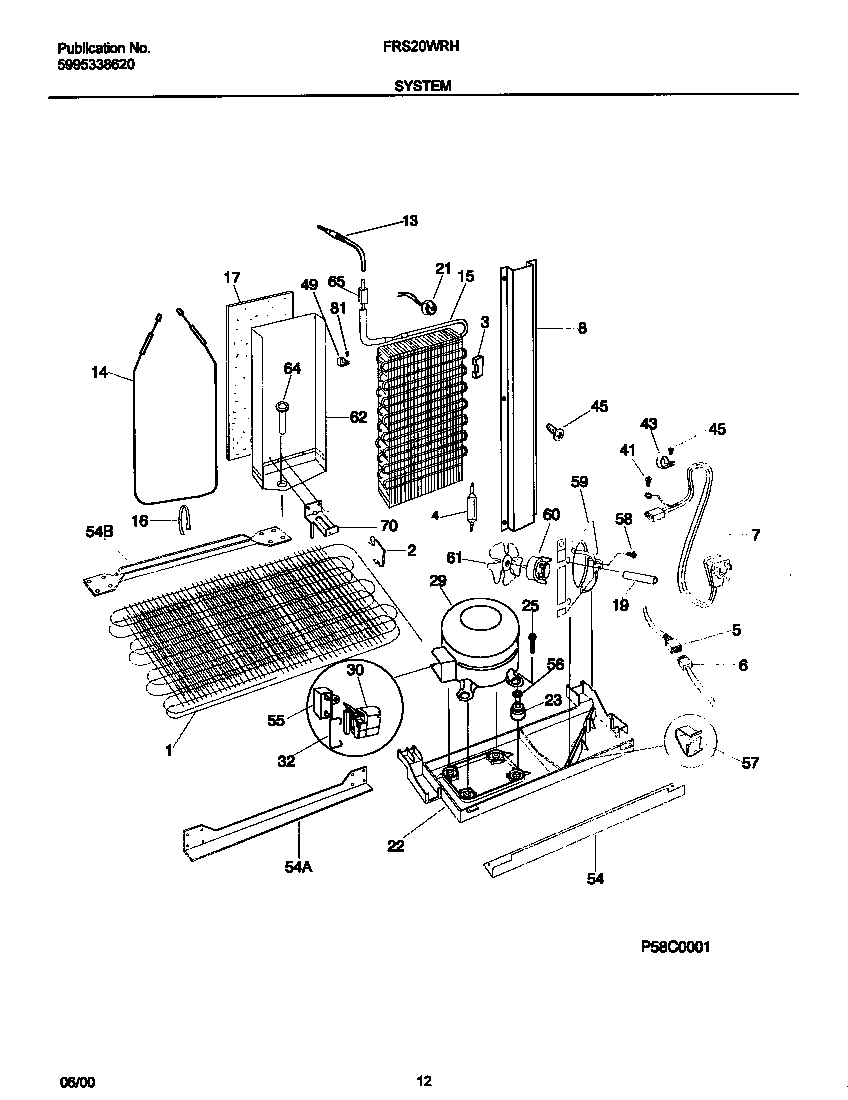

FRS20WRHD5 07 – SYSTEM

Products

PositionProduct
*91142SPACER-COND TUBE,BLACK
*91155WCI 218956801
*91154WCI 218956701
*91145WIRING HARNESS,FRZR CONTROLS
*91144WIRING HARNESS,REFR CONTROLS
*91143SPACER TUBE
*911495308000133 Frigidaire Refrigerator Clamp
*91156WCI 5303917166
*911515304455852 Frigidaire Refrigerator Screw
*91153WCI 218897001
*91146TUBE-INLET (NOT ILLUSTRATED)
*91152WCI 215732700
*911475304500008 Frigidaire Oven Screw
*91150SCREW,HEX HD SER WSHR ,8-18 X 0.375
1WCI 218787700
2WCI 5303289029
3WCI 218679603
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960001
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218657301 Frigidaire Refrigerator Defrost Heater 15" Long X 6" Wide
15WCI 218691302
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415968
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49WCI 215506900
54WCI 5303289311
54WCI 5303289292
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 218956601
60WCI 218956401
61WCI 218956501
62WCI 215048202
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
