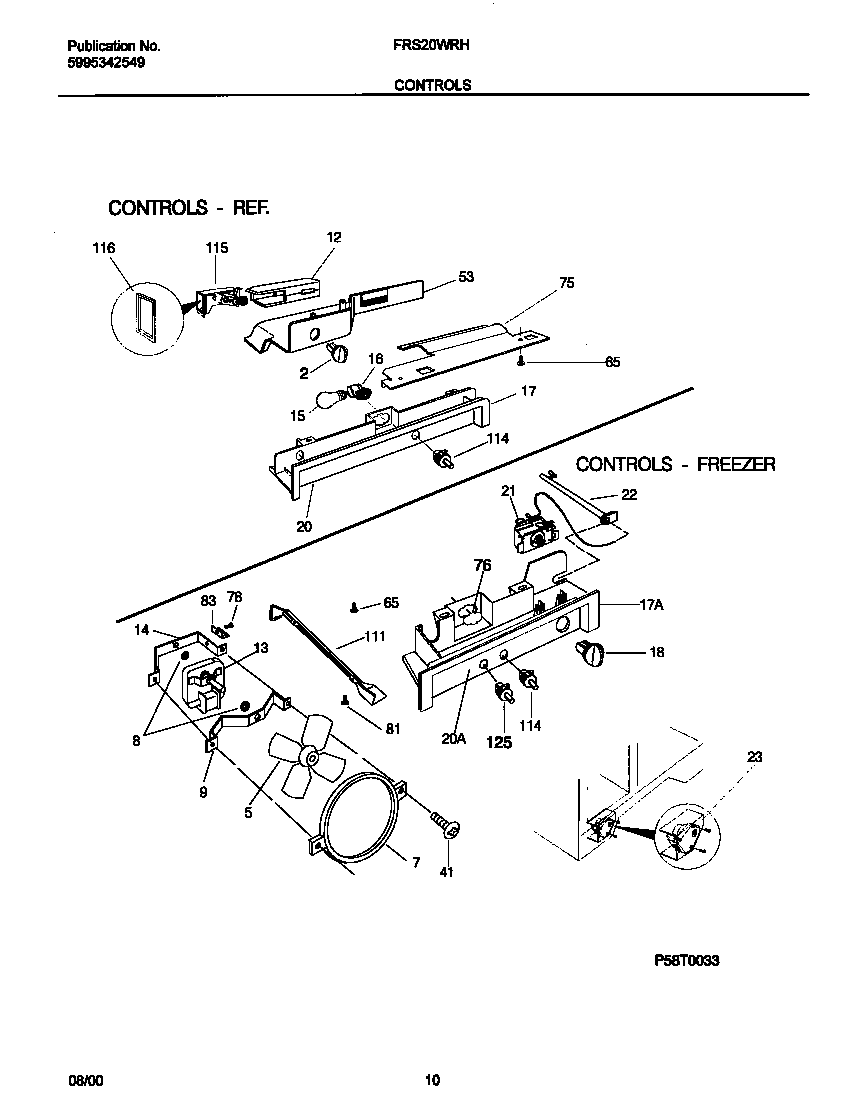

FRS20WRHD6 06 – CONTROL

FRS20WRHD6 06 – CONTROL

Written by

in

FRS20WRHD6 06 – CONTROL

Products

PositionProduct
*932205304455649 Frigidaire Refrigerator Screw
*93218WCI 218731102
*93221SHIELD-DEFROST TIMR,BTM
*93219COVER-DEFROST TIMER, TOP
*93217215474201 Frigidaire Refrigerator Washer
*93222NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17BSCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17AWCI 5303321928
17CONTROL BOX, REFR
18WCI 5303308568
20WCI 5303321926
20WCI 5303325668
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415304455651 Frigidaire Refrigerator Screw
53WCI 215809505
65WCI 5303001361
75WCI 218465101
76WCI 218225800
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
125WCI 215334201
