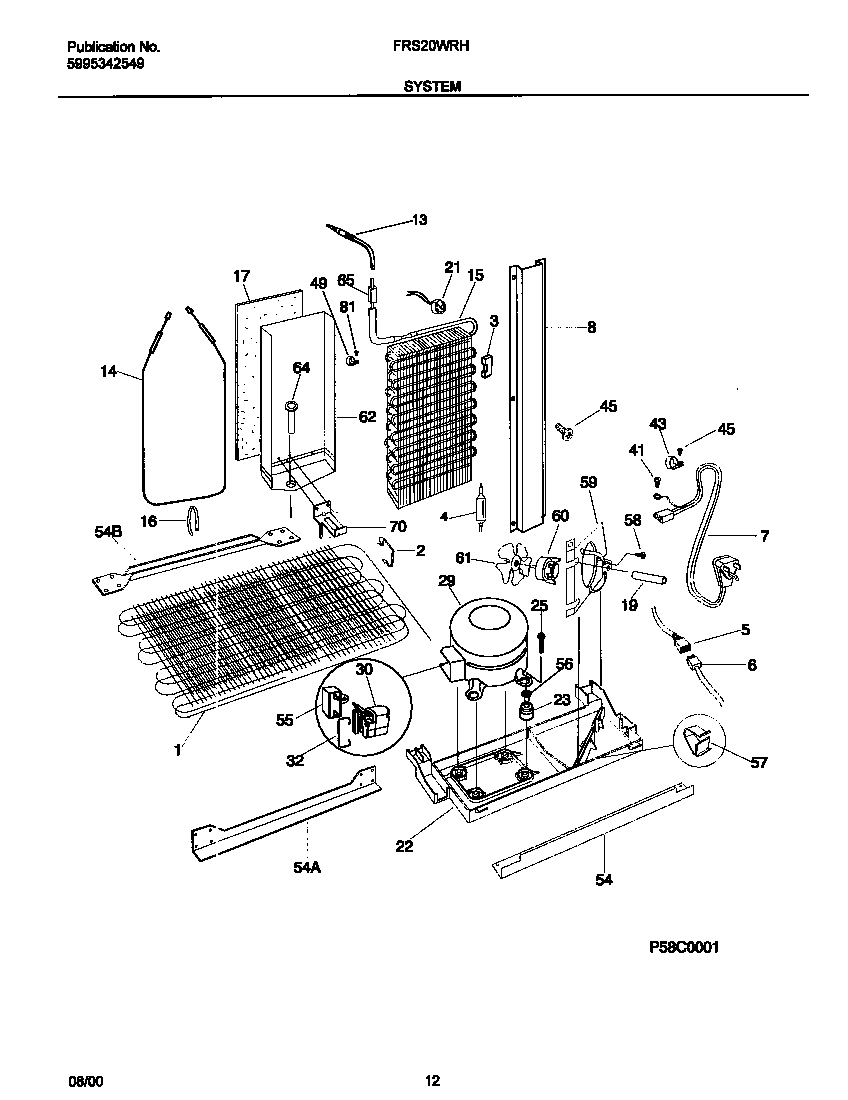

FRS20WRHD6 07 – SYSTEM

FRS20WRHD6 07 – SYSTEM

Written by

in

FRS20WRHD6 07 – SYSTEM

Products

PositionProduct
*93230WCI 215732700
*932285308000133 Frigidaire Refrigerator Clamp
*93232WCI 218956801
*93223SPACER-COND TUBE,BLACK
*93224SPACER TUBE
*93231WCI 218956701
*93233WCI 5303917166
*93227WIRING HARNESS,FRZR CONTROLS
*93229SCREW,HEX HD SER WSHR ,8-18 X 0.375
*93225WCI 218679605
*93226WIRING HARNESS,REFR CONTROLS
1WCI 218787700
2WCI 5303289029
3WCI 218679608
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218959901
6WCI 218960001
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169804 Frigidaire Refrigerator Defrost Heater
15WCI 218955801
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415968
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
43A5303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54WCI 5303289292
54WCI 5303289311
54WCI 5303289027
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 218956601
60WCI 218956401
61WCI 218956501
62WCI 215048202
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
