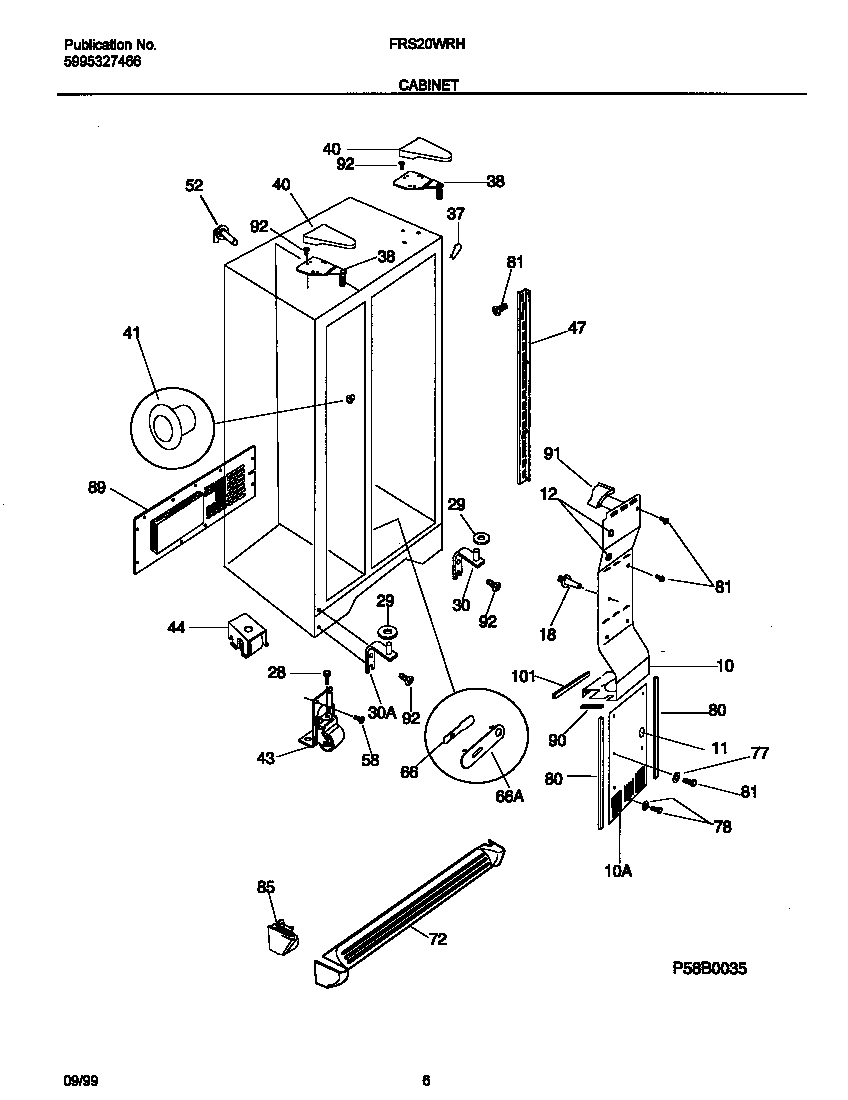

FRS20WRHW3 04 – CABINET

FRS20WRHW3 04 – CABINET

Written by

in

FRS20WRHW3 04 – CABINET

Products

PositionProduct
*00811WCI 5303322647
*00807WCI 218730800
*00809SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*00810WCI 218154003
*00804SUPPORT-AIR DUCT CVR,1.83“ LONG
*00815PLUG, BUTTON, CABINET LINER (NI)
*00803WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*00805WCI 215598900
*00806WCI 218871201
*008085304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*008145303321319 Frigidaire Refrigerator White Touch Up Paint
*00812WCI 218902101
10WCI 218748901
10WCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BWCI 218730700
30AWCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321081
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
38AWCI 218215213
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
72WCI 218359613
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922701
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101BWCI 218663103
101AWCI 215305701
