FRS20WRHW5 10 – ICE MAKER

FRS20WRHW5 10 – ICE MAKER

Written by

in

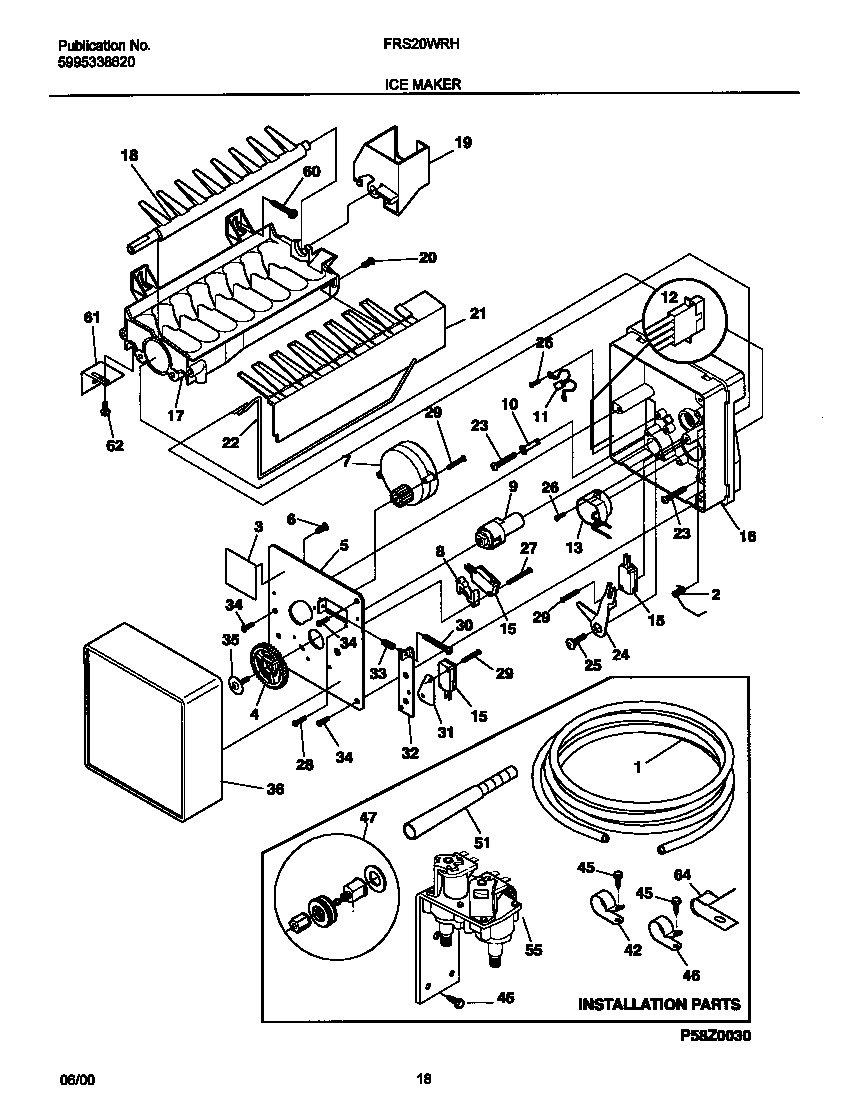

FRS20WRHW5 10 – ICE MAKER

Products

PositionProduct
*911675303918277 Frigidaire Refrigerator Ice Maker Assembly
*91166WCI 218835800
*91164PLUG, “ONLY“
*91163WCI 215294101
*91165Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
15308010366 Frigidaire Refrigerator P1-Water Inlet Tube
2WCI 3206348
3Label,ID plate
45304469403 Frigidaire Gear
5WCI 3206303
6218359202 Frigidaire Refrigerator Screw
8SPACER-HOLD SWITCH
9WCI 3206313
10WCI 3206315
113206319 Frigidaire Refrigerator Thermal Cut-Off Assembly P1
12HARNESS-WIRING, INTERNAL IM, WITH PLUG
13Thermostat Assy,ice maker
155304456667 Frigidaire Refrigerator Micro Switch
16WCI 3206326
17241798231 Frigidaire Refrigerator Ice Maker Assembly
18EJECTOR-ICE
19WCI 3206330
20WCI 5304408581
21ICE STRIPPER
22SHUT-OFF ARM
23SCREW,8-32 X 0.875 ,MOLD-TO-SUPPORT ,
245304456675 Frigidaire Refrigerator Lever Arm
25SCREW,8-18 X 0.562 ,LEVER ARM/SPRT
26SCREW-THERMO/SPRT, 4-24 X 3/8, (4)
27SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
28Screw-timing stop`4-40 x 0.375
29SCREW,4-24 X 0.750 ,(6)
30SCREW-TIMING ADJ,8-32 X 1.000
31WCI 3206342
32WCI 3206343
33WCI 5304408583
34241679901 Frigidaire Refrigerator Screw
35WCI 5304408585
36COVER-ICE MAKER
425308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
465303001193 Frigidaire Refrigerator Clamp
47WCI 5308000205
51WCI 215811600
55WCI 218720500
605304455852 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
645304455846 Frigidaire Refrigerator Clamp
