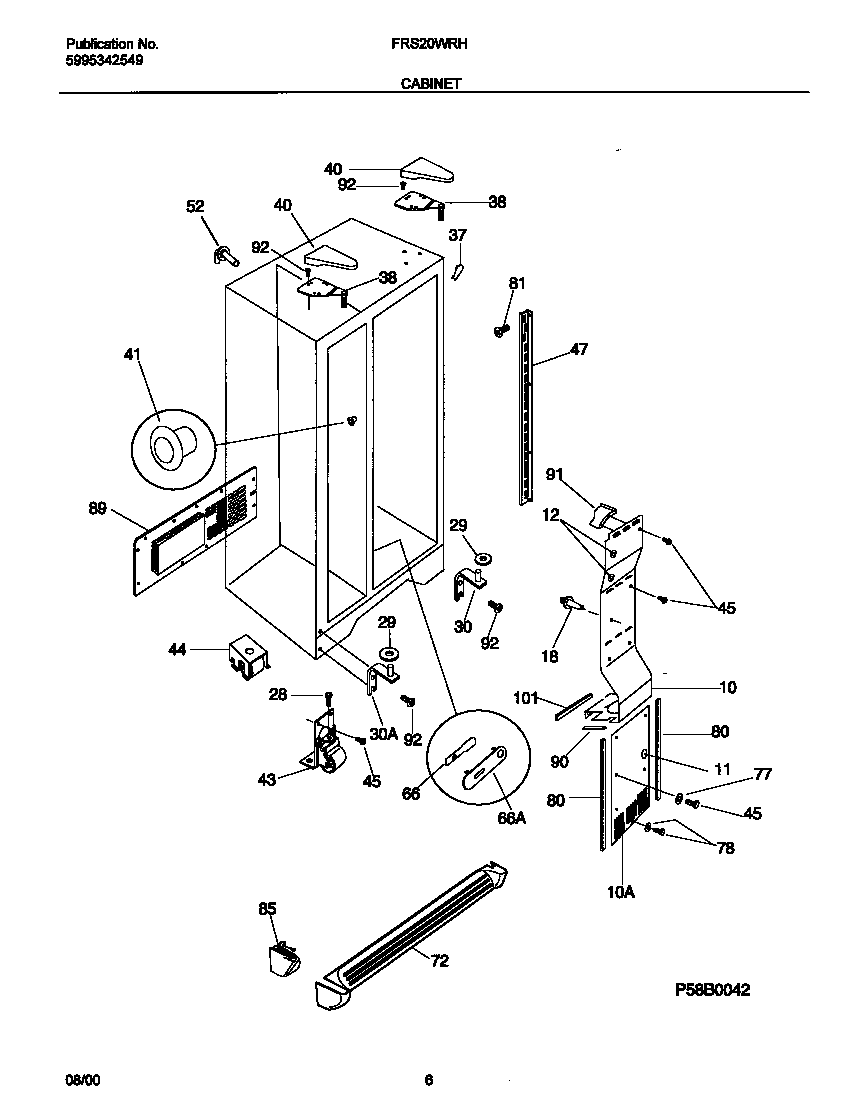

FRS20WRHW6 04 – CABINET

Products

Position	Product
*93204	SUPPORT-AIR DUCT CVR,1.83“ LONG
*93212	WCI 218902101
*93207	WCI 218979701
*93206	WCI 218871201
*93210	WCI 218154003
*93205	WCI 215598900
*93209	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*93211	WCI 5303322647
*93202	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*93215	PLUG, BUTTON, CABINET LINER (NI)
*93214	5303321319 Frigidaire Refrigerator White Touch Up Paint
*93208	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*93203	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10	WCI 218748901
10	WCI 218751303
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215314301
30A	WCI 218993901
30	WCI 218993701
30B	WCI 218979601
37	WCI 5303321081
38B	WCI 218215243
38A	WCI 218215241
40	WCI 5303318773
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
44	WCI 218738300
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 218659500
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
66	WCI 218171301
66	WCI 215050201
72	WCI 218359613
77	WASHER-NYLON,3/16 X 5/8 OD
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 218922701
89	WCI 5303288947
90	WCI 215022602
91	WCI 218964701
92	241710601 Frigidaire Refrigerator Screw
101A	WCI 215305701
101B	WCI 218663103
