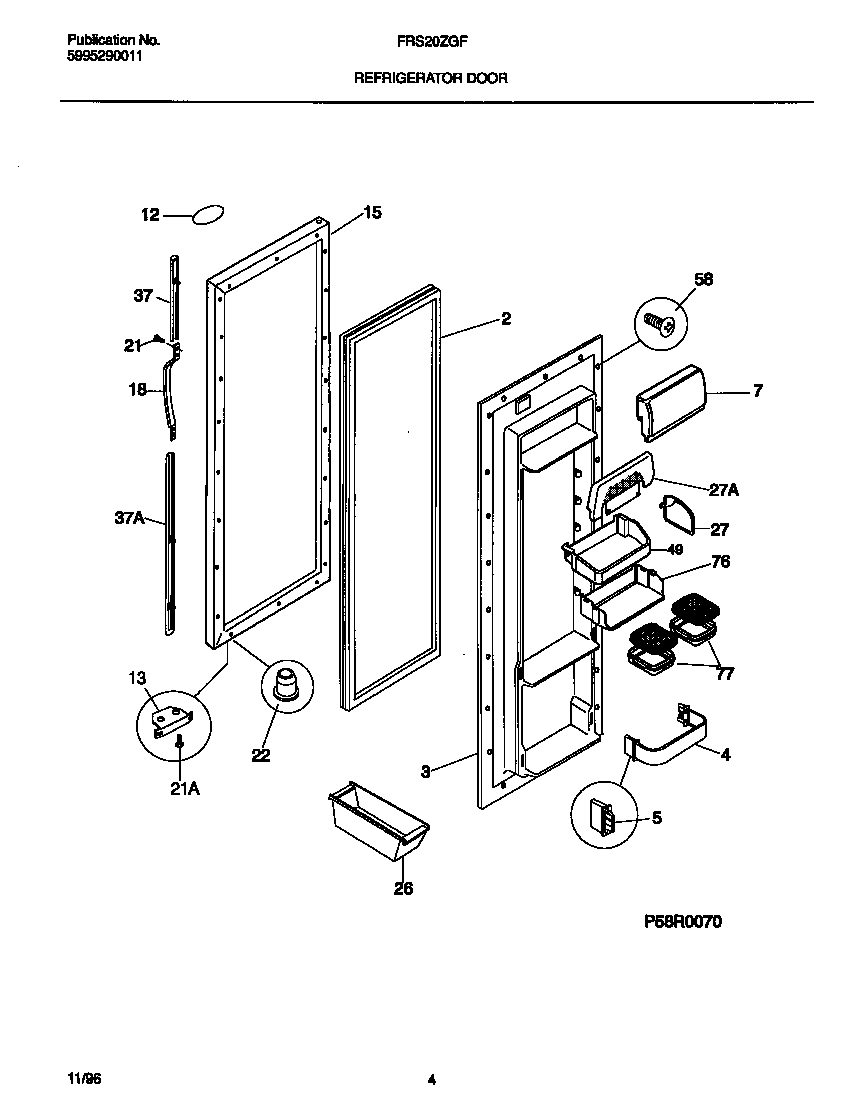

FRS20ZGFD0 03 – REFRIGERATOR DOOR

FRS20ZGFD0 03 – REFRIGERATOR DOOR

Written by

in

FRS20ZGFD0 03 – REFRIGERATOR DOOR

Products

PositionProduct
*10688INSULATION
*10687WCI 218676002
*10686WCI 215940700
*10685WCI 215782300
2WCI 215734302
3WCI 218749301
4WCI 5303320230
5WCI 5303288950
7WCI 5303308347
12LABEL-NAMEPLATE,ALMOND
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364005
13WCI 5303289522
15WCI 5303917894
18WCI 218025204
21218843801 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26WCI 3204522
27WCI 218714201
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37TRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
76WCI 218423900
77WCI 218423502
