FRS20ZGFD0 06 – CONTROLS

FRS20ZGFD0 06 – CONTROLS

Written by

in

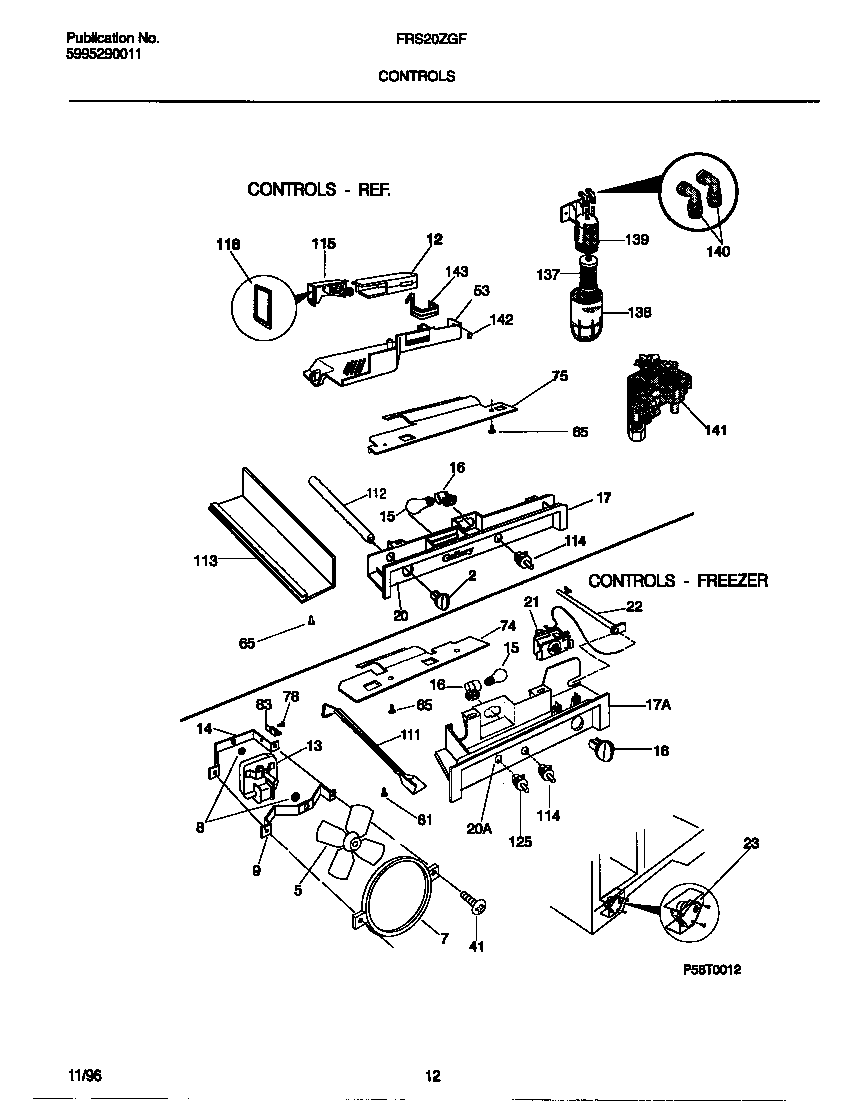

FRS20ZGFD0 06 – CONTROLS

Products

PositionProduct
*10694WIRING HARNESS,FILTER HEATER
*10696218710300 Frigidaire Refrigerator Water Filter Wrench
*10692SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
*106953205266 Frigidaire Refrigerator Edge Protector
*10693Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13AWCI 218718402
13B215474201 Frigidaire Refrigerator Washer
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17WCI 218468702
17BWCI 215980800
17AWCI 5303321928
18WCI 5303307882
20WCI 5303321927
20WCI 5303321926
21BWCI 5303001260
21AWCI 5303294323
22WCI 5303319683
23DSHIELD-DEFROST TIMR,BTM
23CCOVER-DEFROST TIMER, TOP
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23B5304455649 Frigidaire Refrigerator Screw
41A5308000039 Frigidaire Refrigerator Screw
41BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53WCI 215809506
65WCI 5303001361
74WCI 218465000
75WCI 218465100
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
112WCI 215277101
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011504
116WCI 215011400
137WCI 215334201
138BLABEL-WATER FILTER
138AWCI 218657401
139HOUSING-WTR FILTER
140WCI 218518700
141VALVE-WATER,DUAL SOLENOID ,115 V ,W/NUT
142WCI 218657701
143WCI 218696700
