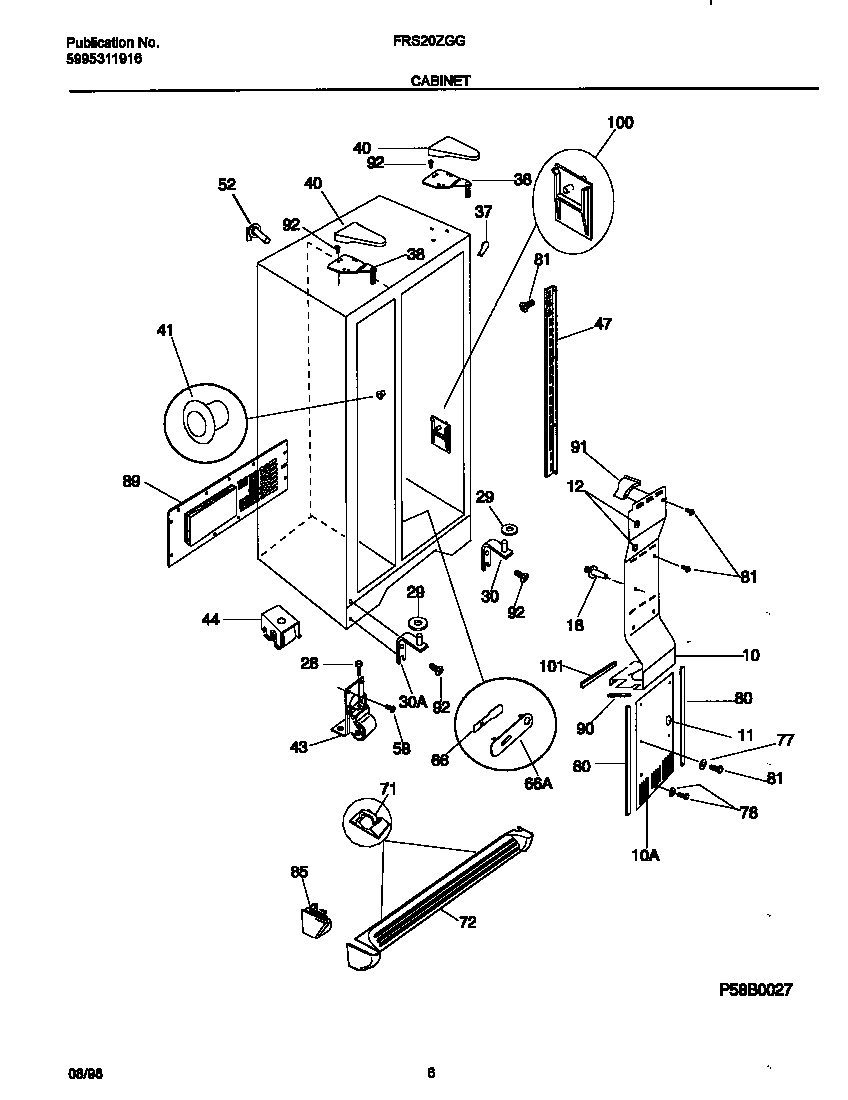

FRS20ZGGB2 04 – CABINET

FRS20ZGGB2 04 – CABINET

Written by

in

FRS20ZGGB2 04 – CABINET

Products

PositionProduct
*727805303321321 Frigidaire Refrigerator Black Touch-Up Paint
*72773WCI 218730800
*72775SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*72777WCI 5303322647
*72771SUPPORT-AIR DUCT CVR,1.83“ LONG
*72781PLUG, BUTTON, CABINET LINER (NI)
*72776WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*72772WCI 218871201
*72770NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*727745304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10WCI 218748901
10WCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29AWCI 215003200
29BWCI 215314301
30BWCI 218730700
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
37WCI 5303321083
38AWCI 218215214
38BWCI 218215216
40WCI 218374406
40WCI 218374409
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359615
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359805
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
