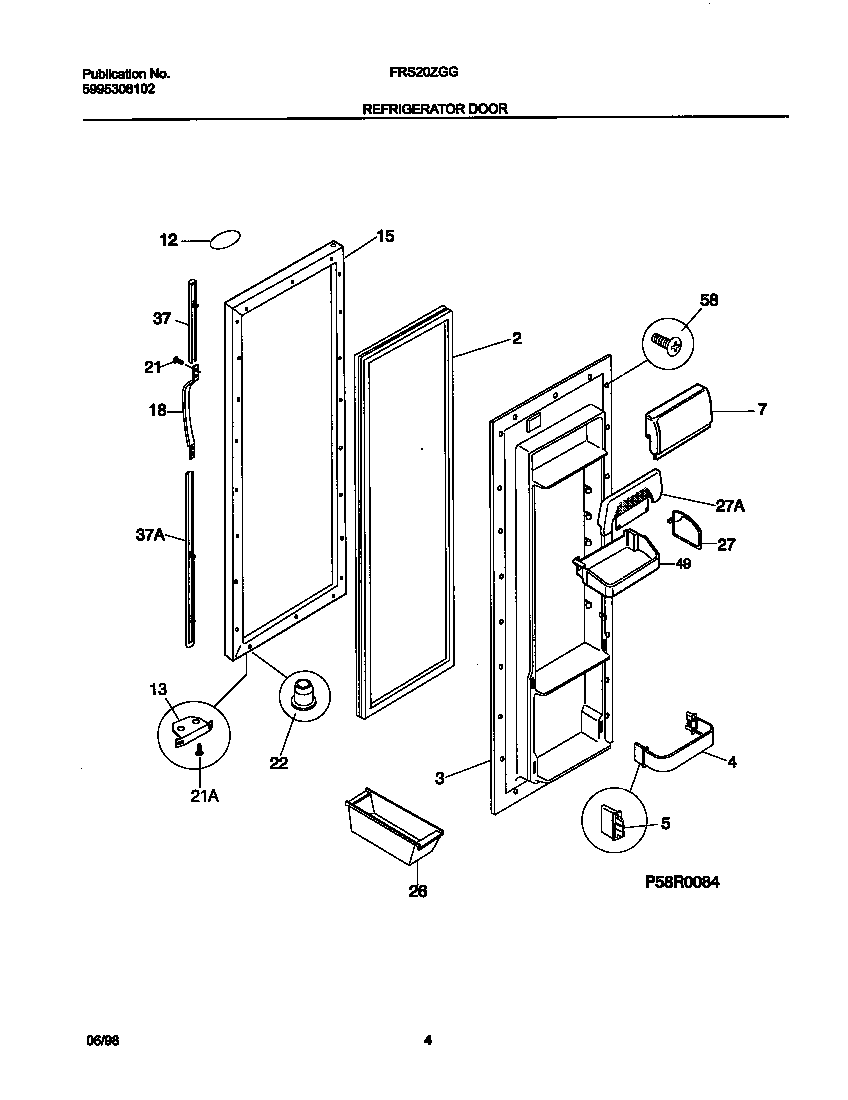

FRS20ZGGD1 03 – REFRIGERATOR DOOR

FRS20ZGGD1 03 – REFRIGERATOR DOOR

Written by

in

FRS20ZGGD1 03 – REFRIGERATOR DOOR

Products

PositionProduct
*57529INSULATION
*57524LABEL-NAMEPLATE,ALMOND
*57526TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*57527WCI 215782300
*57528WCI 215940700
2WCI 215734302
3WCI 218749301
4WCI 5303320230
5WCI 5303288950
7WCI 5303308347
12WCI 218364005
13WCI 5303289522
15WCI 5303917894
18WCI 218025204
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
21218843801 Frigidaire Refrigerator Screw
22WCI 5303289320
26WCI 3204522
27WCI 218714201
27SNUGGER-DOOR BIN, “PADDLE TYPE“, GALLON DOOR BIN
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37TRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
37WCI 218676003
49215441502 Frigidaire Refrigerator Door Bin
58Screw,No.10 pan hd ,8-18 x .5
