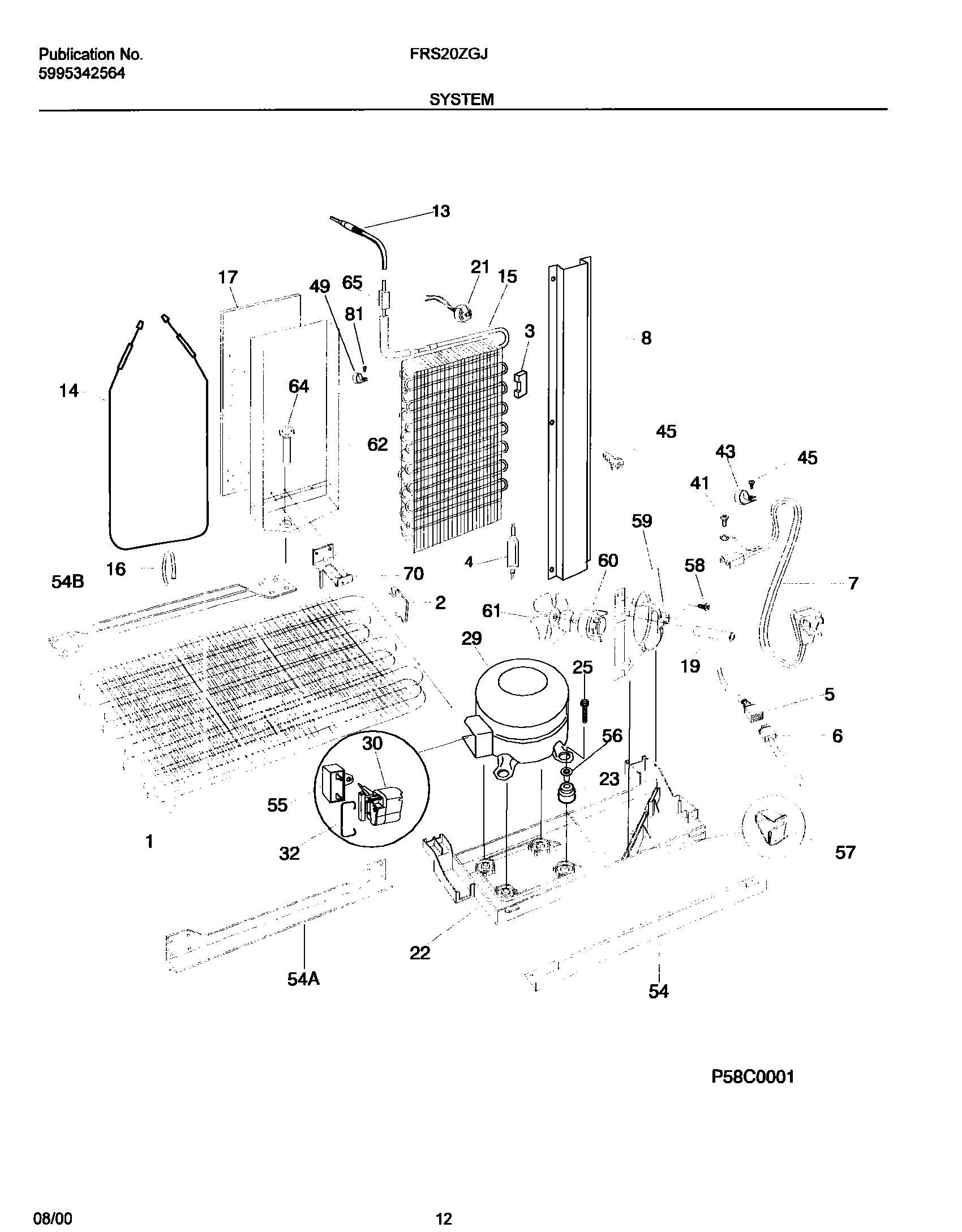

FRS20ZGJB1 13 – SYSTEM

Written by

Products

Position	Product
NI	WCI 5303917166
1	WCI 5304406721
1	SPACER-COND TUBE,BLACK
1	SPACER TUBE
1	WCI 218787700
2	WCI 5303289029
3	WCI 218679605
3	WCI 218679608
4	5303305677 Frigidaire Replacement Filter Dryer Filters
5	WIRING HARNESS,REFR CONTROLS
5	WIRING HARNESS,FRZR CONTROLS
5	WCI 218959901
6	WIRING HARNESS,MACHINE COMPT ,W/SNUBBER CAP.
7	WCI 215459201
8	WCI 218803400
13	WCI 215006701
14	218169804 Frigidaire Refrigerator Defrost Heater
15	WCI 218955801
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17	WCI 5304415968
19	WCI 218631200
21	297216600 Frigidaire Refrigerator Defrost Thermostat
22	WCI 218811100
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 218773500
29	5304475098 Frigidaire Refrigerator Compressor Kit
30	WCI 218721109
32	WCI 216649100
41	WCI 530800039
43	5308000133 Frigidaire Refrigerator Clamp
43	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455651 Frigidaire Refrigerator Screw
45	SCREW,HEX HD SER WSHR ,8-18 X 0.375
49	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54	WCI 215732700
54	WCI 5303289027
54B	WCI 5303289292
54A	WCI 5303289311
55	5304464438 Frigidaire Compressor Run Capacitor
55	WCI 218897001
56	WCI 218769300
57	WCI 218247300
58	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59	WCI 218956601
60	WCI 218956401
61	WCI 218956701
61	WCI 218956501
61	WCI 218956801
62	WCI 215048202
64	241957901 Frigidaire Refrigerator Tube-Drain
65	WCI 5303289301
70	WCI 5303289041
81	5304455650 Frigidaire Refrigerator Screw
