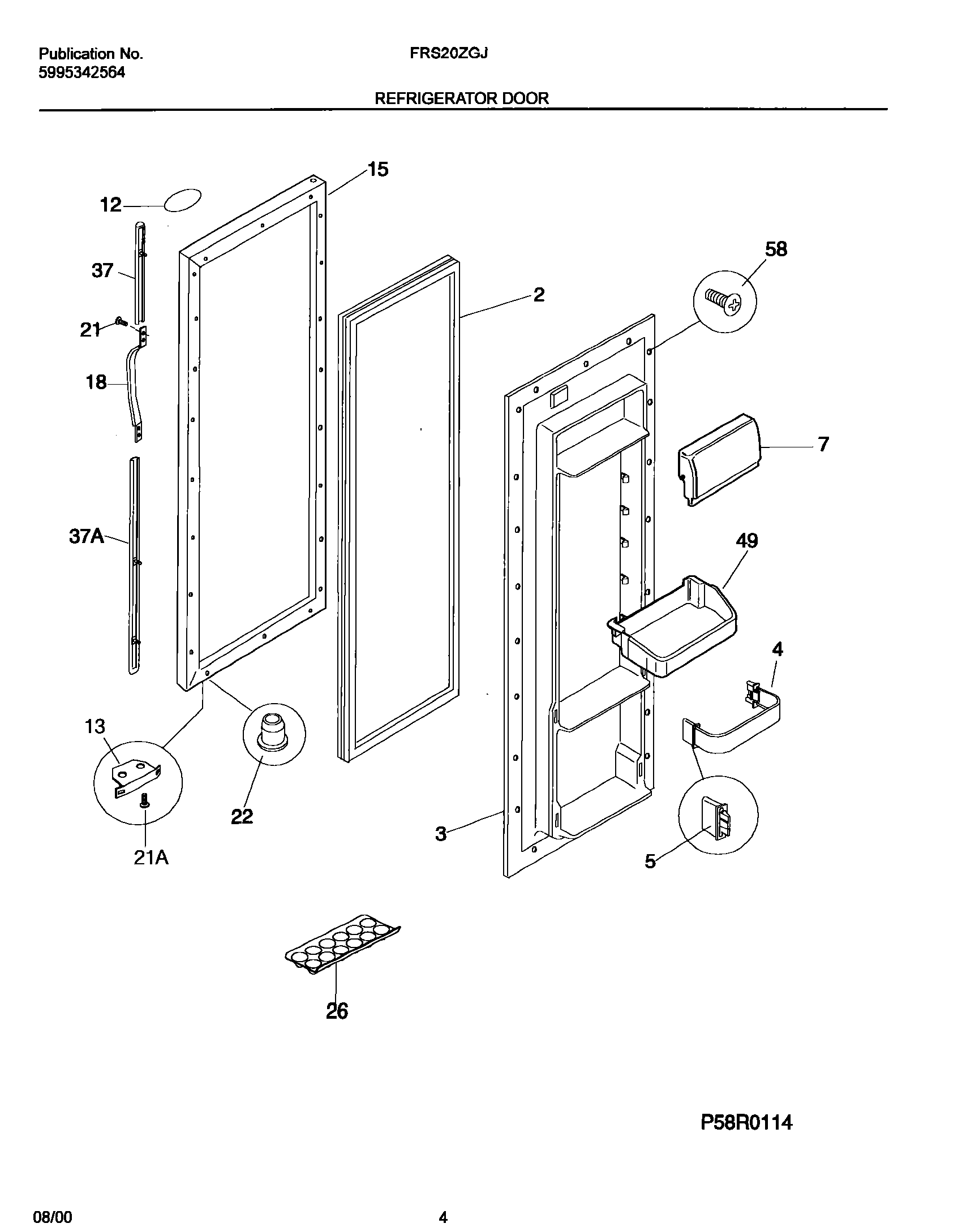

FRS20ZGJD1 05 – REFRIGERATOR DOOR

FRS20ZGJD1 05 – REFRIGERATOR DOOR

Written by

in

FRS20ZGJD1 05 – REFRIGERATOR DOOR

Products

PositionProduct
NIINSULATION
2WCI 215734312
3WCI 218749301
4WCI 218807016
5WCI 5303288950
7WCI 5303308347
12LABEL-NAMEPLATE,ALMOND
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12WCI 218364005
13WCI 5303289522
15WCI 5303917894
18WCI 218025204
21A218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
26215817806 Frigidaire Refrigerator Egg Tray
37AWCI 215782300
37TRIM-HANDLE,ALMOND ,UPPER ,W/DEC GOLD BAND,AND SNAP LOCK
37ATRIM-HANDLE,ALMOND ,LOWER ,W/DEC GOLD BAND,AND SNAP LOCK
37AWCI 215940700
37AWCI 218676003
49215441502 Frigidaire Refrigerator Door Bin
58218781101 Frigidaire Handle Screw
