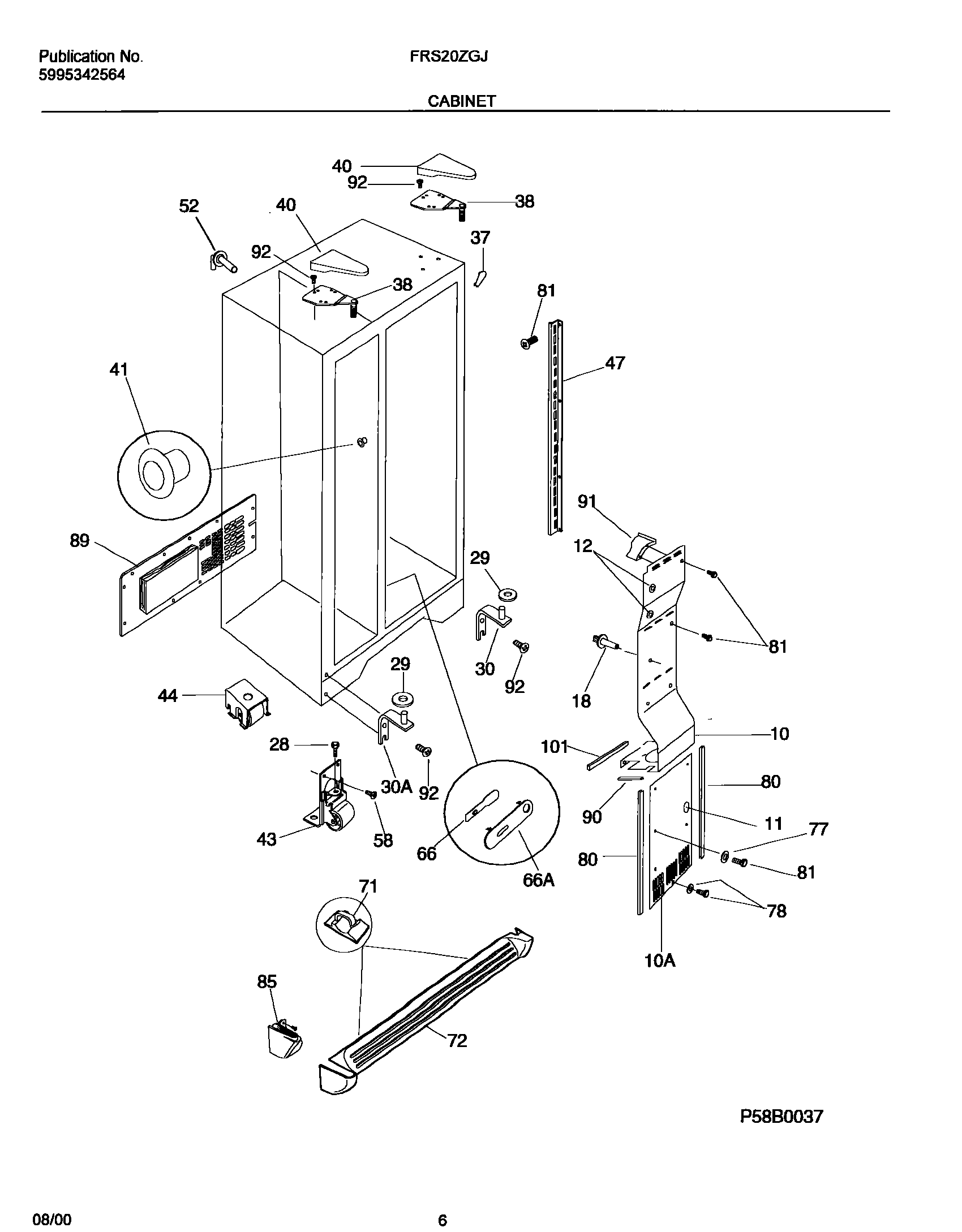

FRS20ZGJD1 07 – CABINET

FRS20ZGJD1 07 – CABINET

Written by

in

FRS20ZGJD1 07 – CABINET

Products

PositionProduct
NIWCI 218902101
NITOUCH, UP PAINT, ALMOND (NI)
10AWCI 218751303
10WCI 218748901
10NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
18SUPPORT-AIR DUCT CVR,1.83“ LONG
28WCI 5303289062
29WCI 215003200
29WCI 215314301
29WCI 218871201
30WCI 218993701
30AWCI 218979601
30WCI 218979701
30AWCI 218993901
37WCI 5303321082
38WCI 218215249
38WCI 218215251
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43WCI 218615300
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66AWCI 218171301
66WCI 215050201
71218515401 Frigidaire Refrigerator Clip
72WCI 218359614
77WASHER-NYLON,3/16 X 5/8 OD
78WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
785304455651 Frigidaire Refrigerator Screw
80WCI 218154003
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922703
89WCI 215741407
90WCI 5303322647
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
101WCI 218663103
101WCI 215305701
101WCI 218663102
