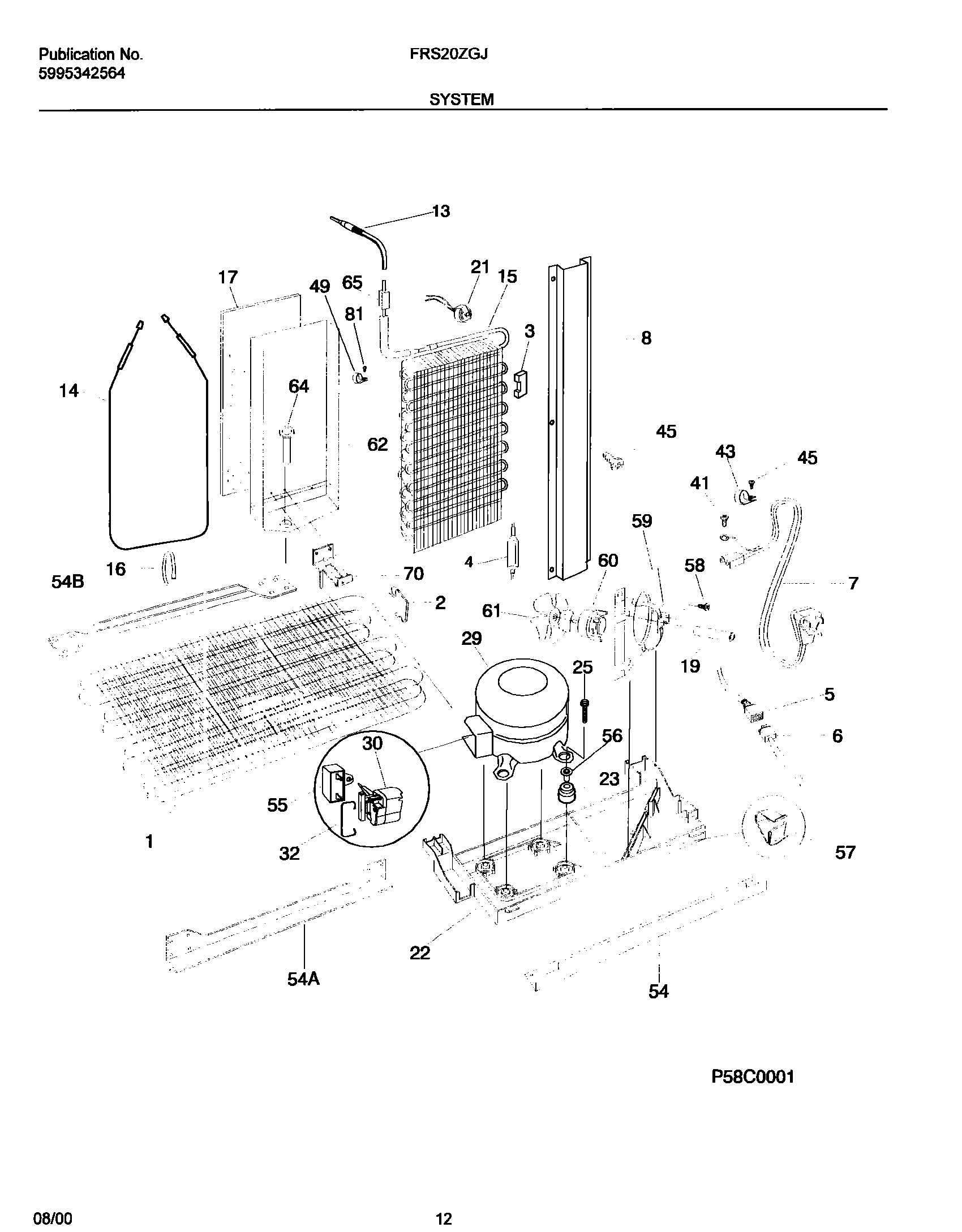

FRS20ZGJW1 13 – SYSTEM

FRS20ZGJW1 13 – SYSTEM

Written by

in

FRS20ZGJW1 13 – SYSTEM

Products

PositionProduct
NIWCI 5303917166
1WCI 5304406721
1SPACER-COND TUBE,BLACK
1SPACER TUBE
1WCI 218787700
2WCI 5303289029
3WCI 218679605
3WCI 218679608
45303305677 Frigidaire Replacement Filter Dryer Filters
5WIRING HARNESS,REFR CONTROLS
5WIRING HARNESS,FRZR CONTROLS
5WCI 218959901
6WIRING HARNESS,MACHINE COMPT ,W/SNUBBER CAP.
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169804 Frigidaire Refrigerator Defrost Heater
15WCI 218955801
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415968
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
41WCI 530800039
435308000133 Frigidaire Refrigerator Clamp
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
45SCREW,HEX HD SER WSHR ,8-18 X 0.375
49218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54WCI 215732700
54WCI 5303289027
54BWCI 5303289292
54AWCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
55WCI 218897001
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 218956601
60WCI 218956401
61WCI 218956701
61WCI 218956501
61WCI 218956801
62WCI 215048202
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
