FRS20ZGJW1 19 – ICE MAKER

FRS20ZGJW1 19 – ICE MAKER

Written by

in

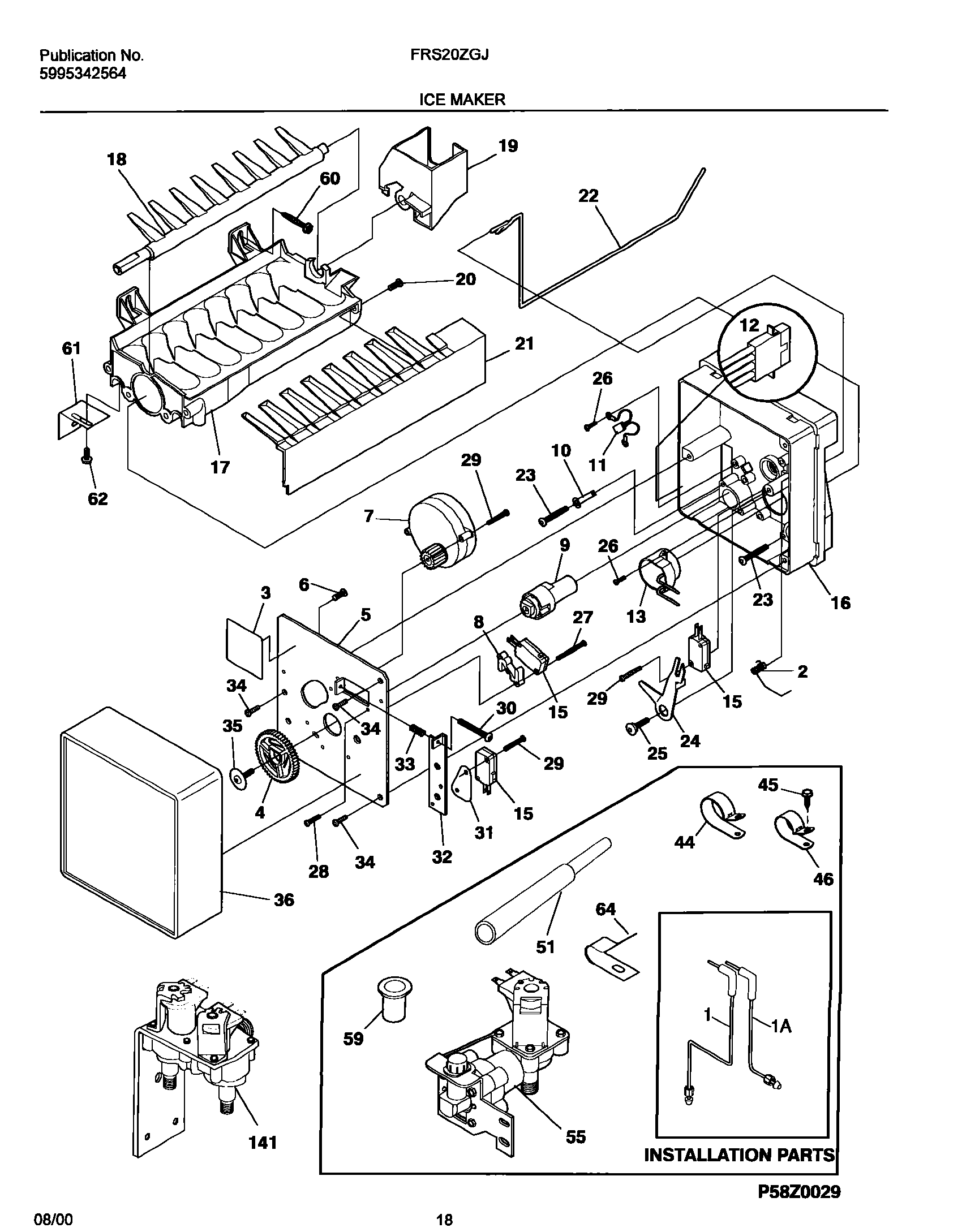

FRS20ZGJW1 19 – ICE MAKER

Products

PositionProduct
NI5303918277 Frigidaire Refrigerator Ice Maker Assembly
1AWCI 218859901
1WCI 218832302
2WCI 3206348
3Label,ID plate
45304469403 Frigidaire Gear
5WCI 3206303
6218359202 Frigidaire Refrigerator Screw
8SPACER-HOLD SWITCH
9WCI 3206313
10WCI 3206315
113206319 Frigidaire Refrigerator Thermal Cut-Off Assembly P1
12PLUG, “ONLY“
12HARNESS-WIRING, INTERNAL IM, WITH PLUG
13Thermostat Assy,ice maker
155304456667 Frigidaire Refrigerator Micro Switch
16WCI 3206326
17241798231 Frigidaire Refrigerator Ice Maker Assembly
18EJECTOR-ICE
19WCI 3206330
20WCI 5304408581
21ICE STRIPPER
22SHUT-OFF ARM
23SCREW,8-32 X 0.875 ,MOLD-TO-SUPPORT ,
245304456675 Frigidaire Refrigerator Lever Arm
25SCREW,8-18 X 0.562 ,LEVER ARM/SPRT
26SCREW-THERMO/SPRT, 4-24 X 3/8, (4)
27SCREW,4-40 X 1.000 ,HOLD SWITCH MTG ,
28Screw-timing stop`4-40 x 0.375
29SCREW,4-24 X 0.750 ,(6)
30SCREW-TIMING ADJ,8-32 X 1.000
31WCI 3206342
32WCI 3206343
33WCI 5304408583
34241679901 Frigidaire Refrigerator Screw
35WCI 5304408585
36COVER-ICE MAKER
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
465303001193 Frigidaire Refrigerator Clamp
51WCI 218947201
55240542901 Frigidaire Water Valve Cap
55218859701 Frigidaire Water Valve Single Solenoid
59WCI 5303001191
605304455852 Frigidaire Refrigerator Screw
61218721500 Frigidaire Refrigerator Bracket-Leveling
62240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
645304455846 Frigidaire Refrigerator Clamp
141Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
141218832401 Frigidaire Water Inlet Valve
