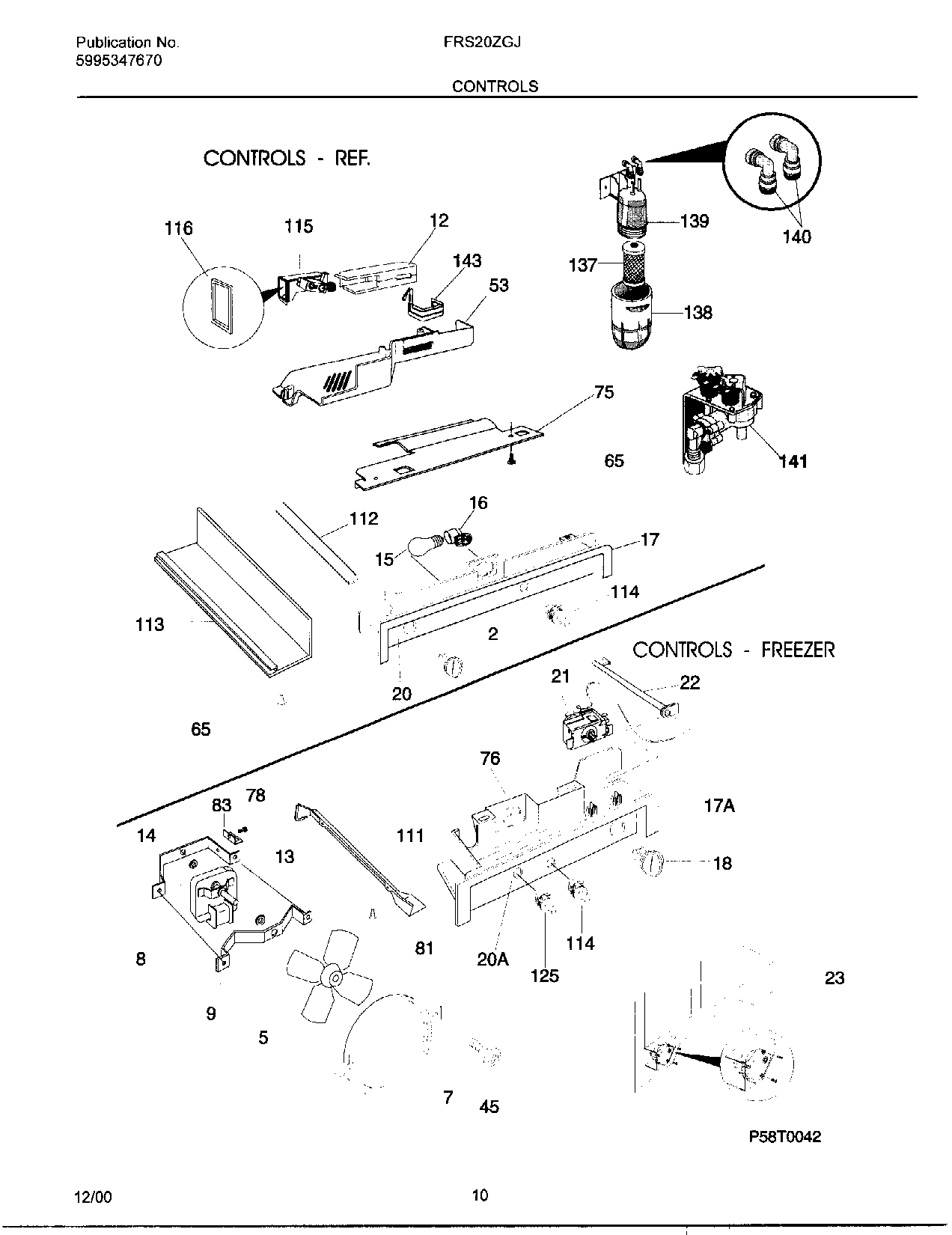

FRS20ZGJW2 10 – CONTROLS

FRS20ZGJW2 10 – CONTROLS

Written by

in

FRS20ZGJW2 10 – CONTROLS

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
NISHIELD-DEFROST TIMR,BTM
NIWCI 218731102
NI215474201 Frigidaire Refrigerator Washer
NICOVER-DEFROST TIMER, TOP
NINUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
NI218904301 Frigidaire Refrigerator O-Ring Cup P1
2WCI 5303307883
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5304414684
12WCI 215809600
13WCI 215426200
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17ASCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
17WCI 218468702
17AWCI 5303321928
18WCI 5303307882
20WCI 5303321927
20AWCI 5303322426
21WCI 5303300027
22WCI 5303319683
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
455304455651 Frigidaire Refrigerator Screw
53WCI 215809511
65WCI 5303001361
75WCI 218465101
76WCI 218225800
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
112WCI 215277101
113COVER – DMPR ROD EXT
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011503
116WCI 215011400
137WCI 218904602
138WCI 240370204
139WCI 218893201
140WCI 218518700
141218832401 Frigidaire Water Inlet Valve
141Screw-solenoid valve,hx hd-slot wshr ,12-24 x 3/4
143WCI 218696700
143WIRING HARNESS,FILTER HEATER
