FRS20ZRGB4 07 – CABINET

FRS20ZRGB4 07 – CABINET

Written by

in

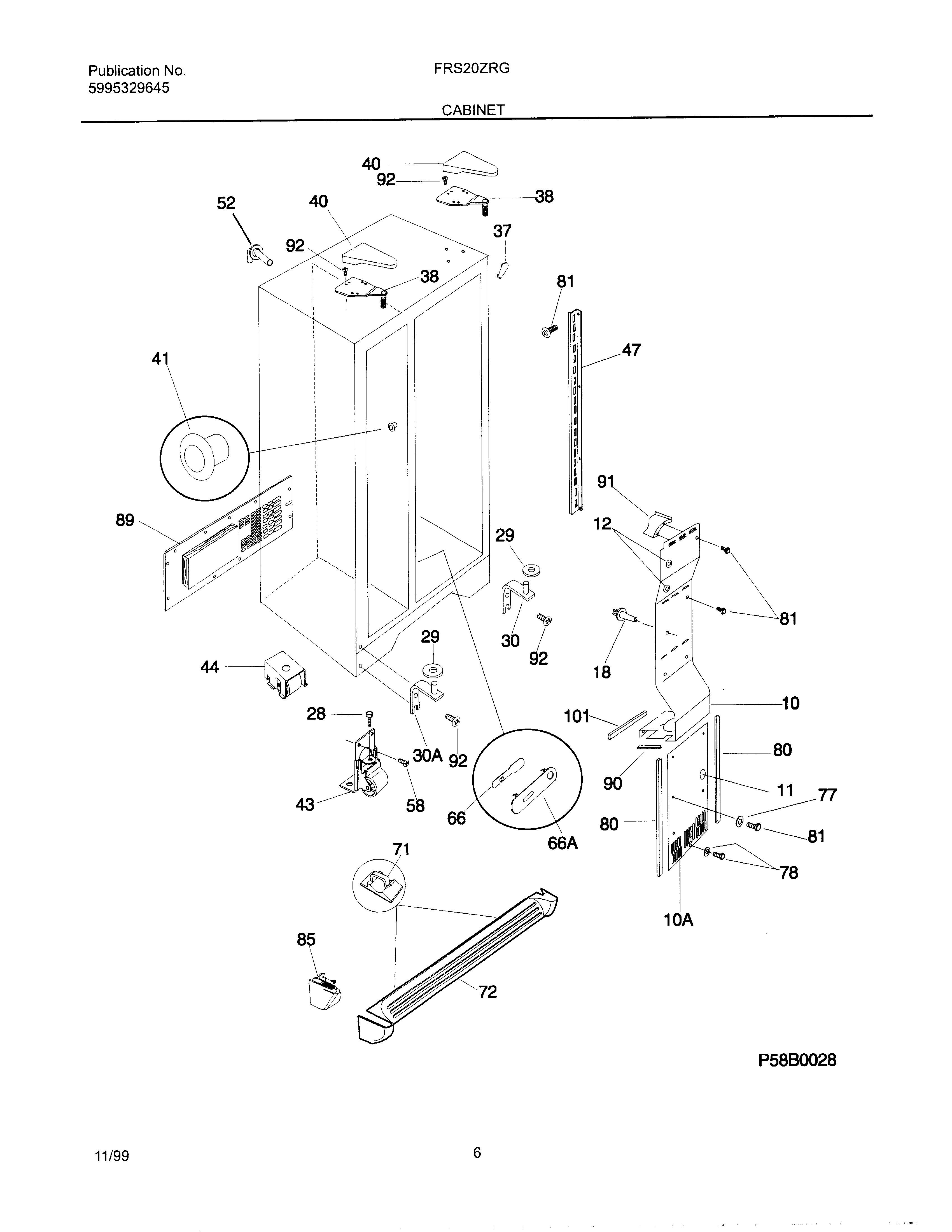

FRS20ZRGB4 07 – CABINET

Products

PositionProduct
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NIWASHER, .28 X .62 X .19, NYLON
NIPLUG, BUTTON, CABINET LINER (NI)
NIWCI 218902101
10AWCI 218751301
10WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 218748901
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18SUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
29WCI 215598900
29WCI 218871201
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
30AWCI 218730700
30WCI 218730800
37WCI 5303321083
38WCI 218215214
38WCI 218215216
40WCI 5303323268
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66AWCI 218171301
71218515401 Frigidaire Refrigerator Clip
72WCI 218359615
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922705
89WCI 215741407
90WCI 5303322647
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101WCI 215305701
101WCI 218663103
