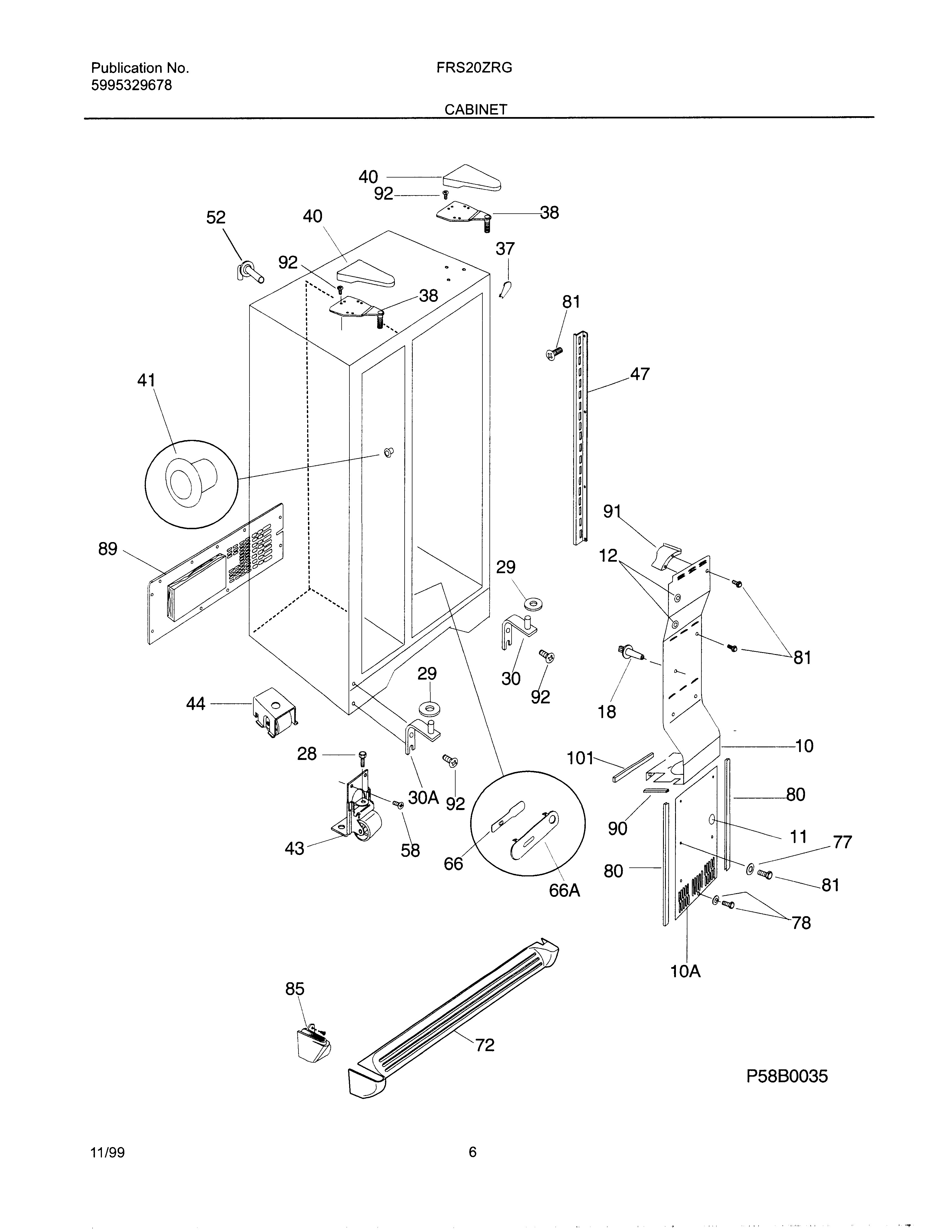

FRS20ZRGB6 07 – CABINET

FRS20ZRGB6 07 – CABINET

Written by

in

FRS20ZRGB6 07 – CABINET

Products

PositionProduct
NI5303321321 Frigidaire Refrigerator Black Touch-Up Paint
NIWCI 218902101
NIWASHER, .28 X .62 X .19, NYLON
NIPLUG, BUTTON, CABINET LINER (NI)
10WCI 218748901
10WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
18SUPPORT-AIR DUCT CVR,1.83“ LONG
28WCI 5303289062
29WCI 218871201
29WCI 215598900
29WCI 215314301
30AWCI 218730700
30WCI 218730800
30AWCI 215009000
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321083
37WCI 5303321081
38WCI 218215214
38WCI 218215213
38WCI 218215216
40WCI 5303323268
415304509705 Frigidaire Refrigerator Grommet
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66AWCI 218171301
66WCI 215050201
72WCI 218359615
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922705
89WCI 215741407
90WCI 5303322647
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101WCI 215305701
101WCI 218663103
